Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06

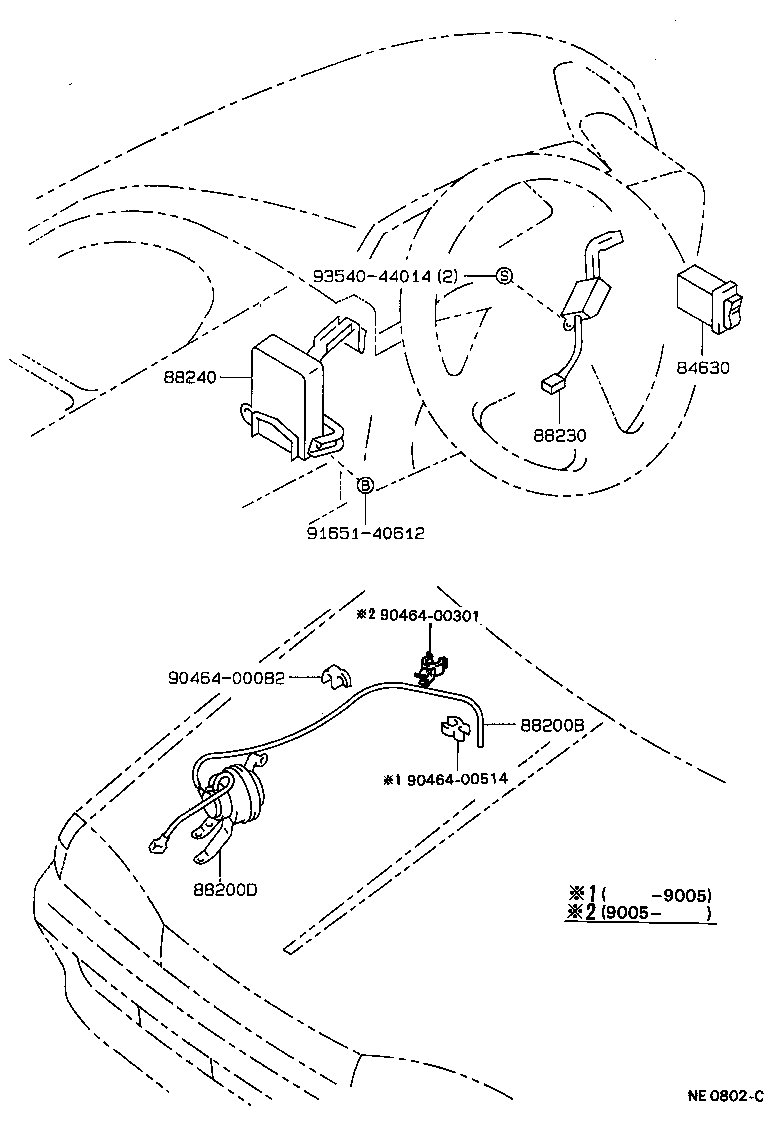

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

11 parts on this figure

Part number	Description	Fitment	Price
84630 — Switch Assy, Cruise Control Main
84630-20050	Switch Assy, Cruise Control Main 1988-05 → 1990-05 ended	ST170 SE,SX	¥7,800
84630-20130	Switch Assy, Cruise Control Main 1990-05 → 1992-11 ended	ST170 SE,SX	¥4,240
88200B — Hose, Cruise Control Vacuum
90999-92004 note	Hose, Cruise Control Vacuum 1988-05 → 1990-05 ended	ST170 SE,SX	¥890
90999-92004 note	Hose, Cruise Control Vacuum 1990-05 → 1992-11 ended	ST170 SE,SX	¥890
88200D — Actuator Assy, Cruise Control
88200-20041	Actuator Assy, Cruise Control 1988-05 → 1992-11 ended	ST170 SE,SX	¥56,600
88230 — Switch Assy, Cruise Control(AUTO DRIVE) Control
88230-20090	Switch Assy, Cruise Control(AUTO DRIVE) Control 1988-05 → 1990-05 ended	ST170 SE,SX	¥17,500
88230-20120	Switch Assy, Cruise Control(AUTO DRIVE) Control 1990-05 → 1992-11 ended	ST170 SE,SX	¥17,300
88230-20130 note	Switch Assy, Cruise Control(AUTO DRIVE) Control 1990-05 → 1992-08 ended	ST170 SE	¥17,300
88230-20130 note	Switch Assy, Cruise Control(AUTO DRIVE) Control 1990-05 → 1992-11 ended	ST170 SX	¥17,300
88240 — Computer Assy, Cruise Control
88240-20260	Computer Assy, Cruise Control 1988-05 → 1990-05 ended	ST170 SE,SX	¥56,200
88240-20390	Computer Assy, Cruise Control 1990-05 → 1992-11 ended	ST170 SE,SX	¥46,400

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
