Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

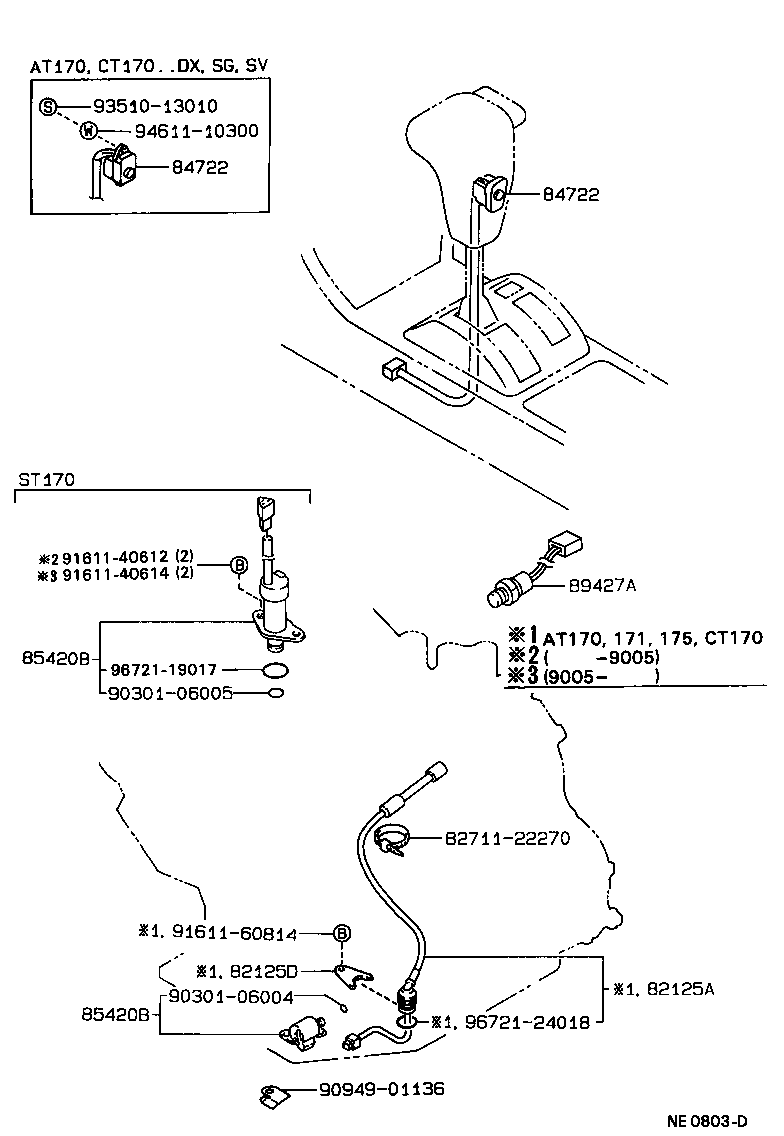

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82125A — Wire, Transmission | ||||
| 82125-20100 |
Wire, Transmission
1988-05 → 1990-05
ended
|
AT17#,CT17# 4FC (DX,S,SE,SG,SGEXT,SV) | ¥1,830 | |
| 82125-20170 |
Wire, Transmission
1990-05 → 1992-11
ended
|
AT17#,CT17# 4FC (DX,S,SE,SG,SGEXT,SV) | ¥1,840 | |
| 82125D — Plate, Transmission Wire Lock | ||||
| 33485-30020 |
Plate, Transmission Wire Lock
1988-05 → 1990-05
ended
|
AT17#,CT170 4FC | ¥160 | |
| 33485-30020 |
Plate, Transmission Wire Lock
1990-05 → 1992-11
ended
|
AT17#,CT17# 4FC | ¥160 | |
| 84722 — Switch, Transmission Control | ||||
| 84722-20060-01 note |
Switch, Transmission Control
1988-05 → 1990-05
ended
|
AT171 4FC GLIM | ¥5,500 | |
| 84722-20060-03 note |
Switch, Transmission Control
1988-07 → 1990-05
ended
|
AT17#,CT17#,ST170 4FC (DX,S,SE,SG,SGEXT,SV,SX) | ¥5,500 | |
| 84722-20060-03 note |
Switch, Transmission Control
1990-05 → 1992-11
ended
|
AT17#,CT17#,ST170 4FC | ¥5,500 | |
| 84722-20060-03 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT170 4FC SG | ¥5,500 | |
| 84722-20060-03 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT17#,CT170,ST170 4FC (S,SE,SGEXT,SX) | ¥5,500 | |
| 84722-20060-04 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT17#,CT170,ST170 4FC (S,SE,SGEXT) | ¥5,500 | |
| 84722-20060-04 note |
Switch, Transmission Control
1988-07 → 1990-05
ended
|
AT17#,CT170,ST170 4FC (S,SE,SG,SGEXT) | ¥5,500 | |
| 84722-20060-04 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT170 4FC SG | ¥5,500 | |
| 84722-20060-06 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT17#,CT170,ST170 4FC (S,SE,SGEXT,SX) | ¥5,500 | |
| 84722-20060-06 note |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT170 4FC SG | ¥5,500 | |
| 84722-20060-06 note |
Switch, Transmission Control
1990-05 → 1992-11
ended
|
AT17#,CT170,ST170 4FC (S,SE,SG,SGEXT,SX) | ¥5,500 | |
| 84722-20060-06 note |
Switch, Transmission Control
1988-07 → 1990-05
ended
|
AT170 4FC (SE,SG,SV);AT171,175,CT17#,ST170 4FC +1 | ¥5,500 | |
| 84722-20060-14 note |
Switch, Transmission Control
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 4FC (S,SE,SG,SGEXT) | ¥5,500 | |
| 84722-32010 |
Switch, Transmission Control
1988-05 → 1988-07
ended
|
AT170,CT170 4FC (DX,SG,SV) | ¥5,900 | |
| 85420B — Solenoid Assy, Transmission | ||||
| 85420-10010 |
Solenoid Assy, Transmission
1988-05 → 1988-11
ended
|
AT17#,CT170 4FC (DX,S,SE,SG,SGEXT,SV) | ¥16,300 | |
| 85420-10011 |
Solenoid Assy, Transmission
1988-11 → 1992-11
ended
|
AT17#,CT17# 4FC (DX,S,SE,SG,SGEXT,SV) | ¥16,100 | |
| 85420-20100 |
Solenoid Assy, Transmission
1990-05 → 1992-11
ended
|
ST170 4FC | ¥7,900 | |
| 85420-32081 |
Solenoid Assy, Transmission
1988-05 → 1990-05
ended
|
ST170 4FC | ¥16,900 | |
| 89427A — Switch, Temperature | ||||
| 89427-12070 |
Switch, Temperature
1988-05 → 1990-05
ended
|
ST170 4FC | ¥5,300 | |
| 89427-12090 |
Switch, Temperature
1988-05 → 1990-05
ended
|
AT170,175 4FC | ¥5,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
