Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

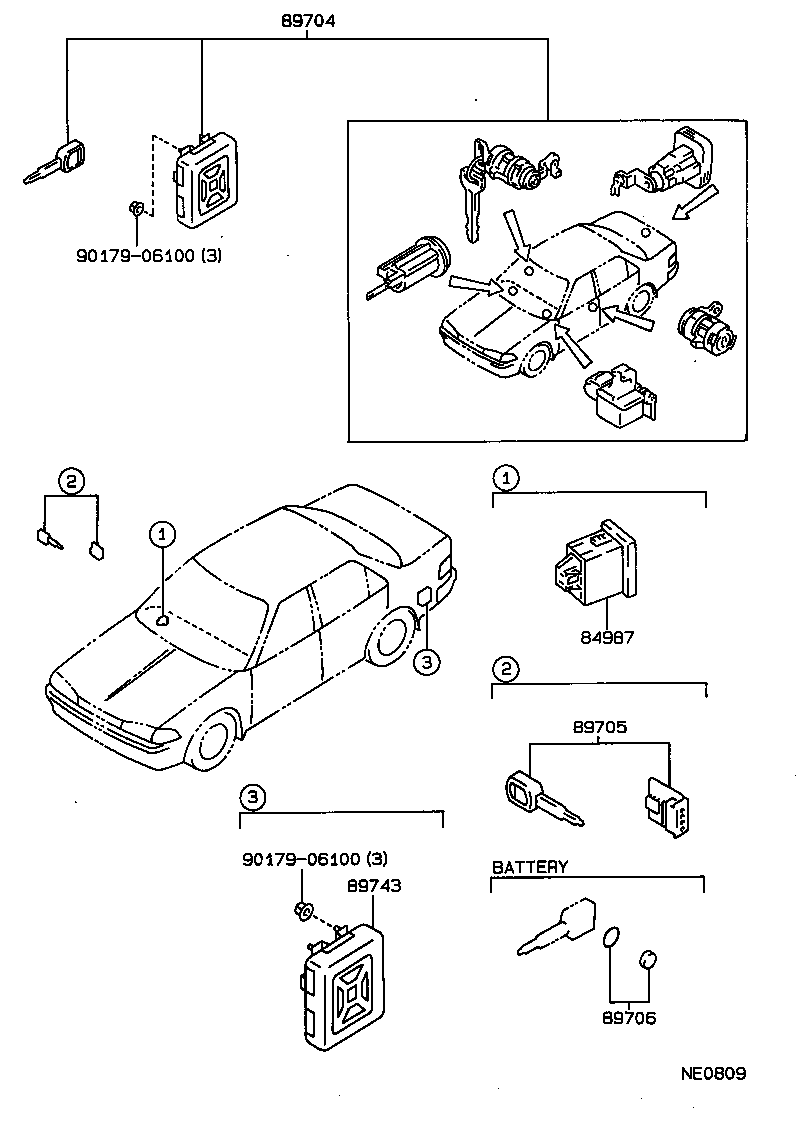

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84987 — Switch, Wireless Door Lock Main | ||||
| 84987-20010 |
Switch, Wireless Door Lock Main
1990-05 → 1992-08
ended
|
ST170 SE | ¥4,460 | |
| 84987-20010 |
Switch, Wireless Door Lock Main
1988-05 → 1992-08
ended
|
ST170 SE CI;AT17#,CT170 GLIM,SE | ¥4,460 | |
| 89704 — Control Set, Wireless Door Lock | ||||
| 89704-20050 |
Control Set, Wireless Door Lock
1988-05 → 1988-08
ended
|
AT171 GLIM | ¥101,000 | |
| 89704-20050 |
Control Set, Wireless Door Lock
1988-05 → 1988-08
ended
|
AT170,CT170,ST170 SE | ¥101,000 | |
| 89704-20050 |
Control Set, Wireless Door Lock
1988-08 → 1990-05
ended
|
CT170 SE | ¥101,000 | |
| 89704-20050 |
Control Set, Wireless Door Lock
1988-08 → 1990-05
ended
|
AT170,171,ST170 GLIM,SE | ¥101,000 | |
| 89704-20051 |
Control Set, Wireless Door Lock
1990-05 → 1990-12
ended
|
CT170 SE | ¥103,000 | |
| 89704-20051 |
Control Set, Wireless Door Lock
1990-05 → 1990-12
ended
|
AT17#,ST170 GLIM,SE | ¥103,000 | |
| 89704-20052 |
Control Set, Wireless Door Lock
1990-12 → 1992-08
ended
|
CT170 SE | ¥102,000 | |
| 89704-20052 |
Control Set, Wireless Door Lock
1990-12 → 1992-08
ended
|
AT17#,ST170 GLIM,SE | ¥102,000 | |
| 89704-20060 note |
Control Set, Wireless Door Lock
1988-05 → 1988-08
ended
|
AT171 GLIM | ¥101,000 | |
| 89704-20060 note |
Control Set, Wireless Door Lock
1988-08 → 1990-05
ended
|
AT170,171,ST170 GLIM,SE | ¥101,000 | |
| 89704-20061 note |
Control Set, Wireless Door Lock
1990-05 → 1990-12
ended
|
AT17#,ST170 GLIM,SE | ¥103,000 | |
| 89704-20062 note |
Control Set, Wireless Door Lock
1990-12 → 1992-08
ended
|
AT17#,ST170 GLIM,SE | ¥102,000 | |
| 89705 — Transmitter, Door Control | ||||
| 89705-20020 |
Transmitter, Door Control
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥32,200 | |
| 89706 — Battery Set, Transmitter | ||||
| 89706-30010 |
Battery Set, Transmitter
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥700 | |
| 89743 — Receiver, Door Control | ||||
| 89743-20010 |
Receiver, Door Control
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥47,300 | |
| 89743-20030 note |
Receiver, Door Control
1988-05 → 1988-08
ended
|
AT171 GLIM | ¥47,300 | |
| 89743-20030 note |
Receiver, Door Control
1988-08 → 1990-05
ended
|
AT170,171,ST170 GLIM,SE | ¥47,300 | |
| 89743-20030 note |
Receiver, Door Control
1990-05 → 1992-08
ended
|
AT17#,ST170 GLIM,SE | ¥47,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
