Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

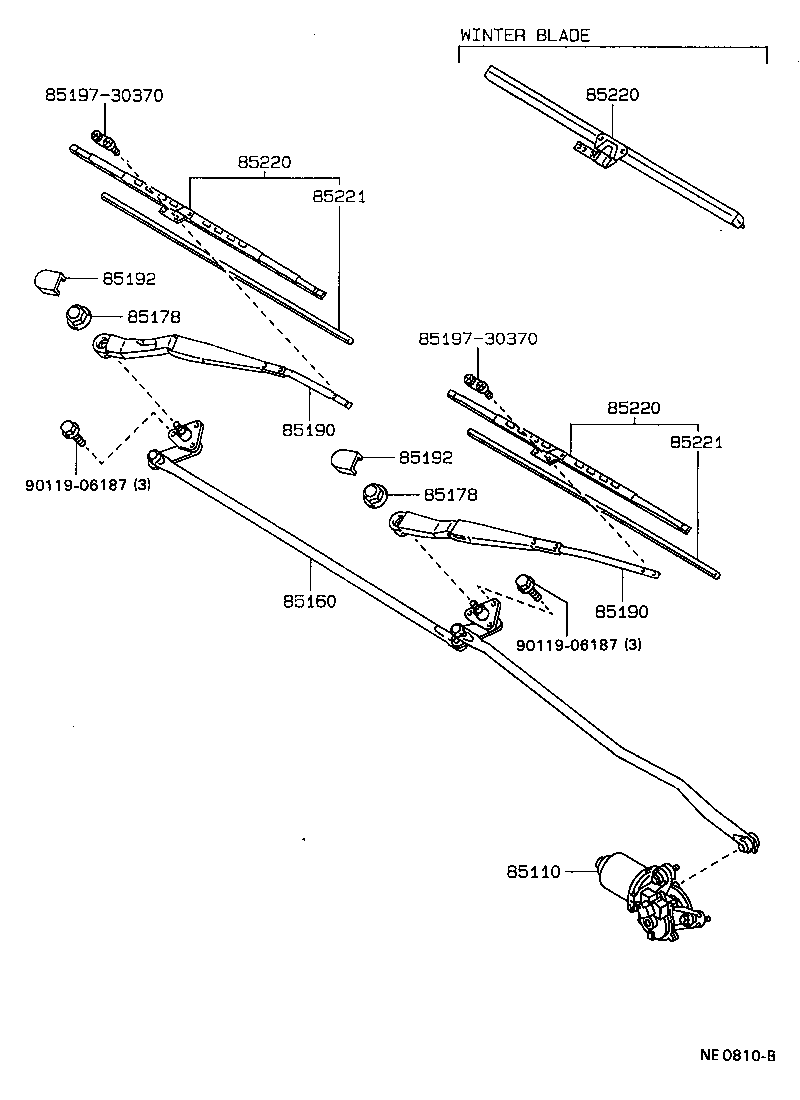

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-20480 |
Motor Assy, Windshield Wiper
1988-05 → 1989-03
ended
|
AT17#,CT17#,ET176,ST170 | ¥27,300 | |
| 85110-20481 |
Motor Assy, Windshield Wiper
1989-03 → 1991-01
ended
|
AT17#,CT17#,ET176,ST170 | ¥26,000 | |
| 85110-20482 |
Motor Assy, Windshield Wiper
1991-01 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥26,000 | |
| 85110-20490 note |
Motor Assy, Windshield Wiper
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥27,400 | |
| 85110-20490 note |
Motor Assy, Windshield Wiper
1990-05 → 1991-01
ended
|
AT17#,CT17#,ET176,ST170 | ¥27,400 | |
| 85110-20491 note |
Motor Assy, Windshield Wiper
1991-01 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥26,500 | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-20640 |
Link Assy, Windshield Wiper
1990-03 → 1991-01
ended
|
AT17#,CT17#,ET176,ST170 | ¥11,400 | |
| 85150-20641 |
Link Assy, Windshield Wiper
1991-01 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥11,200 | |
| 85160-20350 |
Link Assy, Windshield Wiper
1988-05 → 1990-03
ended
|
AT17#,CT17#,ET176,ST170 | ¥10,600 | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
Nut (FOR FRONT WIPER ARM SETTING)
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥120 | |
| 85190 — Arm Assy, Windshield Wiper | ||||
| 85190-20610 note |
Arm Assy, Windshield Wiper
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥4,460 | |
| 85190-20611 note |
Arm Assy, Windshield Wiper
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥4,420 | |
| 85210-20210 note |
Arm Assy, Windshield Wiper
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥4,460 | |
| 85210-20211 note |
Arm Assy, Windshield Wiper
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥4,420 | |
| 85192 — Cover, Windshield Wiper Arm | ||||
| 85192-12800 |
Cover, Windshield Wiper Arm
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥270 | |
| 85220 — Blade Assy, Windshield Wiper | ||||
| 85220-16580 note |
Blade Assy, Windshield Wiper
1988-05 → 1990-03
ended
|
AT17#,CT17#,ET176,ST170 | ¥3,800 | |
| 85220-16750 note |
Blade Assy, Windshield Wiper
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 85220-1A121 note |
Blade Assy, Windshield Wiper
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥2,510 | |
| 85220-32550 note |
Blade Assy, Windshield Wiper
1988-05 → 1990-03
ended
|
AT17#,CT17#,ET176,ST170 | ¥5,100 | |
| 85220-32690 note |
Blade Assy, Windshield Wiper
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥3,040 | |
| 85220-3A211 note |
Blade Assy, Windshield Wiper
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥3,040 | |
| 85291-16010 note |
Blade Assy, Windshield Wiper
1990-03 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥3,930 | |
| 85291-32030 note |
Blade Assy, Windshield Wiper
1990-03 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥5,200 | |
| 85221 — Blade, Windshield Wiper | ||||
| 85213-17040 note |
Blade, Windshield Wiper
1990-03 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥750 | |
| 85221-12200 note |
Blade, Windshield Wiper
1989-11 → 1990-03
ended
|
AT17#,CT17#,ET176,ST170 | ¥750 | |
| 85221-12200 note |
Blade, Windshield Wiper
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥750 | |
| 85221-12240 note |
Blade, Windshield Wiper
1989-11 → 1990-03
ended
|
AT17#,CT17#,ET176,ST170 | ¥670 | |
| 85221-12240 note |
Blade, Windshield Wiper
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥670 | |
| 85221-20130 note |
Blade, Windshield Wiper
1988-05 → 1989-11
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 85221-20140 note |
Blade, Windshield Wiper
1988-05 → 1989-11
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 85223-22700 note |
Blade, Windshield Wiper
1990-03 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
