Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

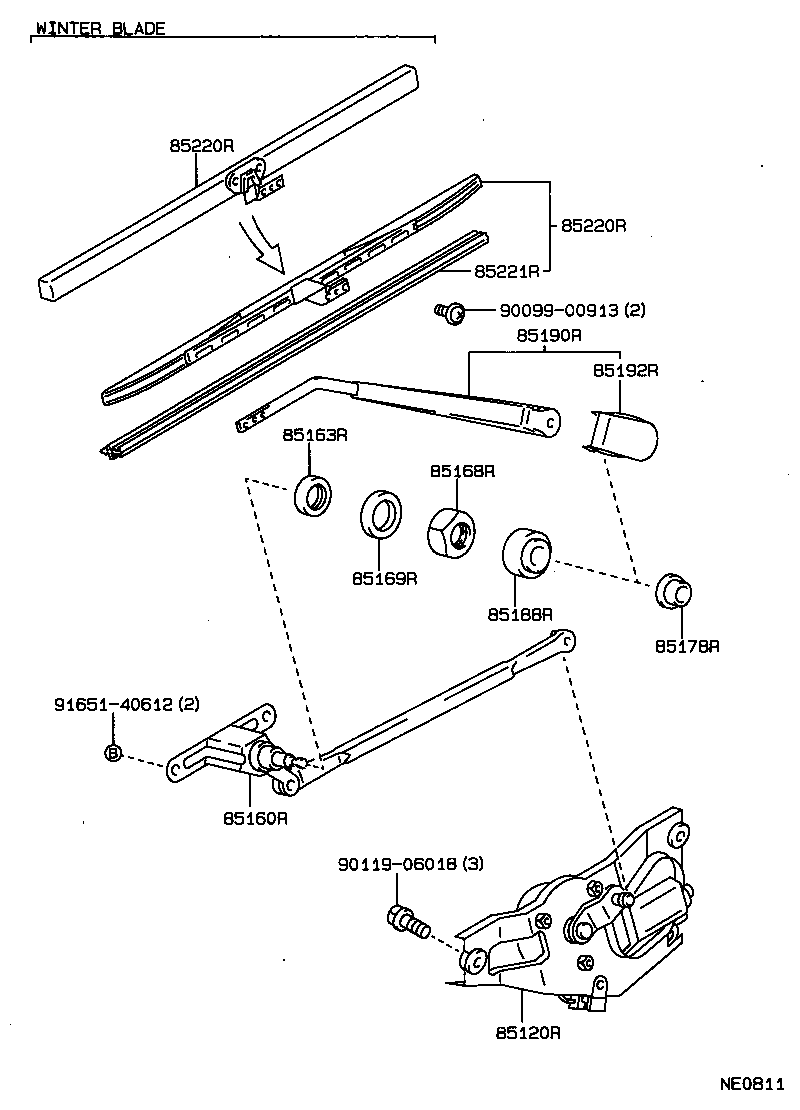

Exploded illustration NE0811 85220R — BLADE ASSY, REAR WIPER (13 parts) 85220R — BLADE ASSY, REAR WIPER (13 parts) 85221R — BLADE, REAR WIPER (5 parts) 9009900913 — not listed in this catalogue 85190R — ARM ASSY, REAR WIPER (5 parts) 85192R — COVER, REAR WIPER ARM (1 parts) 85163R — PACKING, REAR WIPER PIVOT, NO.1 (1 parts) 85168R — NUT, REAR WIPER LINK PIVOT, NO.1 (1 parts) 85169R — WASHER, REAR WIPER LINK PIVOT, NO.1 (1 parts) 85188R — CAP, REAR WIPER PIVOT, NO.1 (1 parts) 85178R — NUT (FOR REAR WIPER ARM SETTING) (4 parts) 9165140612 — not listed in this catalogue 85160R — LINK ASSY, REAR WIPER (1 parts) 9011906018 — not listed in this catalogue 85120R — MOTOR AND BRACKET ASSY, REAR WIPER (1 parts)
NE0811 · 12 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
85120R — Motor And Bracket Assy, Rear Wiper
85120-95500 Motor And Bracket Assy, Rear Wiper
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥21,000
85160R — Link Assy, Rear Wiper
85160-91C02 Link Assy, Rear Wiper
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥7,400
85163R — Packing, Rear Wiper Pivot, NO.1
85174-12320 Packing, Rear Wiper Pivot, NO.1
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG —
85168R — Nut, Rear Wiper Link Pivot, NO.1
90099-05141 Nut, Rear Wiper Link Pivot, NO.1
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥100
85169R — Washer, Rear Wiper Link Pivot, NO.1
90099-01458 Washer, Rear Wiper Link Pivot, NO.1
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG —
85178R — Nut (FOR REAR WIPER ARM SETTING)
90176-06019 Nut (FOR REAR WIPER ARM SETTING)
1990-05 → 1992-11 ended
ST170 SX ¥90
90176-06019 note Nut (FOR REAR WIPER ARM SETTING)
1990-05 → 1992-11 ended
AT170,CT170 SV ¥90
90179-06158 Nut (FOR REAR WIPER ARM SETTING)
1988-05 → 1992-11 ended
AT170,CT176,ET176,ST170 (VAN,WG) (CBR,CI,DSL) ¥70
90179-06158 Nut (FOR REAR WIPER ARM SETTING)
1990-05 → 1992-11 ended
AT170,CT170 SV ¥70
85188R — Cap, Rear Wiper Pivot, NO.1
85178-12320 Cap, Rear Wiper Pivot, NO.1
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG —
85190R — Arm Assy, Rear Wiper
85190-95502 Arm Assy, Rear Wiper
1988-05 → 1990-05 ended
AT170,CT176,ET176,ST170 VAN,WG ¥2,960
85190-95503 Arm Assy, Rear Wiper
1990-05 → 1992-11 ended
CT176,ET176 ¥2,960
85190-95503 Arm Assy, Rear Wiper
1990-05 → 1992-11 ended
AT170,CT170 SV ¥2,960
85241-21010 Arm Assy, Rear Wiper
1990-05 → 1992-11 ended
ST170 SX ¥2,960
85241-21010 note Arm Assy, Rear Wiper
1990-05 → 1992-11 ended
AT170,CT170 SV ¥2,960
85192R — Cover, Rear Wiper Arm
85192-13060 Cover, Rear Wiper Arm
1988-05 → 1992-11 ended
ST170 SX CI;AT170,CT17#,ET176 VAN,WG ¥440
85220R — Blade Assy, Rear Wiper
85220-22610 Blade Assy, Rear Wiper
1988-05 → 1990-05 ended
CT176,ET176,ST170 SG,SX ¥2,090
85220-22610 Blade Assy, Rear Wiper
1988-05 → 1990-05 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) ¥2,090
85220-22611 Blade Assy, Rear Wiper
1990-05 → 1992-11 ended
CT176,ET176,ST170 SG,SX ¥2,090
85220-22611 Blade Assy, Rear Wiper
1990-05 → 1992-11 ended
CT176,ET176 DX,STD ¥2,090
85220-22611 Blade Assy, Rear Wiper
1990-05 → 1992-11 ended
AT170,CT170 SV ¥2,090
85220-95800 note Blade Assy, Rear Wiper
1988-05 → 1990-03 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) ¥2,530
85220-95800 note Blade Assy, Rear Wiper
1988-05 → 1990-03 ended
CT176,ET176,ST170 SG,SX ¥2,530
85291-21010 note Blade Assy, Rear Wiper
1990-05 → 1992-02 ended
AT170,CT170 SV ¥2,660
85291-21010 note Blade Assy, Rear Wiper
1990-03 → 1992-02 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) (CBR,DSL) ¥2,660
85291-21010 note Blade Assy, Rear Wiper
1990-03 → 1992-02 ended
CT176,ET176,ST170 SG,SX ¥2,660
85291-21020 note Blade Assy, Rear Wiper
1992-02 → 1992-11 ended
AT170,CT170 SV ¥2,190
85291-21020 note Blade Assy, Rear Wiper
1992-02 → 1992-11 ended
CT176,ET176 DX,STD ¥2,190
85291-21020 note Blade Assy, Rear Wiper
1992-02 → 1992-11 ended
CT176,ET176,ST170 SG,SX ¥2,190
85221R — Blade, Rear Wiper
85221-87002 Blade, Rear Wiper
1988-05 → 1990-11 ended
AT170,CT176,ET176,ST170 (VAN,WG) (CBR,CI,DSL) ¥640
85221-87002 Blade, Rear Wiper
1990-05 → 1990-11 ended
AT170,CT170 SV ¥640
85221-87002 Blade, Rear Wiper
1990-11 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥640
85221-87003 Blade, Rear Wiper
1990-05 → 1990-11 ended
ST170 SX ¥580
85221-87003 note Blade, Rear Wiper
1990-05 → 1990-11 ended
AT170,CT170 SV ¥580
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
