Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

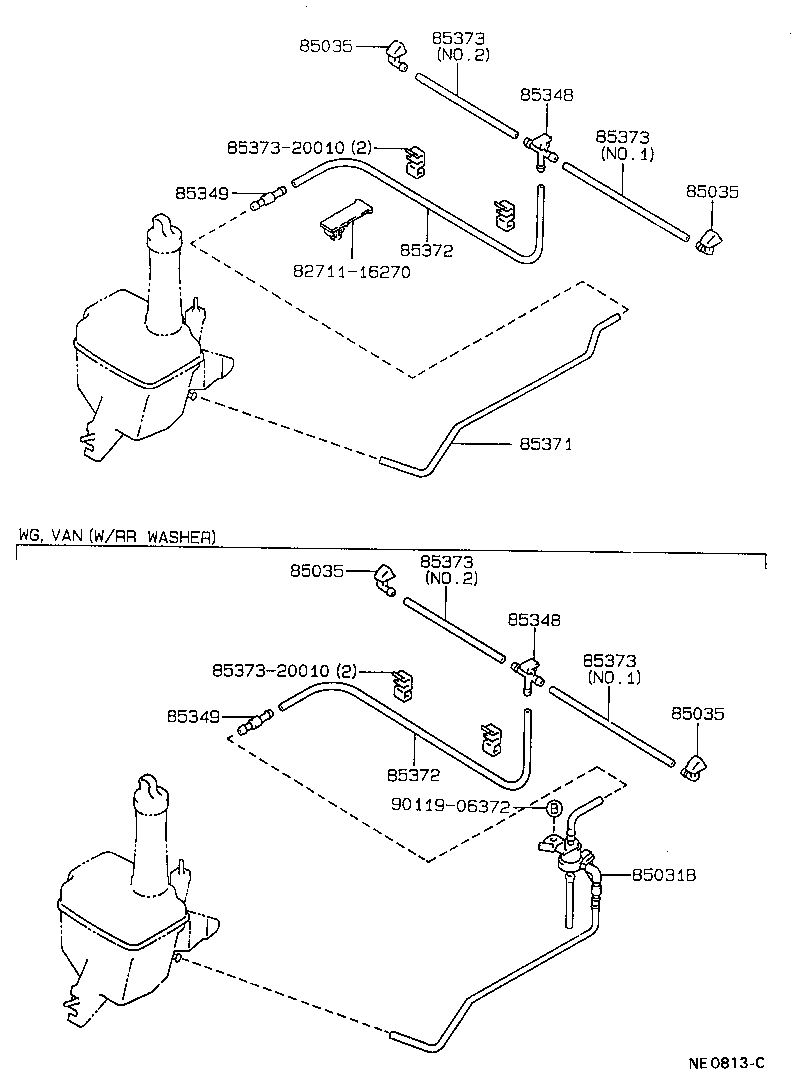

Exploded illustration NE0813C 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (9 parts) 85035 — NOZZLE SUB-ASSY, WASHER (2 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (9 parts) 8537320010 — not listed in this catalogue 85035 — NOZZLE SUB-ASSY, WASHER (2 parts) 85349 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (2 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (15 parts) 8271116270 — not listed in this catalogue 85371 — HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (9 parts) 85035 — NOZZLE SUB-ASSY, WASHER (2 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (9 parts) 8537320010 — not listed in this catalogue 85035 — NOZZLE SUB-ASSY, WASHER (2 parts) 85349 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (2 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (15 parts) 9011906372 — not listed in this catalogue 85031B — VALVE SUB-ASSY, WASHER (9 parts)
NE0813C · 16 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
85031B — Valve Sub-assy, Washer
85031-20050 Valve Sub-assy, Washer
1988-08 → 1989-08 ended
CT176,ET176,ST170 SG,SX ¥3,970
85031-20050 Valve Sub-assy, Washer
1988-08 → 1989-08 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) ¥3,970
85031-20050 Valve Sub-assy, Washer
1988-05 → 1988-08 ended
AT170,CT176,ET176,ST170 VAN,WG ¥3,970
85031-20051 Valve Sub-assy, Washer
1989-08 → 1990-03 ended
CT176 SG;CT176 5F DX;AT170,ET176,ST170 +1 ¥3,990
85031-20051 Valve Sub-assy, Washer
1989-11 → 1990-03 ended
CT176 4FC DX ¥3,990
85321-20131 Valve Sub-assy, Washer
1990-03 → 1990-05 ended
CT176 4FC DX ¥3,950
85321-20131 Valve Sub-assy, Washer
1990-03 → 1990-05 ended
CT176 SG;CT176 5F DX;AT170,ET176,ST170 +1 ¥3,950
85321-20131 Valve Sub-assy, Washer
1990-05 → 1992-11 ended
CT176,ET176,ST170 SG,SX ¥3,950
85321-20131 Valve Sub-assy, Washer
1990-05 → 1992-11 ended
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) ¥3,950
85035 — Nozzle Sub-assy, Washer
85035-20260 note Nozzle Sub-assy, Washer
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 —
85035-20270 note Nozzle Sub-assy, Washer
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 —
85348 — Joint, Windshield Washer Hose, NO.1
85348-20400 Joint, Windshield Washer Hose, NO.1
1990-07 → 1992-11 ended
CT170 SV;AT17#,CT176,ET176,ST170 —
85348-20400 Joint, Windshield Washer Hose, NO.1
1988-05 → 1990-07 ended
AT17#,CT17#,ET176,ST170 —
85349 — Joint, Windshield Washer Hose, NO.1
85349-89122 Joint, Windshield Washer Hose, NO.1
1988-05 → 1990-07 ended
AT17#,CT17#,ET176,ST170 —
85349-89122 Joint, Windshield Washer Hose, NO.1
1990-07 → 1992-11 ended
CT170 SV;AT17#,CT176,ET176,ST170 —
85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT)
90446-07001 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1988-05 → 1990-07 ended
CT176,ET176 DX,STD;AT17#,CT170,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
90446-07001 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1990-07 → 1992-11 ended
CT17#,ET176 DX,STD,SV;AT17#,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1989-08 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-07 → 1992-11 ended
CT17#,ET176 DX,STD,SV;AT17#,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-05 → 1992-11 ended
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-05 → 1992-11 ended
CT176,ET176,ST170 SG,SX —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-05 → 1992-08 ended
AT171 EFI —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-05 → 1990-07 ended
CT176,ET176 DX,STD;AT17#,CT170,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1989-08 → 1990-05 ended
CT176 SG;CT176 5F DX;AT170,ET176,ST170 +1 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1989-08 → 1990-05 ended
CT176 4FC DX —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1990-05 ended
AT171 GLIM —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-05 → 1990-05 ended
CT176,ET176 DX,STD;AT17#,CT170,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1989-08 ended
CT176,ET176,ST170 SG,SX —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-05 → 1988-08 ended
AT170,CT176,ET176,ST170 VAN,WG —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-05 → 1988-08 ended
AT171 GLIM —
90099-33084 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1990-05 ended
AT171 S —
90099-33201 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1990-05 ended
AT170 SE —
85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE)
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1988-05 → 1989-08 ended
AT17#,CT17#,ET176,ST170 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1989-08 → 1989-09 ended
AT170,171 GLIM,S,SE —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1989-08 → 1989-09 ended
CT176,ET176,ST170 SG,SX —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1989-08 → 1989-09 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1989-08 → 1989-09 ended
CT176,ET176 DX,STD;AT17#,CT170,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1989-08 → 1989-09 ended
CT170,ST170 SED;AT170,175 DX,SG,SGEXT —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1989-09 → 1990-05 ended
AT17#,CT17#,ET176,ST170 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1990-05 → 1990-07 ended
AT17#,CT17#,ET176,ST170 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1990-07 → 1992-11 ended
CT170 SV;AT17#,CT176,ET176,ST170 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
