Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

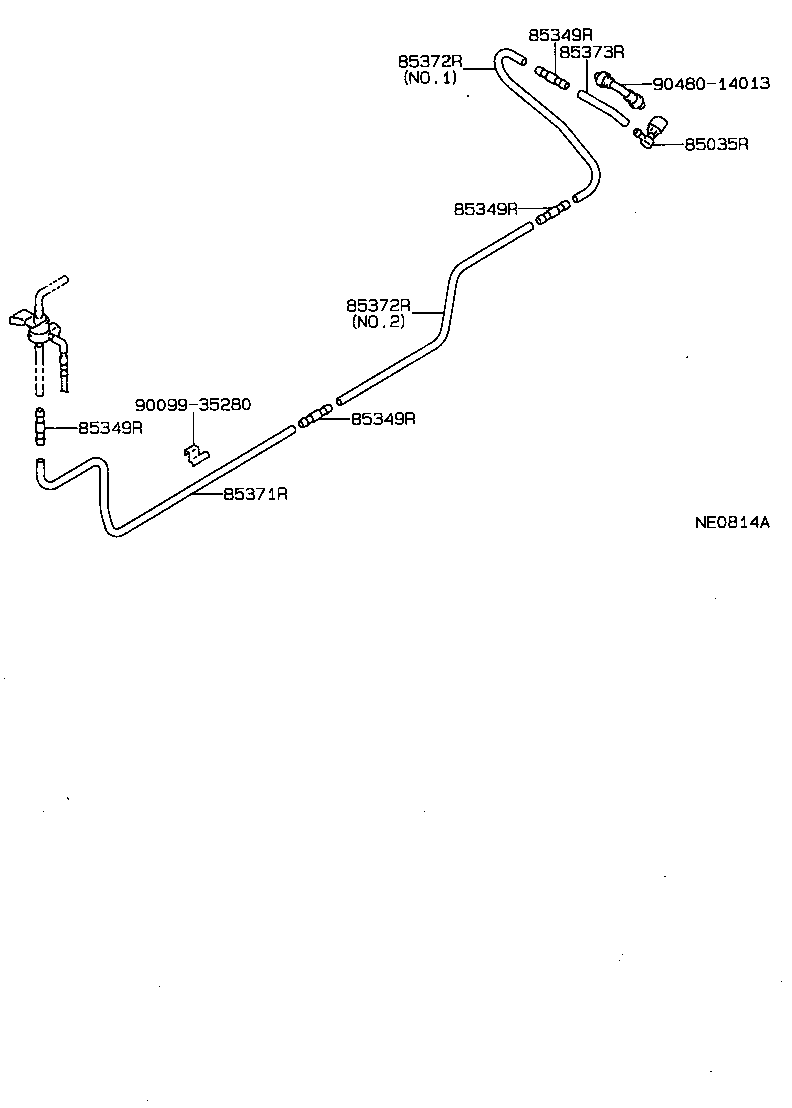

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85035R — Nozzle Sub-assy, Rear Washer | ||||
| 85391-21020 |
Nozzle Sub-assy, Rear Washer
1988-05 → 1990-05
ended
|
AT170,CT176,ET176,ST170 VAN,WG | — | |
| 85391-21020 |
Nozzle Sub-assy, Rear Washer
1990-05 → 1992-11
ended
|
AT170,CT170 SV | — | |
| 85391-21020 |
Nozzle Sub-assy, Rear Washer
1990-05 → 1992-11
ended
|
CT176,ET176 DX,STD | — | |
| 85391-21020 |
Nozzle Sub-assy, Rear Washer
1990-05 → 1992-11
ended
|
CT176,ET176,ST170 SG,SX | — | |
| 85349R — Joint, Rear Washer Hose, NO.5 | ||||
| 85349-89122 |
Joint, Rear Washer Hose, NO.5
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | — | |
| 85371R — Hose, Rear Washer (FROM MOTOR TO JOINT) | ||||
| 90446-07001 note |
Hose, Rear Washer (FROM MOTOR TO JOINT)
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | — | |
| 85372R — Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 note |
Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | — | |
| 90099-33629 note |
Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
1988-05 → 1992-11
ended
|
AT170,CT170,ST170 WG | — | |
| 90099-33630 note |
Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
1988-05 → 1992-11
ended
|
CT176,ET176 | — | |
| 90446-07001 note |
Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
1988-05 → 1990-05
ended
|
AT170,ST170 WG | — | |
| 85373R — Hose, Rear Washer (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 note |
Hose, Rear Washer (FROM JOINT TO NOZZLE)
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
