Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

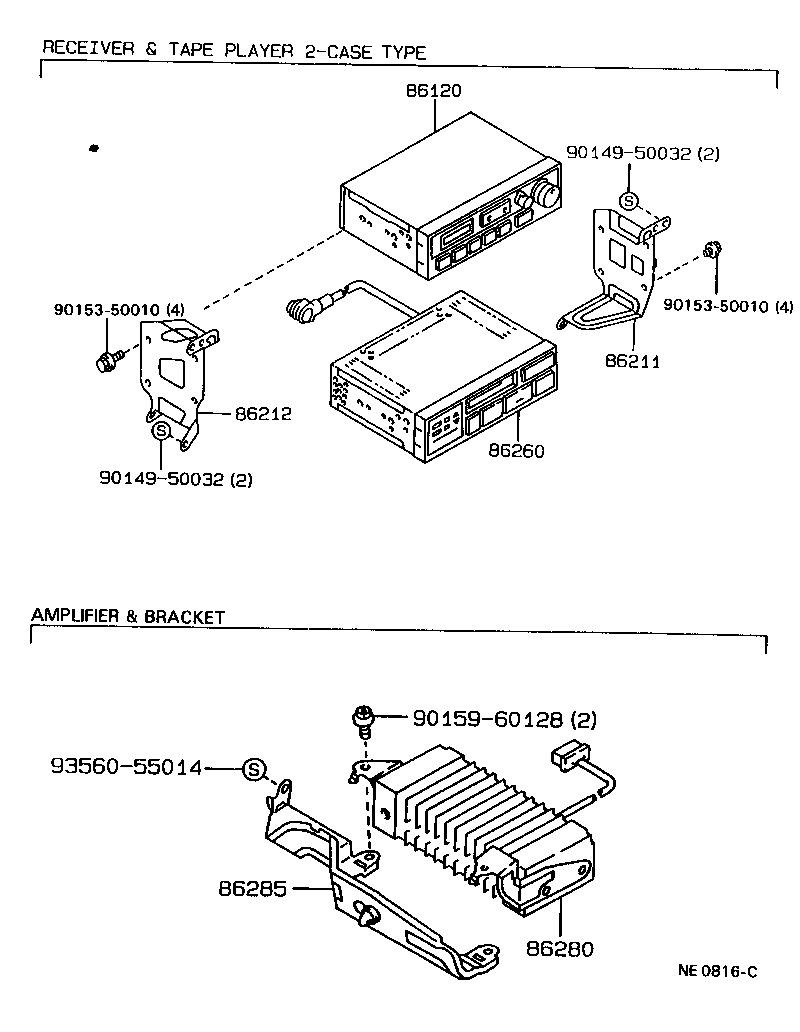

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

51 parts on this figure

Part number	Description	Fitment	Price
86120 — Receiver Assy, Radio
86120-16530 note	Receiver Assy, Radio 1988-05 → 1992-11 ended	AT175 SG;CT176,ET176;AT170,CT170 DX,SV	¥28,900
86120-20640	Receiver Assy, Radio 1988-05 → 1990-05 ended	AT170,171,CT170 GLIM,S,SE	¥135,000
86120-20640	Receiver Assy, Radio 1988-05 → 1990-05 ended	ST170 SE	¥135,000
86120-20650 note	Receiver Assy, Radio 1988-05 → 1990-05 ended	CT170 SG;AT170,171 S,SE,SG;AT175,ST170 SGEXT,SX	¥124,000
86120-20650 note	Receiver Assy, Radio 1988-05 → 1990-05 ended	AT170 DX,SV;AT175,CT176,ET176 DX,SG	¥124,000
86120-20660	Receiver Assy, Radio 1988-05 → 1990-05 ended	AT171,CT170,ST170 GLIM,SE	¥135,000
86120-20660	Receiver Assy, Radio 1988-08 → 1990-05 ended	AT175 SGEXT	¥135,000
86120-20890 note	Receiver Assy, Radio 1991-08 → 1992-08 ended	CT170 SG;AT170,ST170 SGEXT	¥217,000
86120-21010	Receiver Assy, Radio 1990-05 → 1992-11 ended	ST170 SX	¥300,000
86120-22650 note	Receiver Assy, Radio 1988-05 → 1990-05 ended	AT175,ST170 SGEXT;AT170,171,CT170 GLIM,S,SE,SG	¥253,000
86120-22650 note	Receiver Assy, Radio 1988-05 → 1990-05 ended	ST170 SE	¥253,000
86120-2A160 note	Receiver Assy, Radio 1990-09 → 1992-11 ended	AT170,CT170 DX,SV;CT176,ET176 DX,SG	¥102,000
86120-2A160 note	Receiver Assy, Radio 1990-09 → 1992-11 ended	AT17# S,SE,SG,SGEXT;CT170,ST170 SG,SGEXT,SX	¥102,000
86120-2B010 note	Receiver Assy, Radio 1990-05 → 1990-09 ended	AT170,CT170 DX,SV;CT176,ET176 DX,SG	¥103,000
86120-2B010 note	Receiver Assy, Radio 1990-05 → 1990-09 ended	AT17# S,SE,SG,SGEXT;CT170,ST170 SG,SGEXT,SX	¥103,000
86120-2B020 note	Receiver Assy, Radio 1990-05 → 1992-08 ended	CT170,ST170 SE	¥120,000
86120-2B020 note	Receiver Assy, Radio 1990-05 → 1992-08 ended	AT175 SE	¥120,000
86120-2B030 note	Receiver Assy, Radio 1990-05 → 1990-12 ended	AT17#,ST170 S,SGEXT,SX	¥266,000
86120-2B030 note	Receiver Assy, Radio 1990-12 → 1991-08 ended	CT170 SG;AT17#,ST170 S,SGEXT,SX	¥266,000
86120-2B030 note	Receiver Assy, Radio 1991-08 → 1992-11 ended	AT17#,ST170 S,SGEXT,SX	¥266,000
86120-2B220 note	Receiver Assy, Radio 1990-05 → 1992-08 ended	AT17#,CT170,ST170 GLIM,SE	¥396,000
86120-2B220 note	Receiver Assy, Radio 1990-05 → 1992-11 ended	AT171,ST170 S,SX	¥396,000
86120-2B280 note	Receiver Assy, Radio 1990-05 → 1992-08 ended	AT170,175,CT170,ST170 SE	¥300,000
86120-2B280 note	Receiver Assy, Radio 1990-05 → 1992-08 ended	AT171 EFIS	¥300,000
86120-2B280	Receiver Assy, Radio 1990-05 → 1992-08 ended	AT171 EFI	¥300,000
86211 — Bracket, Radio, NO.1
86211-20270 note	Bracket, Radio, NO.1 1988-05 → 1990-05 ended	AT170,171,CT170,ST170 GLIM,S,SE	¥620
86211-20280	Bracket, Radio, NO.1 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170	¥610
86212 — Bracket, Radio, NO.2
86212-20260 note	Bracket, Radio, NO.2 1988-05 → 1990-05 ended	AT170,171,CT170,ST170 GLIM,S,SE	¥620
86212-20270	Bracket, Radio, NO.2 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170	¥610
86260 — Tape Player Assy
86260-19145 note	Tape Player Assy 1988-05 → 1992-11 ended	AT175,CT170,ST170 SG,SGEXT,SV,SX;AT170,171,CT176,ET176 DX,S,SE,SG,SGEXT,STD,SV	—
86260-19155 note	Tape Player Assy 1988-05 → 1992-11 ended	AT175,CT170,ST170 SG,SGEXT,SV,SX;AT170,171,CT176,ET176 DX,S,SE,SG,SGEXT,STD,SV	—
86260-19165 note	Tape Player Assy 1988-05 → 1992-11 ended	AT175,CT170,ST170 SG,SGEXT,SV,SX;AT170,171,CT176,ET176 DX,S,SE,SG,SGEXT,STD,SV	—
86260-19175	Tape Player Assy 1990-05 → 1992-11 ended	AT175,CT170,ST170 SG,SGEXT,SV,SX;AT170,171,CT176,ET176 DX,S,SE,SG,SGEXT,STD,SV	—
86260-19175	Tape Player Assy 1988-08 → 1990-05 ended	AT175 SGEXT	—
86260-19175	Tape Player Assy 1988-05 → 1990-05 ended	CT170,ST170 SG,SGEXT,SX;AT17#,CT176,ET176 DX,S,SE,SG,STD,SV	—
86260-20141 note	Tape Player Assy 1988-08 → 1990-05 ended	AT175 SGEXT	¥82,400
86260-20141	Tape Player Assy 1988-05 → 1992-08 ended	AT171,175,CT170,ST170 GLIM,SE	¥82,400
86260-20151 note	Tape Player Assy 1990-05 → 1992-08 ended	AT171,175,CT170,ST170 GLIM,SE	¥103,000
86260-20151 note	Tape Player Assy 1988-05 → 1990-05 ended	ST170 SE;AT171,175,CT170 GLIM,SE,SGEXT	¥103,000
86280 — Amplifier Assy, Stereo Component
86280-20140	Amplifier Assy, Stereo Component 1988-05 → 1990-05 ended	ST170 SE	¥70,300
86280-20140	Amplifier Assy, Stereo Component 1988-05 → 1990-05 ended	AT170,171,CT170 GLIM,S,SE	¥70,300
86280-20220	Amplifier Assy, Stereo Component 1990-05 → 1992-08 ended	ST170 SE	¥70,700
86280-20220	Amplifier Assy, Stereo Component 1990-05 → 1992-08 ended	AT170,171,CT170 GLIM,SE	¥70,700
86280-20220	Amplifier Assy, Stereo Component 1990-05 → 1992-08 ended	AT171 EFIS	¥70,700
86280-20240	Amplifier Assy, Stereo Component 1990-05 → 1992-08 ended	AT175 SE	¥70,700
86280-21010	Amplifier Assy, Stereo Component 1990-05 → 1992-11 ended	ST170 SX	¥70,700
86285 — Bracket, Amplifier, NO.1
86285-20030	Bracket, Amplifier, NO.1 1988-05 → 1990-05 ended	ST170 SE	¥1,280
86285-20030	Bracket, Amplifier, NO.1 1988-05 → 1992-08 ended	AT170,171,CT170 (GLIM,S,SE) (CBR,DSL,EFI)	¥1,280
86285-20030	Bracket, Amplifier, NO.1 1990-05 → 1992-08 ended	ST170 SE	¥1,280
86285-20030 note	Bracket, Amplifier, NO.1 1990-05 → 1992-11 ended	AT171,ST170 S,SX	¥1,280
86285-20050	Bracket, Amplifier, NO.1 1990-05 → 1992-08 ended	AT175 SE	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
