Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06

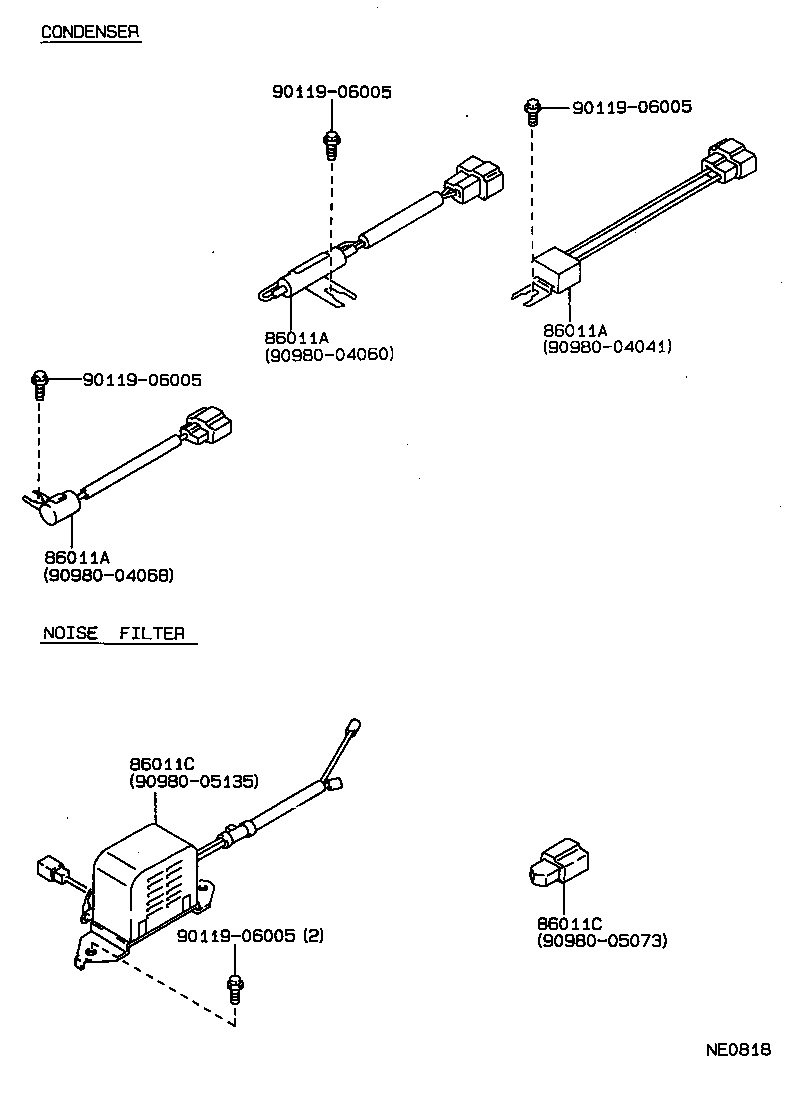

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

16 parts on this figure

Part number	Description	Fitment	Price
86011A — Condenser, Radio Setting
90980-04041 note	Condenser, Radio Setting 1988-05 → 1992-11 ended	ST170	¥880
90980-04060	Condenser, Radio Setting 1988-05 → 1990-05 ended	AT17#,CT170 GLIM,SE,SGEXT	¥1,540
90980-04060 note	Condenser, Radio Setting 1989-03 → 1990-05 ended	ST170 SGEXT	¥1,540
90980-04060 note	Condenser, Radio Setting 1988-05 → 1992-08 ended	ST170 SE;ST170 SX CI	¥1,540
90980-04060 note	Condenser, Radio Setting 1988-05 → 1992-08 ended	AT171 S	¥1,540
90980-04060	Condenser, Radio Setting 1990-05 → 1992-08 ended	AT17#,CT170 GLIM,SE	¥1,540
90980-04068	Condenser, Radio Setting 1988-05 → 1990-05 ended	AT17#,CT17#,ET176 DX,S,SG,STD,SV	¥1,180
90980-04068 note	Condenser, Radio Setting 1988-05 → 1992-11 ended	ST170 SGEXT CI;ST170 (SGEXT,SX) +1	¥1,180
90980-04068	Condenser, Radio Setting 1990-05 → 1992-11 ended	AT17#,CT17#,ET176 DX,S,SG,SGEXT,STD,SV	¥1,180
86011C — Filter, Noise
90980-05073 note	Filter, Noise 1988-05 → 1992-08 ended	AT17#,CT170,ST170 GLIM,SE	¥1,400
90980-05135 note	Filter, Noise 1988-05 → 1990-05 ended	ST170 SE;AT17#,CT170 GLIM,SE,SGEXT	¥6,100
90980-05135 note	Filter, Noise 1989-03 → 1990-05 ended	ST170 SGEXT	¥6,100
90980-05135 note	Filter, Noise 1988-05 → 1992-08 ended	AT171 S	¥6,100
90980-05135	Filter, Noise 1990-05 → 1992-08 ended	AT17#,CT170,ST170 GLIM,SE	¥6,100
90980-05152 note	Filter, Noise 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170	¥1,410
90980-05153 note	Filter, Noise 1988-05 → 1992-11 ended	AT17#,CT17#,ET176,ST170	¥1,410

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
