Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

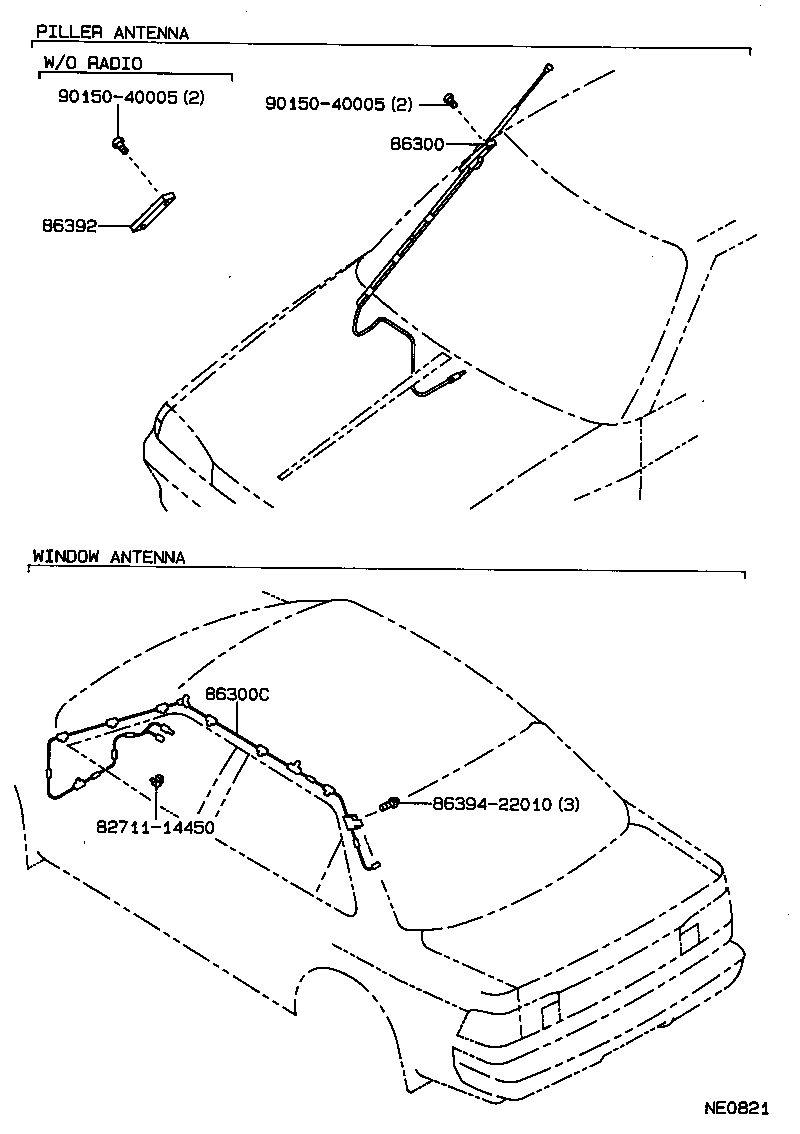

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86300 — Antenna Assy, W/Holder | ||||
| 86300-20610 |
Antenna Assy, W/Holder
1988-05 → 1990-05
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV | ¥5,800 | |
| 86300-20610 |
Antenna Assy, W/Holder
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX | ¥5,800 | |
| 86300C — Antenna Assy, Amplifier, NO.2 | ||||
| 86300-20570 |
Antenna Assy, Amplifier, NO.2
1988-05 → 1990-05
ended
|
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT | ¥11,800 | |
| 86300-20570 note |
Antenna Assy, Amplifier, NO.2
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥11,800 | |
| 86300-20570 note |
Antenna Assy, Amplifier, NO.2
1988-05 → 1992-08
ended
|
AT171 S | ¥11,800 | |
| 86300-20570 |
Antenna Assy, Amplifier, NO.2
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥11,800 | |
| 86300-20580 note |
Antenna Assy, Amplifier, NO.2
1988-05 → 1990-05
ended
|
ST170 SE | ¥11,800 | |
| 86300-20580 note |
Antenna Assy, Amplifier, NO.2
1988-05 → 1992-08
ended
|
AT17#,CT170,ST170 (GLIM,SE) (CBR,DSL,EFI) | ¥11,800 | |
| 86300-20590 note |
Antenna Assy, Amplifier, NO.2
1988-05 → 1990-05
ended
|
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT | ¥11,800 | |
| 86300-20590 note |
Antenna Assy, Amplifier, NO.2
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥11,800 | |
| 86300-20590 note |
Antenna Assy, Amplifier, NO.2
1988-05 → 1992-08
ended
|
AT171 S | ¥11,800 | |
| 86300-20590 note |
Antenna Assy, Amplifier, NO.2
1990-05 → 1992-08
ended
|
AT170,171,CT170,ST170 GLIM,SE | ¥11,800 | |
| 86300-20600 note |
Antenna Assy, Amplifier, NO.2
1988-05 → 1990-05
ended
|
ST170 SE | ¥11,800 | |
| 86300-20600 note |
Antenna Assy, Amplifier, NO.2
1988-05 → 1992-08
ended
|
AT170,171,CT170,ST170 (GLIM,SE) (CBR,DSL,EFI) | ¥11,800 | |
| 86392 — Ornament, Antenna | ||||
| 86392-20090 |
Ornament, Antenna
1988-05 → 1992-11
ended
|
ET176 STD;AT170 4F DX +1 | ¥740 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
