Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

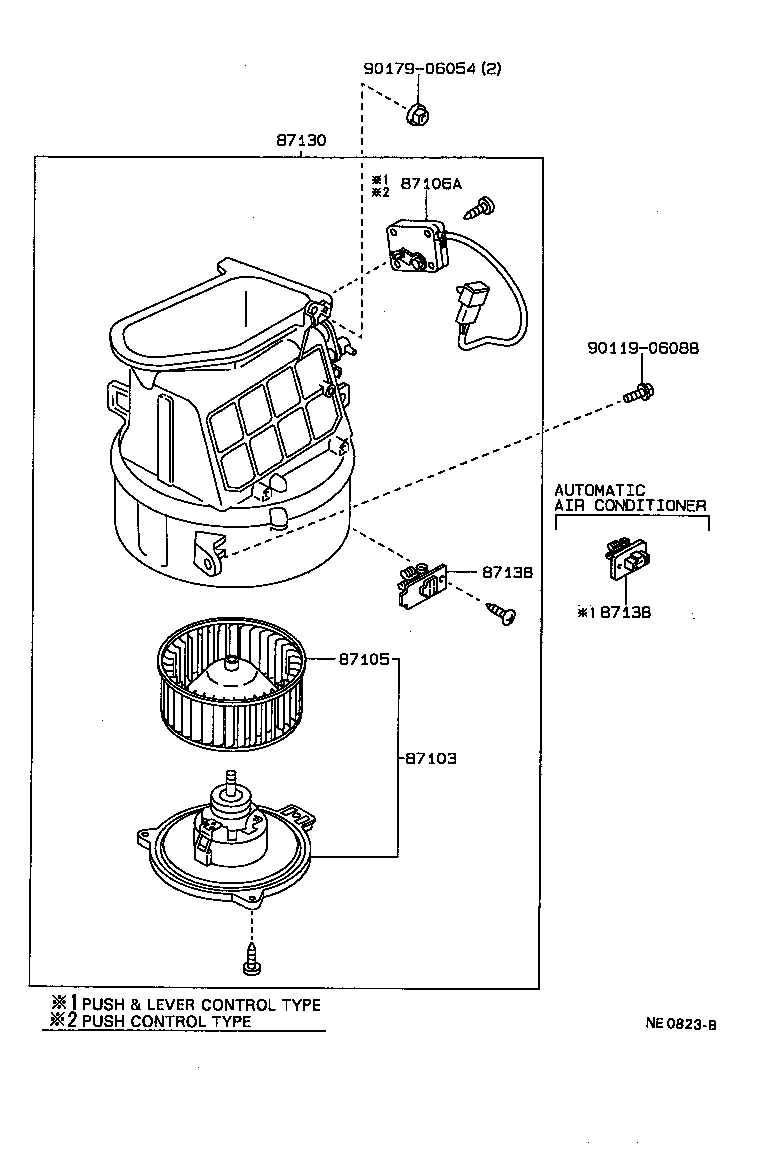

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87103 — Motor Sub-assy, Heater Blower, W/Fan | ||||
| 87103-20020 |
Motor Sub-assy, Heater Blower, W/Fan
1988-05 → 1991-07
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 87103-26010 |
Motor Sub-assy, Heater Blower, W/Fan
1991-07 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 87105 — Fan Sub-assy, Heater Blower | ||||
| 87105-20100 |
Fan Sub-assy, Heater Blower
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 87106A — Servo Sub-assy, Damper | ||||
| 87106-20090 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
CT170,ST170 SG,SGEXT | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1990-05 → 1992-11
ended
|
ST170 SX | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1990-05 → 1992-11
ended
|
AT170,CT170 SV;ST170 SGEXT,SX | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
AT175 SE,SGEXT;AT170,171,CT170,ST170 GLIM,SE | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
AT170 SGEXT | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1988-05 → 1992-08
ended
|
AT171 S | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-12
ended
|
ST170 SE;ST170 SX CI;AT17#,CT170 +1 | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
CT170 SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1988-05 → 1989-03
ended
|
AT17#,CT170,ST170 GLIM,SE,SGEXT,SX | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
AT170 (4FC,5F) SG | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
ST170 SGEXT | — | |
| 87106-20090 note |
Servo Sub-assy, Damper
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1988-05 → 1990-05
ended
|
AT171 S | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1990-12 → 1992-11
ended
|
AT170,171,CT170,ST170 GLIM,S,SE,SGEXT,SX | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1990-12 → 1992-11
ended
|
AT175 SE,SGEXT | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
CT170 SG | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1988-05 → 1990-12
ended
|
AT171,ST170 ) (S,SE) (CI,EFIS);AT17#,CT170,ST170 +2 | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
AT170,CT170 SG | — | |
| 87106-20100 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
ST170 SGEXT | — | |
| 87106-20110 note |
Servo Sub-assy, Damper
1988-05 → 1990-05
ended
|
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1988-05 → 1992-11
ended
|
AT171,ST170 (S,SX) (EFI,EFIS) | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
AT170,CT170 SG | ¥0 | |
| 87106-20110 note |
Servo Sub-assy, Damper
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥0 | |
| 87106-20190 note |
Servo Sub-assy, Damper
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | — | |
| 87130 — Blower Assy, Heater, Front | ||||
| 87130-20340 |
Blower Assy, Heater, Front
1988-05 → 1992-11
ended
|
ST170 (SGEXT,SX) CI;AT170,171,CT17#,ET176 (DX,S,SG,STD,SV) +1 | — | |
| 87130-20360 note |
Blower Assy, Heater, Front
1988-05 → 1990-05
ended
|
AT171 S | — | |
| 87130-20360 note |
Blower Assy, Heater, Front
1989-03 → 1990-05
ended
|
AT170,CT170 SG | — | |
| 87130-20360 note |
Blower Assy, Heater, Front
1989-03 → 1990-05
ended
|
ST170 SGEXT | — | |
| 87130-20360 note |
Blower Assy, Heater, Front
1989-05 → 1990-05
ended
|
ST170 SX | — | |
| 87130-20360 note |
Blower Assy, Heater, Front
1990-12 → 1992-08
ended
|
CT170 SG | — | |
| 87130-20360 |
Blower Assy, Heater, Front
1988-05 → 1992-11
ended
|
AT171,ST170 ,EFI) (S,SE) (CI,EFIS);AT170,171,CT170,ST170 +2 | — | |
| 87130-20420 |
Blower Assy, Heater, Front
1988-08 → 1992-08
ended
|
AT175 SG | — | |
| 87130-20430 |
Blower Assy, Heater, Front
1990-05 → 1992-08
ended
|
AT175 SE,SGEXT | — | |
| 87138 — Resistor, Heater Blower | ||||
| 87138-20130 |
Resistor, Heater Blower
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 88635-20080 note |
Resistor, Heater Blower
1988-05 → 1990-05
ended
|
AT171,ST170 S,SGEXT,SX | — | |
| 88635-20080 note |
Resistor, Heater Blower
1988-05 → 1990-05
ended
|
AT170 (4FC,5F) SG | — | |
| 88635-20080 note |
Resistor, Heater Blower
1988-05 → 1990-05
ended
|
AT170 4F SG | — | |
| 88635-20080 note |
Resistor, Heater Blower
1990-05 → 1992-11
ended
|
AT17#,CT170,ST170 S,SGEXT,SV,SX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
