Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

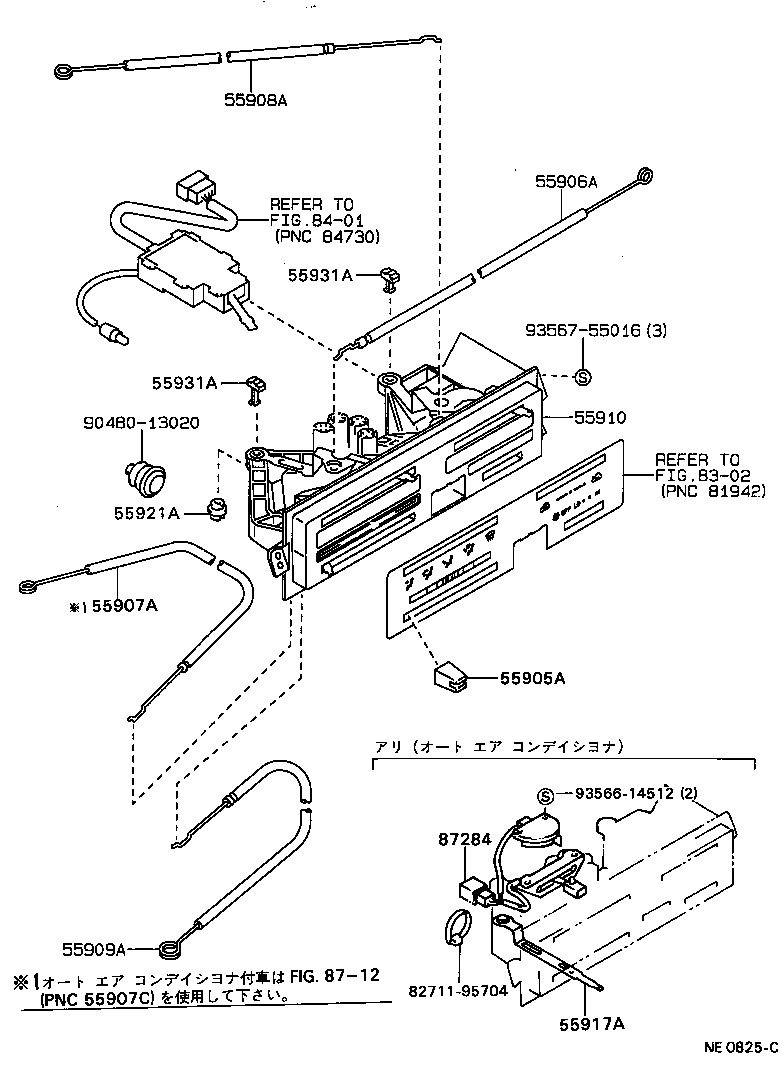

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55905A — Knob, Heater Control | ||||
| 55905-12130 |
Knob, Heater Control
1988-05 → 1992-11
ended
|
ST170 (SGEXT,SX) CI;AT17#,CT17#,ET176 (DX,S,SG,STD,SV) +1 | ¥650 | |
| 55905-20380 |
Knob, Heater Control
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | ¥430 | |
| 55906A — Cable Sub-assy, Defroster Damper Control | ||||
| 55906-20270 |
Cable Sub-assy, Defroster Damper Control
1988-05 → 1990-05
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV | ¥640 | |
| 55906-20271 |
Cable Sub-assy, Defroster Damper Control
1990-05 → 1992-11
ended
|
AT170,175,CT17#,ET176 DX,SG,STD,SV | ¥740 | |
| 55907A — Cable Sub-assy, Water Valve Control | ||||
| 55907-20200 |
Cable Sub-assy, Water Valve Control
1988-09 → 1990-05
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV | ¥1,000 | |
| 55907-20201 |
Cable Sub-assy, Water Valve Control
1990-05 → 1992-11
ended
|
AT170,175,CT17#,ET176 DX,SG,STD,SV | ¥990 | |
| 55907-20220 |
Cable Sub-assy, Water Valve Control
1988-05 → 1988-09
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV | ¥990 | |
| 55907-20270 |
Cable Sub-assy, Water Valve Control
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | ¥990 | |
| 55908A — Cable Sub-assy, Air Inlet Damper Control | ||||
| 55908-20150 |
Cable Sub-assy, Air Inlet Damper Control
1988-05 → 1990-05
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV | ¥800 | |
| 55908-20151 |
Cable Sub-assy, Air Inlet Damper Control
1990-05 → 1992-11
ended
|
AT170,175,CT17#,ET176 DX,SG,STD,SV | ¥940 | |
| 55909A — Cable Sub-assy, Airmix Damper Control | ||||
| 55909-20090 |
Cable Sub-assy, Airmix Damper Control
1988-05 → 1990-05
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV | ¥740 | |
| 55909-20091 |
Cable Sub-assy, Airmix Damper Control
1990-05 → 1992-11
ended
|
AT170,175,CT17#,ET176 DX,SG,STD,SV | ¥860 | |
| 55909-20150 |
Cable Sub-assy, Airmix Damper Control
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | ¥860 | |
| 55910 — Control Assy, Heater OR Boost Ventilator | ||||
| 55910-20540 |
Control Assy, Heater OR Boost Ventilator
1988-05 → 1990-05
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SG,STD,SV | ¥4,150 | |
| 55910-20541 |
Control Assy, Heater OR Boost Ventilator
1990-05 → 1992-11
ended
|
AT170,175,CT17#,ET176 DX,SG,STD,SV | ¥4,100 | |
| 55910-20610 |
Control Assy, Heater OR Boost Ventilator
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | ¥22,900 | |
| 55917A — Lever, Temperature Damper Control | ||||
| 55917-20120 |
Lever, Temperature Damper Control
1988-05 → 1992-11
ended
|
AT170,171,CT170 (S,SV) (DSL,EFI);AT170,ST170 (SG,SGEXT,SX) +1 | ¥530 | |
| 55917-20130 |
Lever, Temperature Damper Control
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | ¥530 | |
| 55921A — Retainer, Heater Control | ||||
| 55921-20100 note |
Retainer, Heater Control
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥170 | |
| 55921-20100 note |
Retainer, Heater Control
1989-03 → 1990-05
ended
|
AT170,CT170 SG | ¥170 | |
| 55921-20100 |
Retainer, Heater Control
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | ¥170 | |
| 55921-20100 note |
Retainer, Heater Control
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥170 | |
| 55921-20100 note |
Retainer, Heater Control
1988-05 → 1992-11
ended
|
AT171,ST170 (S,SX) (EFI,EFIS) | ¥170 | |
| 55921-20100 |
Retainer, Heater Control
1988-05 → 1990-05
ended
|
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT | ¥170 | |
| 55921-20110 |
Retainer, Heater Control
1989-09 → 1992-11
ended
|
AT171 S EFI | ¥210 | |
| 55921-20110 |
Retainer, Heater Control
1988-05 → 1992-11
ended
|
ST170 (SGEXT,SX) CI | ¥210 | |
| 55921-20110 |
Retainer, Heater Control
1988-05 → 1992-11
ended
|
AT170,175,CT17#,ET176 DX,SG,STD,SV | ¥210 | |
| 55931A — Shaft, Heater Control Lever | ||||
| 55931-20080 note |
Shaft, Heater Control Lever
1988-05 → 1992-11
ended
|
AT171 S EFI | ¥300 | |
| 55931-20080 note |
Shaft, Heater Control Lever
1988-05 → 1992-11
ended
|
AT170,175,CT17#,ET176 DX,SG,STD,SV | ¥300 | |
| 55931-20080 note |
Shaft, Heater Control Lever
1988-05 → 1992-11
ended
|
ST170 (SGEXT,SX) CI | ¥300 | |
| 55931-20090 note |
Shaft, Heater Control Lever
1988-05 → 1992-11
ended
|
AT171 S EFI | ¥300 | |
| 55931-20090 note |
Shaft, Heater Control Lever
1988-05 → 1992-11
ended
|
AT170,175,CT17#,ET176 DX,SG,STD,SV | ¥300 | |
| 55931-20090 note |
Shaft, Heater Control Lever
1988-05 → 1992-11
ended
|
ST170 (SGEXT,SX) CI | ¥300 | |
| 87284 — Resistor Sub-assy, Variable | ||||
| 88032-20110 |
Resistor Sub-assy, Variable
1988-05 → 1992-11
ended
|
AT170,171,CT170 (S,SV) (DSL,EFI);AT170,ST170 (SG,SGEXT,SX) +1 | — | |
| 88032-20160 |
Resistor Sub-assy, Variable
1990-05 → 1992-11
ended
|
AT17#,ST170 S,SGEXT,SX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
