Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

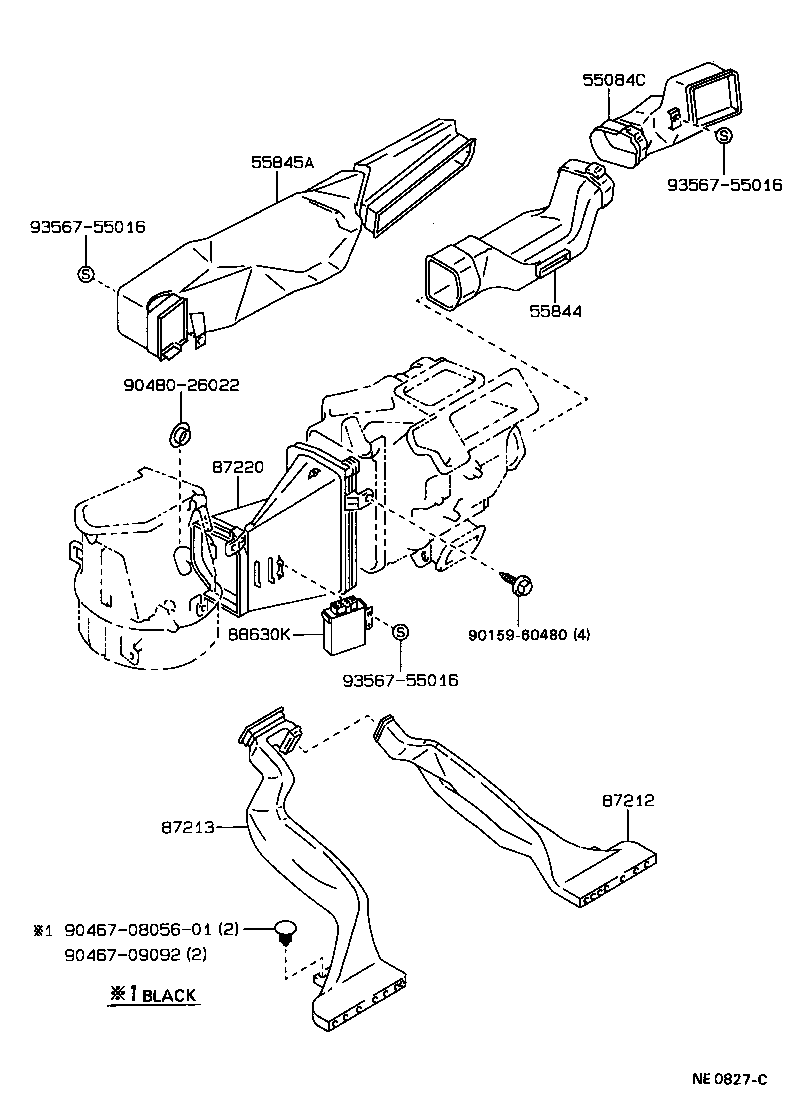

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55084C — Duct Sub-assy, Heater TO Register, NO.1 | ||||
| 55084-20140 |
Duct Sub-assy, Heater TO Register, NO.1
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥3,090 | |
| 55844 — Duct, Heater TO Register, NO.2 | ||||
| 55844-20120 |
Duct, Heater TO Register, NO.2
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥6,600 | |
| 55844-20130 note |
Duct, Heater TO Register, NO.2
1988-05 → 1990-12
ended
|
AT170 (SE,SG) CBR;AT17#,CT170,ST170 (GLIM,S,SE,SGEXT,SV,SX) +1 | ¥6,200 | |
| 55844-20130 note |
Duct, Heater TO Register, NO.2
1988-05 → 1990-12
ended
|
AT170 (DX,SV) CBR;AT170 (DX,SG) +2 | ¥6,200 | |
| 55844-20130 note |
Duct, Heater TO Register, NO.2
1990-12 → 1992-11
ended
|
CT170;AT17#,ST170 GLIM,S,SE,SGEXT,SV,SX | ¥6,200 | |
| 55844-20130 note |
Duct, Heater TO Register, NO.2
1990-12 → 1992-11
ended
|
AT170,175,CT176,ET176 DX,SG,STD | ¥6,200 | |
| 55845A — Duct, Heater TO Register, NO.3 | ||||
| 55845-20170 |
Duct, Heater TO Register, NO.3
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥8,100 | |
| 87212 — Duct, Air, Rear NO.1 | ||||
| 87212-20070 note |
Duct, Air, Rear NO.1
1988-05 → 1992-11
ended
|
AT170,171,CT17#,ET176,ST170 | ¥3,870 | |
| 87212-20080 note |
Duct, Air, Rear NO.1
1988-08 → 1992-08
ended
|
AT175 | ¥8,500 | |
| 87213 — Duct, Air, Rear NO.2 | ||||
| 87213-20040 note |
Duct, Air, Rear NO.2
1988-05 → 1992-11
ended
|
AT170,171,CT17#,ET176,ST170 | ¥3,870 | |
| 87213-20050 note |
Duct, Air, Rear NO.2
1988-08 → 1992-08
ended
|
AT175 | ¥9,900 | |
| 87220 — Duct Assy, Air | ||||
| 87220-20030 |
Duct Assy, Air
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 87220-20040 note |
Duct Assy, Air
1988-05 → 1992-11
ended
|
AT170,171,CT17#,ET176,ST170 | — | |
| 87220-20090 note |
Duct Assy, Air
1988-08 → 1992-08
ended
|
AT175 | — | |
| 88630K — Relay Assy | ||||
| 88630-20110 |
Relay Assy
1988-05 → 1990-05
ended
|
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT | — | |
| 88630-20110 |
Relay Assy
1989-03 → 1990-05
ended
|
ST170 SGEXT | — | |
| 88630-20110 |
Relay Assy
1989-03 → 1990-05
ended
|
AT170,CT170 SG | — | |
| 88630-20110 note |
Relay Assy
1989-05 → 1990-05
ended
|
ST170 SX | — | |
| 88630-20110 |
Relay Assy
1990-05 → 1992-08
ended
|
AT17#,CT170,ST170 GLIM,SE | — | |
| 88630-20110 |
Relay Assy
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | — | |
| 88630-20110 |
Relay Assy
1988-05 → 1992-11
ended
|
AT171,ST170 (S,SX) (EFI,EFIS) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
