Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

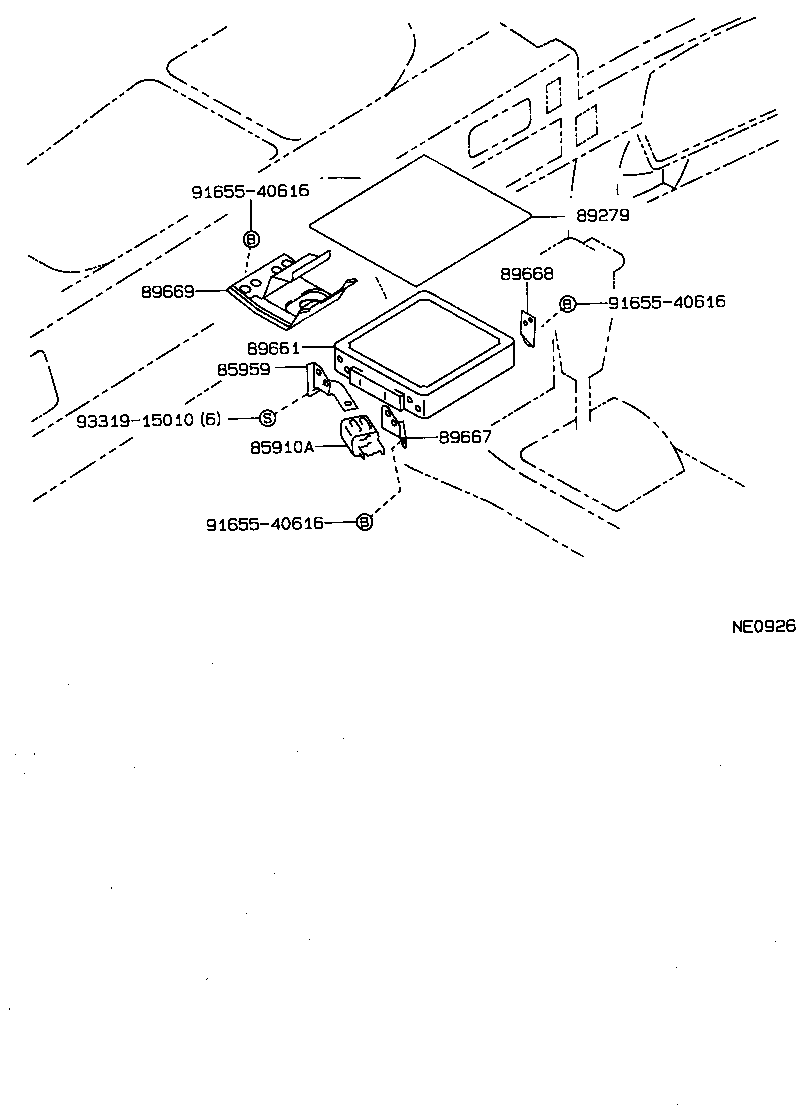

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85910A — Relay Assy, Circuit Opening (FOR EFI) | ||||
| 85910-12010 |
Relay Assy, Circuit Opening (FOR EFI)
1988-05 → 1992-11
ended
|
AT17#,ST170 CI,EFI,EFIS | ¥5,700 | |
| 85959 — Holder, Relay | ||||
| 85959-20110 |
Holder, Relay
1988-05 → 1990-05
ended
|
AT171,175,ST170 | ¥320 | |
| 85959-20110 |
Holder, Relay
1990-05 → 1992-11
ended
|
AT171 5F EFI;AT17#,ST170 DX,S,SE,SG,SGEXT,SV,SX | ¥320 | |
| 85959-20170 |
Holder, Relay
1990-05 → 1992-08
ended
|
AT171 4FC EFI | ¥520 | |
| 89279 — Cover, Engine Control Computer | ||||
| 89279-20110 |
Cover, Engine Control Computer
1988-05 → 1992-11
ended
|
AT171,ST170 | ¥310 | |
| 89279-20130 |
Cover, Engine Control Computer
1988-08 → 1992-08
ended
|
AT175 | — | |
| 89279-20150 |
Cover, Engine Control Computer
1990-05 → 1992-11
ended
|
AT170 | ¥310 | |
| 89661 — Computer, Engine Control | ||||
| 89661-12570 |
Computer, Engine Control
1989-08 → 1989-09
ended
|
AT171 GLIM | ¥118,000 | |
| 89661-20411 |
Computer, Engine Control
1988-05 → 1989-07
ended
|
ST170 4FC | ¥96,900 | |
| 89661-20412 |
Computer, Engine Control
1989-07 → 1990-05
ended
|
ST170 4FC | ¥97,600 | |
| 89661-20463 |
Computer, Engine Control
1988-05 → 1989-07
ended
|
ST170 5F | ¥90,100 | |
| 89661-20464 |
Computer, Engine Control
1989-07 → 1990-05
ended
|
ST170 5F | ¥90,800 | |
| 89661-20530 |
Computer, Engine Control
1988-08 → 1990-05
ended
|
AT175 | ¥97,600 | |
| 89661-20550 |
Computer, Engine Control
1988-05 → 1990-05
ended
|
AT171 S | ¥106,000 | |
| 89661-20560 |
Computer, Engine Control
1988-05 → 1988-07
ended
|
AT171 GLIM | ¥105,000 | |
| 89661-20561 |
Computer, Engine Control
1988-07 → 1989-04
ended
|
AT171 5F GLIM | ¥105,000 | |
| 89661-20562 |
Computer, Engine Control
1989-04 → 1989-08
ended
|
AT171 5F GLIM | ¥105,000 | |
| 89661-20570 |
Computer, Engine Control
1988-07 → 1989-04
ended
|
AT171 4FC GLIM | ¥98,900 | |
| 89661-20571 |
Computer, Engine Control
1989-04 → 1989-08
ended
|
AT171 4FC GLIM | ¥98,100 | |
| 89661-20821 |
Computer, Engine Control
1990-05 → 1990-07
ended
|
ST170 | ¥84,000 | |
| 89661-20822 |
Computer, Engine Control
1990-07 → 1990-10
ended
|
ST170 | ¥84,000 | |
| 89661-20823 |
Computer, Engine Control
1990-10 → 1992-11
ended
|
ST170 | ¥83,200 | |
| 89661-20860 |
Computer, Engine Control
1990-05 → 1992-08
ended
|
AT175 | ¥96,700 | |
| 89661-20890 |
Computer, Engine Control
1990-05 → 1992-08
ended
|
AT171 5F EFI | ¥119,000 | |
| 89661-20890 |
Computer, Engine Control
1989-09 → 1990-05
ended
|
AT171 GLIM | ¥119,000 | |
| 89661-2B030 |
Computer, Engine Control
1990-05 → 1992-08
ended
|
AT171 4FC EFI | ¥118,000 | |
| 89661-2B040 |
Computer, Engine Control
1990-05 → 1992-11
ended
|
AT170 | ¥96,700 | |
| 89661-2B050 |
Computer, Engine Control
1990-05 → 1991-12
ended
|
AT171 EFIS | ¥118,000 | |
| 89661-2B051 |
Computer, Engine Control
1991-12 → 1992-08
ended
|
AT171 EFIS | ¥118,000 | |
| 89667 — Bracket, Engine Control Computer | ||||
| 89667-20130 note |
Bracket, Engine Control Computer
1988-05 → 1989-08
ended
|
AT171,ST170 | ¥390 | |
| 89667-20130 note |
Bracket, Engine Control Computer
1989-08 → 1992-11
ended
|
AT171 S;ST170 CI | ¥390 | |
| 89667-20130 |
Bracket, Engine Control Computer
1988-05 → 1992-11
ended
|
AT170 EFI | ¥390 | |
| 89667-20140 |
Bracket, Engine Control Computer
1989-08 → 1992-11
ended
|
ST170 EFI | ¥390 | |
| 89667-20140 note |
Bracket, Engine Control Computer
1990-05 → 1992-11
ended
|
AT171 5F EFI | ¥390 | |
| 89667-20140 note |
Bracket, Engine Control Computer
1989-08 → 1990-05
ended
|
AT171 GLIM | ¥390 | |
| 89667-20160 note |
Bracket, Engine Control Computer
1988-05 → 1990-05
ended
|
AT171 4FC GLIM | ¥400 | |
| 89667-20180 |
Bracket, Engine Control Computer
1988-08 → 1992-08
ended
|
AT175 | — | |
| 89667-20230 note |
Bracket, Engine Control Computer
1990-05 → 1992-08
ended
|
AT171 4FC EFI | ¥520 | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-20120 note |
Bracket, Engine Control Computer, NO.2
1988-05 → 1990-05
ended
|
AT171,ST170 | ¥390 | |
| 89668-20120 |
Bracket, Engine Control Computer, NO.2
1988-05 → 1992-11
ended
|
ST170 EFI | ¥390 | |
| 89668-20120 note |
Bracket, Engine Control Computer, NO.2
1990-05 → 1992-11
ended
|
AT171 EFIS;AT171 5F EFI | ¥390 | |
| 89668-20140 note |
Bracket, Engine Control Computer, NO.2
1988-05 → 1990-05
ended
|
AT171 4FC GLIM | ¥400 | |
| 89668-20160 |
Bracket, Engine Control Computer, NO.2
1988-08 → 1992-08
ended
|
AT175 | — | |
| 89668-20200 note |
Bracket, Engine Control Computer, NO.2
1990-05 → 1992-08
ended
|
AT171 4FC EFI | ¥520 | |
| 89668-20210 |
Bracket, Engine Control Computer, NO.2
1990-05 → 1992-11
ended
|
AT170 | ¥520 | |
| 89669 — Bracket, Engine Control Computer, NO.3 | ||||
| 89669-20070 |
Bracket, Engine Control Computer, NO.3
1988-08 → 1992-08
ended
|
AT175 | ¥870 | |
| 89669-20100 |
Bracket, Engine Control Computer, NO.3
1988-05 → 1990-05
ended
|
AT171,ST170 | ¥390 | |
| 89669-20100 |
Bracket, Engine Control Computer, NO.3
1990-05 → 1992-11
ended
|
AT171 5F EFI;AT170,171,ST170 DX,S,SE,SG,SGEXT,SV,SX | ¥390 | |
| 89669-20160 |
Bracket, Engine Control Computer, NO.3
1990-05 → 1992-08
ended
|
AT171 4FC EFI | ¥470 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
