Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

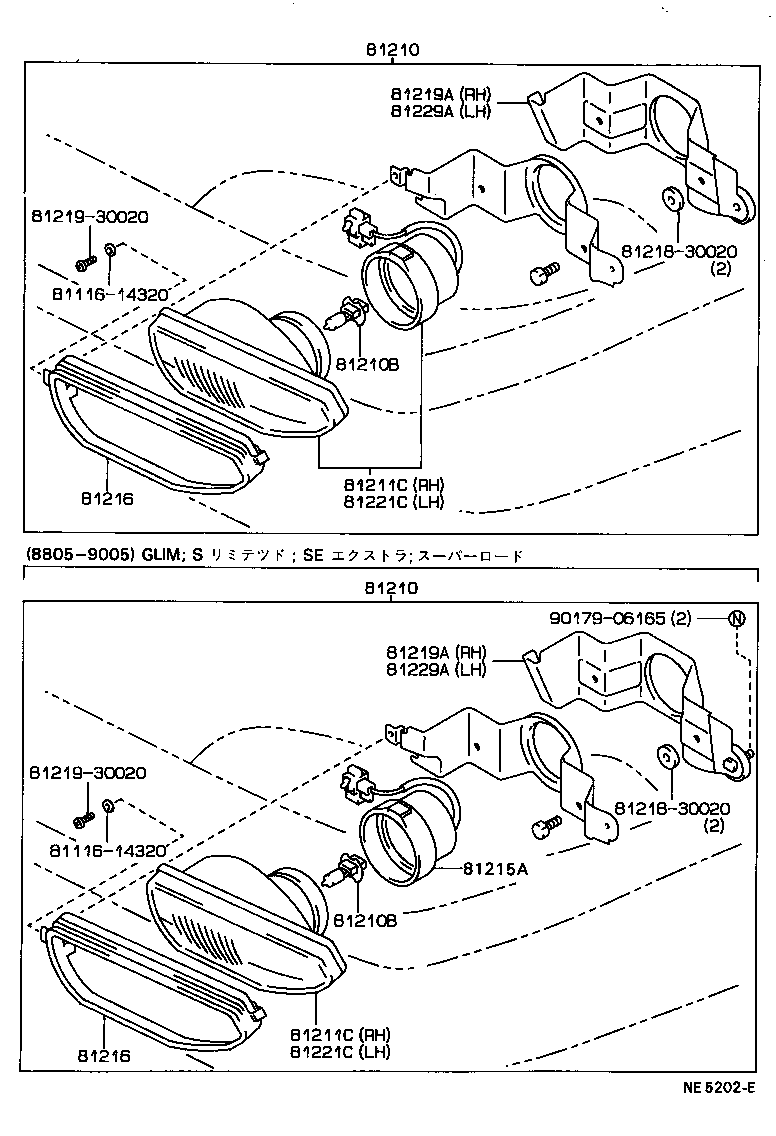

Exploded illustration NE5202E 81210 — LAMP ASSY, FOG (40 parts) 81219A — BRACKET, FOG LAMP, RH (13 parts) 81229A — BRACKET, FOG LAMP, LH (13 parts) 8121930020 — not listed in this catalogue 8121830020 — not listed in this catalogue 8111614320 — not listed in this catalogue 81210B — BULB, FOG LAMP (23 parts) 81211C — LAMP UNIT, FOG LAMP, RH (17 parts) 81216 — RIM, FOG LAMP, NO.1 (18 parts) 81221C — LAMP UNIT, FOG LAMP, LH (18 parts) 81210 — LAMP ASSY, FOG (40 parts) 9017906165 — not listed in this catalogue 81219A — BRACKET, FOG LAMP, RH (13 parts) 81229A — BRACKET, FOG LAMP, LH (13 parts) 8121930020 — not listed in this catalogue 8121830020 — not listed in this catalogue 8111614320 — not listed in this catalogue 81215A — SOCKET & WIRE, FOG LAMP (10 parts) 81210B — BULB, FOG LAMP (23 parts) 81211C — LAMP UNIT, FOG LAMP, RH (17 parts) 81221C — LAMP UNIT, FOG LAMP, LH (18 parts) 81216 — RIM, FOG LAMP, NO.1 (18 parts)
NE5202E · 15 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
152 parts on this figure
Part number Description Fitment Price
81210 — Lamp Assy, Fog
81210-20100 note Lamp Assy, Fog
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT170,175,CT17#,ET176 ¥21,300
81210-20100 note Lamp Assy, Fog
1988-12 → 1989-03 ended
AT171,ST170 S,SE;AT175 4FC SGEXT ¥21,300
81210-20100 note Lamp Assy, Fog
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥21,300
81210-20100 note Lamp Assy, Fog
1990-05 → 1992-11 ended
CT176,ET176 ¥21,300
81210-20100 note Lamp Assy, Fog
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥21,300
81210-20100 note Lamp Assy, Fog
1989-03 → 1990-05 ended
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT ¥21,300
81210-20100 note Lamp Assy, Fog
1988-05 → 1988-12 ended
AT171,ST170 S,SE ¥21,300
81210-20110 note Lamp Assy, Fog
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥16,700
81210-20110 note Lamp Assy, Fog
1990-05 → 1992-08 ended
ST170 SE ¥16,700
81210-20110 note Lamp Assy, Fog
1990-05 → 1990-12 ended
ST170 SGEXT;AT17#,CT170 DSL,EFI ¥16,700
81210-20110 note Lamp Assy, Fog
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥16,700
81210-20110 note Lamp Assy, Fog
1990-12 → 1992-11 ended
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV ¥16,700
81210-29115 note Lamp Assy, Fog
1988-05 → 1990-05 ended
AT171 GLIM ¥17,800
81210-29115 note Lamp Assy, Fog
1989-03 → 1992-10 ended
ST170 SGEXT CI ¥17,800
81210-29115 note Lamp Assy, Fog
1989-05 → 1990-05 ended
ST170 SX ¥17,800
81210-29115 note Lamp Assy, Fog
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥17,800
81210-29115 note Lamp Assy, Fog
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥17,800
81210-29115 note Lamp Assy, Fog
1989-05 → 1989-06 ended
ST170 SX ¥17,800
81210-29115 note Lamp Assy, Fog
1988-05 → 1990-05 ended
AT171 S ¥17,800
81210-29115 note Lamp Assy, Fog
1988-05 → 1990-05 ended
ST170 SE ¥17,800
81220-20090 note Lamp Assy, Fog
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥21,300
81220-20090 note Lamp Assy, Fog
1988-12 → 1989-03 ended
AT171,ST170 S,SE;AT175 4FC SGEXT ¥21,300
81220-20090 note Lamp Assy, Fog
1990-05 → 1992-11 ended
CT176,ET176 ¥21,300
81220-20090 note Lamp Assy, Fog
1989-03 → 1990-05 ended
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT ¥21,300
81220-20090 note Lamp Assy, Fog
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥21,300
81220-20090 note Lamp Assy, Fog
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT170,175,CT17#,ET176 ¥21,300
81220-20090 note Lamp Assy, Fog
1988-05 → 1988-12 ended
AT171,ST170 S,SE ¥21,300
81220-20100 note Lamp Assy, Fog
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥16,700
81220-20100 note Lamp Assy, Fog
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥16,700
81220-20100 note Lamp Assy, Fog
1990-12 → 1992-11 ended
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV ¥16,700
81220-20100 note Lamp Assy, Fog
1990-05 → 1990-12 ended
ST170 SGEXT;AT17#,CT170 DSL,EFI ¥16,700
81220-20100 note Lamp Assy, Fog
1990-05 → 1992-08 ended
ST170 SE ¥16,700
81220-29065 note Lamp Assy, Fog
1989-05 → 1989-06 ended
ST170 SX ¥17,800
81220-29065 note Lamp Assy, Fog
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥17,800
81220-29065 note Lamp Assy, Fog
1988-05 → 1990-05 ended
AT171 GLIM ¥17,800
81220-29065 note Lamp Assy, Fog
1988-05 → 1990-05 ended
ST170 SE ¥17,800
81220-29065 note Lamp Assy, Fog
1988-05 → 1990-05 ended
AT171 S ¥17,800
81220-29065 note Lamp Assy, Fog
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥17,800
81220-29065 note Lamp Assy, Fog
1989-03 → 1992-10 ended
ST170 SGEXT CI ¥17,800
81220-29065 note Lamp Assy, Fog
1989-05 → 1990-05 ended
ST170 SX ¥17,800
81210B — Bulb, Fog Lamp
90981-13018 note Bulb, Fog Lamp
1988-05 → 1990-05 ended
ST170 SE ¥1,000
90981-13018 note Bulb, Fog Lamp
1988-12 → 1992-10 ended
AT175 SGEXT ¥1,000
90981-13018 note Bulb, Fog Lamp
1990-05 → 1990-09 ended
ST170 SGEXT;AT17#,CT17#,ET176 CBR,DSL,EFI ¥1,000
90981-13018 note Bulb, Fog Lamp
1990-05 → 1990-09 ended
ST170 SE ¥1,000
90981-13018 note Bulb, Fog Lamp
1990-05 → 1990-09 ended
AT171,ST170 S,SX ¥1,000
90981-13018 note Bulb, Fog Lamp
1989-05 → 1990-05 ended
ST170 SX ¥1,000
90981-13018 note Bulb, Fog Lamp
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT17#,CT17#,ET176 +1 ¥1,000
90981-13018 note Bulb, Fog Lamp
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥1,000
90981-13018 note Bulb, Fog Lamp
1988-05 → 1990-05 ended
AT171 S ¥1,000
90981-13018 note Bulb, Fog Lamp
1989-05 → 1989-06 ended
ST170 SX ¥1,000
90981-13018 note Bulb, Fog Lamp
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT17#,CT17#,ET176 +1 ¥1,000
90981-13018 note Bulb, Fog Lamp
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥1,000
90981-13018 note Bulb, Fog Lamp
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,GLIM,SE,SG,SGEXT,STD,SV ¥1,000
90981-13048 note Bulb, Fog Lamp
1990-09 → 1990-12 ended
ST170 SGEXT;AT17#,CT17#,ET176 CBR,DSL,EFI ¥1,000
90981-13048 note Bulb, Fog Lamp
1990-09 → 1992-08 ended
ST170 SE ¥1,000
90981-13048 note Bulb, Fog Lamp
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥1,000
90981-13048 note Bulb, Fog Lamp
1990-12 → 1992-11 ended
AT175;CT170 SE,SV;AT170,171,CT176,ET176 DX,GLIM,SE,SG,STD,SV ¥1,000
90981-13048 note Bulb, Fog Lamp
1990-09 → 1992-11 ended
AT171,ST170 S,SX ¥1,000
99132-11210 note Bulb, Fog Lamp
1990-05 → 1992-08 ended
ST170 SE ¥170
99132-11210 note Bulb, Fog Lamp
1990-12 → 1992-11 ended
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV ¥170
99132-11210 note Bulb, Fog Lamp
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥170
99132-11210 note Bulb, Fog Lamp
1990-05 → 1990-12 ended
ST170 SGEXT;AT17#,CT170 DSL,EFI ¥170
99132-11210 note Bulb, Fog Lamp
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥170
81211C — Lamp Unit, Fog Lamp, RH
81211-20090 note Lamp Unit, Fog Lamp, RH
1988-05 → 1990-05 ended
ST170 SE ¥10,500
81211-20090 note Lamp Unit, Fog Lamp, RH
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥10,500
81211-20090 note Lamp Unit, Fog Lamp, RH
1988-05 → 1990-05 ended
AT171 S ¥10,500
81211-20090 Lamp Unit, Fog Lamp, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥10,500
81211-20090 note Lamp Unit, Fog Lamp, RH
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥10,500
81211-20100 Lamp Unit, Fog Lamp, RH
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥14,700
81211-20100 Lamp Unit, Fog Lamp, RH
1988-12 → 1989-03 ended
AT171,ST170 S,SE;AT175 4FC SGEXT ¥14,700
81211-20100 Lamp Unit, Fog Lamp, RH
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT170,175,CT17#,ET176 ¥14,700
81211-20100 Lamp Unit, Fog Lamp, RH
1988-05 → 1988-12 ended
AT171,ST170 S,SE ¥14,700
81211-20100 Lamp Unit, Fog Lamp, RH
1989-03 → 1990-05 ended
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT ¥14,700
81211-20100 Lamp Unit, Fog Lamp, RH
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥14,700
81211-20100 Lamp Unit, Fog Lamp, RH
1990-05 → 1992-11 ended
CT176,ET176 ¥14,700
81211-20110 Lamp Unit, Fog Lamp, RH
1990-12 → 1992-11 ended
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV ¥13,400
81211-20110 note Lamp Unit, Fog Lamp, RH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥13,400
81211-20110 note Lamp Unit, Fog Lamp, RH
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥13,400
81211-20110 Lamp Unit, Fog Lamp, RH
1990-05 → 1990-12 ended
ST170 SGEXT;AT17#,CT170 DSL,EFI ¥13,400
81211-20110 note Lamp Unit, Fog Lamp, RH
1990-05 → 1992-08 ended
ST170 SE ¥13,400
81215A — Socket & Wire, Fog Lamp
81215-20090 note Socket & Wire, Fog Lamp
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥710
81215-20090 Socket & Wire, Fog Lamp
1988-05 → 1990-05 ended
AT171 GLIM ¥710
81215-20090 note Socket & Wire, Fog Lamp
1988-05 → 1990-05 ended
ST170 SE ¥710
81215-20090 note Socket & Wire, Fog Lamp
1988-05 → 1990-05 ended
AT171 S ¥710
81215-20090 note Socket & Wire, Fog Lamp
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥710
81215-20110 note Socket & Wire, Fog Lamp
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥1,200
81215-20110 Socket & Wire, Fog Lamp
1990-12 → 1992-11 ended
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV ¥1,200
81215-20110 note Socket & Wire, Fog Lamp
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥1,200
81215-20110 note Socket & Wire, Fog Lamp
1990-05 → 1992-08 ended
ST170 SE ¥1,200
81215-20110 Socket & Wire, Fog Lamp
1990-05 → 1990-12 ended
ST170 SGEXT;AT17#,CT170 DSL,EFI ¥1,200
81216 — Rim, Fog Lamp, NO.1
81216-20090 note Rim, Fog Lamp, NO.1
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,GLIM,SE,SG,SGEXT,STD,SV ¥1,810
81216-20090 note Rim, Fog Lamp, NO.1
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT17#,CT17#,ET176 +1 ¥1,810
81216-20090 note Rim, Fog Lamp, NO.1
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥1,810
81216-20090 note Rim, Fog Lamp, NO.1
1989-05 → 1990-05 ended
ST170 SX ¥1,810
81216-20090 note Rim, Fog Lamp, NO.1
1988-05 → 1990-05 ended
ST170 SE ¥1,810
81216-20090 note Rim, Fog Lamp, NO.1
1988-05 → 1990-05 ended
AT171 S ¥1,810
81216-20090 note Rim, Fog Lamp, NO.1
1990-05 → 1992-11 ended
CT176,ET176 ¥1,810
81216-20090 note Rim, Fog Lamp, NO.1
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT17#,CT17#,ET176 +1 ¥1,810
81216-20090 note Rim, Fog Lamp, NO.1
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1990-05 → 1992-11 ended
CT176,ET176 ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1989-05 → 1990-05 ended
ST170 SX ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT17#,CT17#,ET176 +1 ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT17#,CT17#,ET176 +1 ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1988-05 → 1990-05 ended
ST170 SE ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1988-05 → 1990-05 ended
AT171 S ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥1,810
81226-20080 note Rim, Fog Lamp, NO.1
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,GLIM,SE,SG,SGEXT,STD,SV ¥1,810
81219A — Bracket, Fog Lamp, RH
81219-20090 note Bracket, Fog Lamp, RH
1988-05 → 1990-05 ended
AT171 S ¥2,210
81219-20090 note Bracket, Fog Lamp, RH
1989-05 → 1990-05 ended
ST170 SX ¥2,210
81219-20090 note Bracket, Fog Lamp, RH
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥2,210
81219-20090 note Bracket, Fog Lamp, RH
1988-05 → 1990-05 ended
ST170 SE ¥2,210
81219-20090 Bracket, Fog Lamp, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥2,210
81219-20090 note Bracket, Fog Lamp, RH
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥2,210
81219-20100 Bracket, Fog Lamp, RH
1988-12 → 1989-03 ended
AT171,ST170 S,SE;AT175 4FC SGEXT ¥2,190
81219-20100 Bracket, Fog Lamp, RH
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT170,175,CT17#,ET176 ¥2,190
81219-20100 Bracket, Fog Lamp, RH
1989-03 → 1990-05 ended
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT ¥2,190
81219-20100 Bracket, Fog Lamp, RH
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥2,190
81219-20100 Bracket, Fog Lamp, RH
1988-05 → 1988-12 ended
AT171,ST170 S,SE ¥2,190
81219-20100 Bracket, Fog Lamp, RH
1990-05 → 1992-11 ended
CT176,ET176 ¥2,190
81219-20100 Bracket, Fog Lamp, RH
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥2,190
81221C — Lamp Unit, Fog Lamp, LH
81221-20080 note Lamp Unit, Fog Lamp, LH
1989-05 → 1990-05 ended
ST170 SX ¥10,500
81221-20080 note Lamp Unit, Fog Lamp, LH
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥10,500
81221-20080 note Lamp Unit, Fog Lamp, LH
1988-05 → 1990-05 ended
AT171 S ¥10,500
81221-20080 note Lamp Unit, Fog Lamp, LH
1988-05 → 1990-05 ended
ST170 SE ¥10,500
81221-20080 Lamp Unit, Fog Lamp, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥10,500
81221-20080 note Lamp Unit, Fog Lamp, LH
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥10,500
81221-20090 Lamp Unit, Fog Lamp, LH
1988-12 → 1989-03 ended
AT171,ST170 S,SE;AT175 4FC SGEXT ¥14,700
81221-20090 Lamp Unit, Fog Lamp, LH
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT170,175,CT17#,ET176 ¥14,700
81221-20090 Lamp Unit, Fog Lamp, LH
1989-03 → 1990-05 ended
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT ¥14,700
81221-20090 Lamp Unit, Fog Lamp, LH
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥14,700
81221-20090 Lamp Unit, Fog Lamp, LH
1988-05 → 1988-12 ended
AT171,ST170 S,SE ¥14,700
81221-20090 Lamp Unit, Fog Lamp, LH
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥14,700
81221-20090 Lamp Unit, Fog Lamp, LH
1990-05 → 1992-11 ended
CT176,ET176 ¥14,700
81221-20100 Lamp Unit, Fog Lamp, LH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥13,400
81221-20100 Lamp Unit, Fog Lamp, LH
1990-12 → 1992-11 ended
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV ¥13,400
81221-20100 note Lamp Unit, Fog Lamp, LH
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥13,400
81221-20100 Lamp Unit, Fog Lamp, LH
1990-05 → 1992-08 ended
ST170 SE ¥13,400
81221-20100 Lamp Unit, Fog Lamp, LH
1990-05 → 1990-12 ended
ST170 SGEXT;AT17#,CT170 DSL,EFI ¥13,400
81229A — Bracket, Fog Lamp, LH
81229-20080 note Bracket, Fog Lamp, LH
1989-05 → 1990-05 ended
ST170 SX ¥2,210
81229-20080 note Bracket, Fog Lamp, LH
1988-12 → 1989-03 ended
AT175 4FC SGEXT ¥2,210
81229-20080 Bracket, Fog Lamp, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥2,210
81229-20080 note Bracket, Fog Lamp, LH
1988-05 → 1990-05 ended
ST170 SE ¥2,210
81229-20080 note Bracket, Fog Lamp, LH
1988-05 → 1990-05 ended
AT171 S ¥2,210
81229-20080 note Bracket, Fog Lamp, LH
1989-03 → 1990-05 ended
ST170 SGEXT;AT175 4FC SGEXT ¥2,210
81229-20090 Bracket, Fog Lamp, LH
1990-05 → 1992-11 ended
CT176,ET176 ¥2,190
81229-20090 Bracket, Fog Lamp, LH
1989-03 → 1990-05 ended
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥2,190
81229-20090 Bracket, Fog Lamp, LH
1989-03 → 1990-05 ended
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT ¥2,190
81229-20090 Bracket, Fog Lamp, LH
1988-12 → 1989-03 ended
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 ¥2,190
81229-20090 Bracket, Fog Lamp, LH
1988-12 → 1989-03 ended
AT171,ST170 S,SE;AT175 4FC SGEXT ¥2,190
81229-20090 Bracket, Fog Lamp, LH
1988-05 → 1988-12 ended
ST170 SGEXT,SX;AT170,175,CT17#,ET176 ¥2,190
81229-20090 Bracket, Fog Lamp, LH
1988-05 → 1988-12 ended
AT171,ST170 S,SE ¥2,190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
