Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

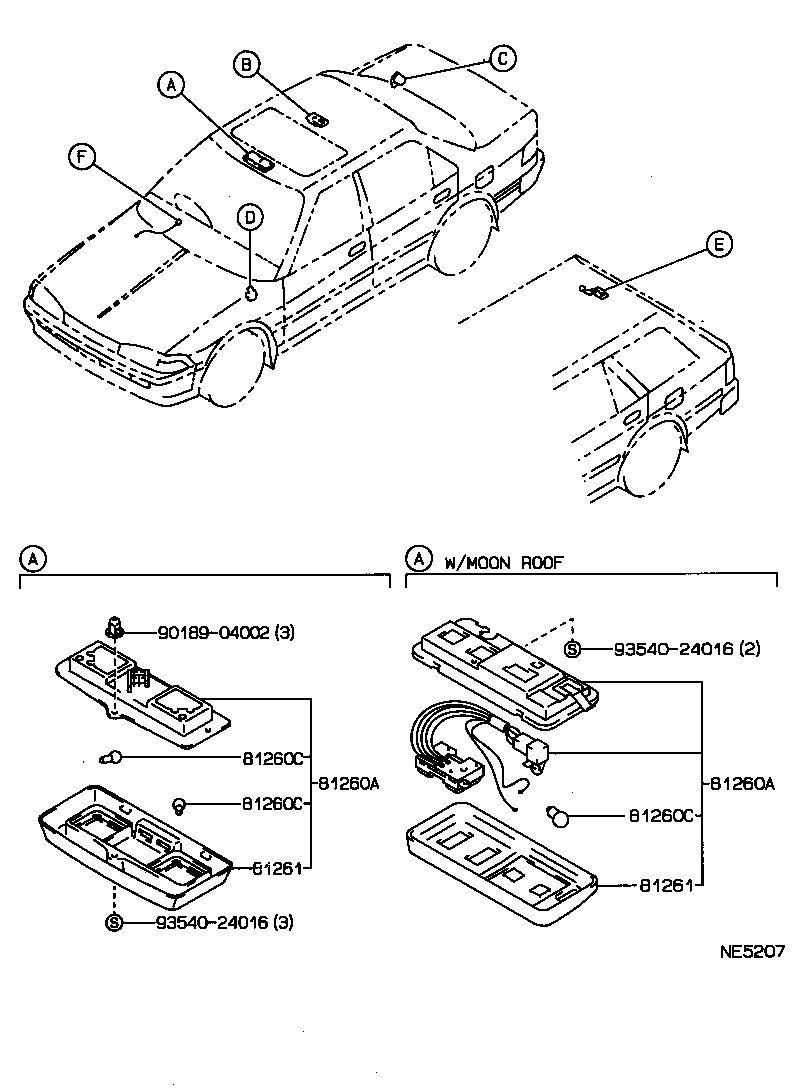

Exploded illustration NE5207 9018904002 — not listed in this catalogue 9354024016 — not listed in this catalogue 81260C — BULB(FOR MAP LAMP) (4 parts) 81260A — LAMP ASSY, MAP (16 parts) 81260A — LAMP ASSY, MAP (16 parts) 81260C — BULB(FOR MAP LAMP) (4 parts) 81260C — BULB(FOR MAP LAMP) (4 parts) 81261 — LENS AND COVER, MAP LAMP (19 parts) 81261 — LENS AND COVER, MAP LAMP (19 parts) 9354024016 — not listed in this catalogue
NE5207 · 7 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
81260A — Lamp Assy, Map
81260-20130-03 note Lamp Assy, Map
1988-05 → 1992-08 ended
AT171,175,CT170,ST170 GLIM,SE ¥7,500
81260-20130-04 note Lamp Assy, Map
1988-05 → 1990-05 ended
CT170,ST170 SE ¥7,500
81260-20130-06 note Lamp Assy, Map
1988-05 → 1990-05 ended
AT171,CT170,ST170 GLIM,SE ¥7,500
81260-20130-06 note Lamp Assy, Map
1990-05 → 1992-08 ended
AT175,CT170,ST170 SE ¥7,500
81260-20130-14 note Lamp Assy, Map
1990-05 → 1992-08 ended
AT175,CT170,ST170 SE ¥7,500
81260-20150-03 note Lamp Assy, Map
1988-05 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥15,500
81260-20150-03 note Lamp Assy, Map
1988-05 → 1990-05 ended
AT170,171 S,SE,SG,SV;AT175,ST170 SGEXT,SX ¥15,500
81260-20150-03 note Lamp Assy, Map
1990-05 → 1992-11 ended
AT170,171 S,SE,SV;CT170,ST170 SGEXT,SV,SX ¥15,500
81260-20150-04 note Lamp Assy, Map
1988-05 → 1990-05 ended
CT170,ST170 SE ¥15,500
81260-20150-04 note Lamp Assy, Map
1988-05 → 1990-05 ended
AT170,171 S,SE,SG;AT175,ST170 SGEXT ¥15,500
81260-20150-06 note Lamp Assy, Map
1988-05 → 1990-05 ended
AT170,171 S,SE,SG,SV;AT175,ST170 SGEXT,SX ¥15,500
81260-20150-06 note Lamp Assy, Map
1988-05 → 1990-05 ended
AT171,CT170,ST170 GLIM,SE ¥15,500
81260-20150-06 note Lamp Assy, Map
1990-05 → 1992-08 ended
CT170,ST170 SE ¥15,500
81260-20150-06 note Lamp Assy, Map
1990-05 → 1992-11 ended
AT170,171 S,SE;ST170 SGEXT,SX ¥15,500
81260-20150-14 note Lamp Assy, Map
1990-05 → 1992-08 ended
ST170 SGEXT;AT170,171 S,SE ¥15,500
81260-20150-14 note Lamp Assy, Map
1990-05 → 1992-08 ended
CT170,ST170 SE ¥15,500
81260C — Bulb(FOR MAP LAMP)
90981-12005 note Bulb(FOR MAP LAMP)
1988-05 → 1992-08 ended
AT171,175,CT170,ST170 GLIM,SE ¥140
90981-12014 note Bulb(FOR MAP LAMP)
1990-05 → 1992-11 ended
ST170 SGEXT,SX;AT170,171,CT170 GLIM,S,SE,SV ¥170
90981-12014 note Bulb(FOR MAP LAMP)
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥170
90981-12014 note Bulb(FOR MAP LAMP)
1990-05 → 1992-08 ended
ST170 SE ¥170
81261 — Lens And Cover, Map Lamp
81261-20130-03 note Lens And Cover, Map Lamp
1988-05 → 1992-08 ended
AT171,175,CT170,ST170 GLIM,SE ¥2,290
81261-20130-04 note Lens And Cover, Map Lamp
1988-05 → 1990-05 ended
CT170,ST170 SE ¥2,290
81261-20130-06 note Lens And Cover, Map Lamp
1988-05 → 1989-08 ended
AT171,CT170,ST170 GLIM,SE ¥2,260
81261-20130-06 note Lens And Cover, Map Lamp
1989-08 → 1990-05 ended
AT171 GLIM ¥2,260
81261-20130-06 note Lens And Cover, Map Lamp
1990-05 → 1992-08 ended
AT175,CT170,ST170 SE ¥2,260
81261-20130-14 note Lens And Cover, Map Lamp
1990-05 → 1992-08 ended
AT175,CT170,ST170 SE ¥2,290
81261-20150-03 note Lens And Cover, Map Lamp
1990-05 → 1992-11 ended
AT170,171 S,SE,SV;CT170,ST170 SGEXT,SV,SX ¥2,490
81261-20150-03 note Lens And Cover, Map Lamp
1988-05 → 1990-05 ended
AT170,171 S,SE,SG,SV;AT175,ST170 SGEXT,SX ¥2,490
81261-20150-03 note Lens And Cover, Map Lamp
1988-05 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥2,490
81261-20150-04 note Lens And Cover, Map Lamp
1988-05 → 1990-05 ended
AT170,171 S,SE,SG;AT175,ST170 SGEXT ¥2,490
81261-20150-04 note Lens And Cover, Map Lamp
1988-05 → 1990-05 ended
CT170,ST170 SE ¥2,490
81261-20150-06 note Lens And Cover, Map Lamp
1990-05 → 1992-11 ended
AT170,171 S,SE;ST170 SGEXT,SX ¥2,490
81261-20150-06 note Lens And Cover, Map Lamp
1990-05 → 1992-08 ended
CT170,ST170 SE ¥2,490
81261-20150-06 note Lens And Cover, Map Lamp
1989-08 → 1990-05 ended
AT171 GLIM ¥2,490
81261-20150-06 note Lens And Cover, Map Lamp
1989-08 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 S,SE,SG,SGEXT,SV,SX ¥2,490
81261-20150-06 note Lens And Cover, Map Lamp
1988-05 → 1989-08 ended
AT171,CT170,ST170 GLIM,SE ¥2,490
81261-20150-06 note Lens And Cover, Map Lamp
1988-05 → 1989-08 ended
AT170,171 S,SE,SG,SV;AT175,ST170 SGEXT,SX ¥2,490
81261-20150-14 note Lens And Cover, Map Lamp
1990-05 → 1992-08 ended
ST170 SGEXT;AT170,171 S,SE ¥2,490
81261-20150-14 note Lens And Cover, Map Lamp
1990-05 → 1992-08 ended
CT170,ST170 SE ¥2,490
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
