Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

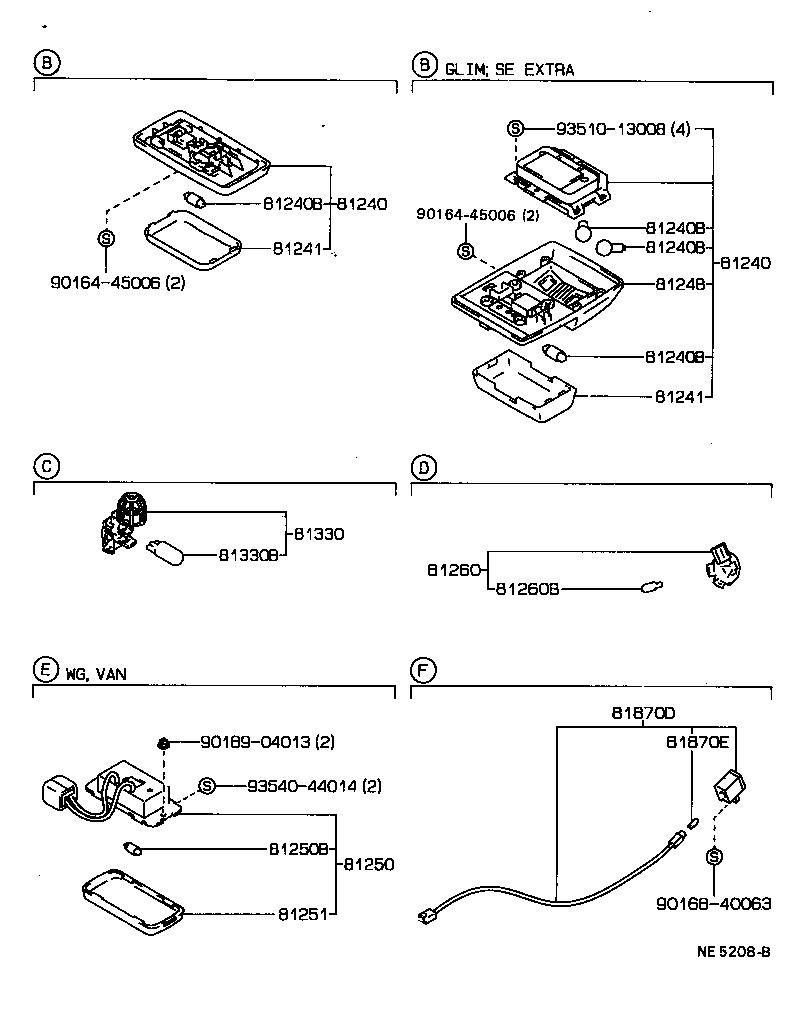

Exploded illustration NE5208B 9351013008 — not listed in this catalogue 81240B — BULB, ROOM LAMP, NO.1 (3 parts) 81240 — LAMP ASSY, ROOM, NO.1 (25 parts) 9016445006 — not listed in this catalogue 81240B — BULB, ROOM LAMP, NO.1 (3 parts) 81240B — BULB, ROOM LAMP, NO.1 (3 parts) 81241 — LENS, ROOM LAMP, NO.1 (6 parts) 81240 — LAMP ASSY, ROOM, NO.1 (25 parts) 9016445006 — not listed in this catalogue 81248 — COVER, ROOM LAMP, NO.1 (6 parts) 81240B — BULB, ROOM LAMP, NO.1 (3 parts) 81241 — LENS, ROOM LAMP, NO.1 (6 parts) 81330 — LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 (1 parts) 81330B — BULB, LUGGAGE COMPARTMENT LAMP (1 parts) 81260 — LAMP ASSY, GLOVE BOX (3 parts) 81260B — BULB(FOR GLOVE BOX) (3 parts) 81870D — LAMP ASSY, KEY CYLINDER (6 parts) 9018904013 — not listed in this catalogue 81870E — BULB, KEY CYLINDER LAMP (6 parts) 9354044014 — not listed in this catalogue 81250B — BULB, ROOM LAMP, NO.2 (1 parts) 81250 — LAMP ASSY, ROOM, NO.2 (1 parts) 9016840063 — not listed in this catalogue 81251 — LENS, ROOM LAMP, NO.2 (1 parts)
NE5208B · 18 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
81240 — Lamp Assy, Room, NO.1
81240-12020-03 note Lamp Assy, Room, NO.1
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥3,590
81240-12020-03 note Lamp Assy, Room, NO.1
1990-05 → 1991-06 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥3,590
81240-12020-04 note Lamp Assy, Room, NO.1
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 S,SE,SG,SGEXT ¥3,590
81240-12020-06 note Lamp Assy, Room, NO.1
1988-05 → 1990-05 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT ¥3,590
81240-12020-06 note Lamp Assy, Room, NO.1
1990-05 → 1992-08 ended
ST170 SED;AT170,171,CT170 S,SE ¥3,590
81240-12020-14 note Lamp Assy, Room, NO.1
1990-05 → 1991-06 ended
ST170 SED;AT170,171,CT170 S,SE ¥3,590
81240-12020-S3 note Lamp Assy, Room, NO.1
1991-06 → 1992-08 ended
ST170 SED;AT170,171,CT170 GLIM,S,SE ¥3,590
81240-12020-W5 note Lamp Assy, Room, NO.1
1991-06 → 1992-08 ended
ST170 SED;AT170,171,CT170 S,SE ¥3,590
81240-12030-03 note Lamp Assy, Room, NO.1
1988-05 → 1991-06 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥3,450
81240-12030-04 note Lamp Assy, Room, NO.1
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,450
81240-12030-06 note Lamp Assy, Room, NO.1
1988-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,450
81240-12030-14 note Lamp Assy, Room, NO.1
1990-05 → 1991-06 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,450
81240-12030-S3 note Lamp Assy, Room, NO.1
1991-06 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥3,450
81240-12030-W5 note Lamp Assy, Room, NO.1
1991-06 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥3,450
81240-20090-03 note Lamp Assy, Room, NO.1
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥3,110
81240-20090-06 note Lamp Assy, Room, NO.1
1988-05 → 1992-11 ended
ST170 SX;AT170 SV CBR ¥3,110
81240-20100-03 note Lamp Assy, Room, NO.1
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥3,110
81240-20100-06 note Lamp Assy, Room, NO.1
1990-05 → 1992-11 ended
ST170 SX ¥3,110
81240-20100-06 note Lamp Assy, Room, NO.1
1988-05 → 1990-05 ended
AT170,CT176,ET176,ST170 (VAN,WG) (DX,SG,SV,SX) ¥3,110
81240-22040-06 note Lamp Assy, Room, NO.1
1988-05 → 1992-08 ended
ST170 SE ¥10,600
81240-22040-06 note Lamp Assy, Room, NO.1
1988-05 → 1990-05 ended
AT171 GLIM ¥10,600
81240-22040-13 note Lamp Assy, Room, NO.1
1988-05 → 1992-08 ended
ST170 SE ¥10,600
81240-22040-13 note Lamp Assy, Room, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥10,600
81240-22040-24 note Lamp Assy, Room, NO.1
1988-05 → 1990-05 ended
ST170 SE ¥10,600
81240-22040-34 note Lamp Assy, Room, NO.1
1990-05 → 1992-08 ended
ST170 SE ¥10,600
81240B — Bulb, Room Lamp, NO.1
90981-12005 note Bulb, Room Lamp, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥140
90981-12005 note Bulb, Room Lamp, NO.1
1988-05 → 1992-08 ended
ST170 SE ¥140
99132-12100 note Bulb, Room Lamp, NO.1
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥150
81241 — Lens, Room Lamp, NO.1
81241-12020 Lens, Room Lamp, NO.1
1988-05 → 1992-08 ended
AT17#,CT170,ST170 DX,S,SE,SG,SGEXT ¥400
81241-12020 note Lens, Room Lamp, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥400
81241-12020 note Lens, Room Lamp, NO.1
1988-05 → 1992-08 ended
ST170 SE ¥400
81241-20090 Lens, Room Lamp, NO.1
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥940
81241-22040 Lens, Room Lamp, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥770
81241-22040 note Lens, Room Lamp, NO.1
1988-05 → 1992-08 ended
ST170 SE ¥770
81248 — Cover, Room Lamp, NO.1
81248-22040-06 note Cover, Room Lamp, NO.1
1988-05 → 1990-05 ended
AT171 GLIM ¥4,120
81248-22040-06 note Cover, Room Lamp, NO.1
1989-08 → 1992-08 ended
ST170 SE ¥4,120
81248-22040-13 note Cover, Room Lamp, NO.1
1988-05 → 1992-08 ended
AT171 GLIM ¥4,120
81248-22040-13 note Cover, Room Lamp, NO.1
1989-05 → 1992-08 ended
ST170 SE ¥4,120
81248-22040-24 note Cover, Room Lamp, NO.1
1989-05 → 1990-05 ended
ST170 SE ¥4,120
81248-22040-34 note Cover, Room Lamp, NO.1
1990-05 → 1992-08 ended
ST170 SE ¥4,120
81250 — Lamp Assy, Room, NO.2
81250-95500 Lamp Assy, Room, NO.2
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥3,350
81250B — Bulb, Room Lamp, NO.2
99132-12100 note Bulb, Room Lamp, NO.2
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥150
81251 — Lens, Room Lamp, NO.2
81251-23010 Lens, Room Lamp, NO.2
1988-05 → 1992-11 ended
AT170,CT17#,ET176,ST170 VAN,WG ¥670
81260 — Lamp Assy, Glove Box
81260-32071 note Lamp Assy, Glove Box
1988-05 → 1990-05 ended
AT175,ST170 SGEXT ¥1,070
81260-32071 Lamp Assy, Glove Box
1988-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥1,070
81260-32071 note Lamp Assy, Glove Box
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥1,070
81260B — Bulb(FOR GLOVE BOX)
90981-11018 note Bulb(FOR GLOVE BOX)
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥140
90981-11018 note Bulb(FOR GLOVE BOX)
1988-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥140
90981-11018 note Bulb(FOR GLOVE BOX)
1988-05 → 1990-05 ended
AT175,ST170 SGEXT ¥140
81330 — Lamp Assy, Luggage Compartment, NO.1
81330-30090 Lamp Assy, Luggage Compartment, NO.1
1988-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT ¥1,110
81330B — Bulb, Luggage Compartment Lamp
90981-11020 note Bulb, Luggage Compartment Lamp
1988-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT ¥170
81870D — Lamp Assy, Key Cylinder
81850-20190 note Lamp Assy, Key Cylinder
1989-03 → 1989-09 ended
ST170 SGEXT ¥4,430
81850-20190 note Lamp Assy, Key Cylinder
1989-09 → 1990-05 ended
ST170 4FC SGEXT ¥4,430
81850-20190 note Lamp Assy, Key Cylinder
1989-09 → 1990-05 ended
AT170,CT170 SG ¥4,430
81850-20190 note Lamp Assy, Key Cylinder
1989-09 → 1990-05 ended
ST170 5F SGEXT ¥4,430
81850-20190 Lamp Assy, Key Cylinder
1988-05 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥4,430
81850-20190 note Lamp Assy, Key Cylinder
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥4,430
81870E — Bulb, Key Cylinder Lamp
90981-11014 note Bulb, Key Cylinder Lamp
1989-03 → 1989-09 ended
ST170 SGEXT ¥120
90981-11014 note Bulb, Key Cylinder Lamp
1989-09 → 1990-05 ended
AT170,CT170 SG ¥120
90981-11014 note Bulb, Key Cylinder Lamp
1989-09 → 1990-05 ended
ST170 4FC SGEXT ¥120
90981-11014 note Bulb, Key Cylinder Lamp
1989-09 → 1990-05 ended
ST170 5F SGEXT ¥120
90981-11014 note Bulb, Key Cylinder Lamp
1988-05 → 1992-08 ended
AT171,CT170,ST170 GLIM,SE ¥120
90981-11014 note Bulb, Key Cylinder Lamp
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
