Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

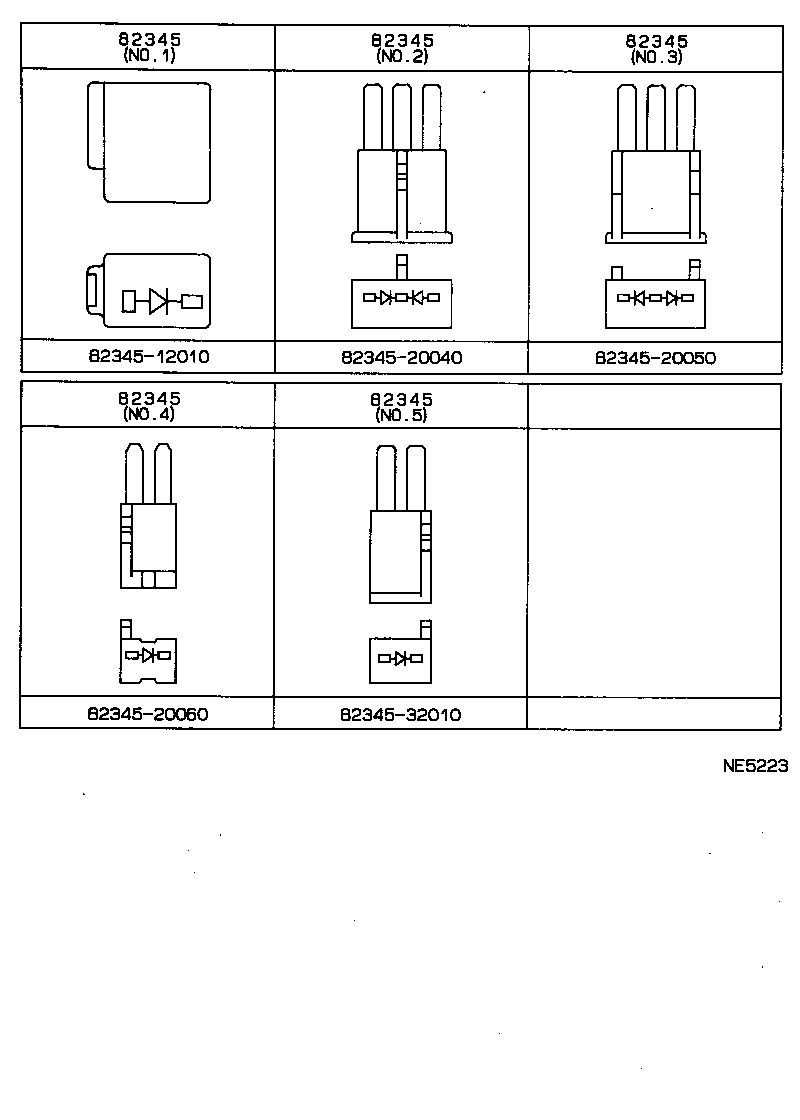

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82345 — Diode | ||||
| 82345-12010 note |
Diode
1988-05 → 1989-03
ended
|
AT170 5F SG | ¥1,290 | |
| 82345-12010 note |
Diode
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥1,290 | |
| 82345-12010 note |
Diode
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥1,290 | |
| 82345-12010 note |
Diode
1989-03 → 1990-05
ended
|
ST170 SGEXT | ¥1,290 | |
| 82345-12010 note |
Diode
1988-05 → 1990-05
ended
|
AT170 4FC;AT170 MTM (DX,SE,SV) | ¥1,290 | |
| 82345-12010 note |
Diode
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥1,290 | |
| 82345-20040 note |
Diode
1990-05 → 1992-11
ended
|
ET176 | ¥850 | |
| 82345-20040 note |
Diode
1988-05 → 1992-11
ended
|
AT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX | ¥850 | |
| 82345-20040 note |
Diode
1988-05 → 1992-08
ended
|
AT171 GLIM | ¥850 | |
| 82345-20050 note |
Diode
1988-05 → 1992-11
ended
|
AT17# 4FC (DX,S,SE,SG,SGEXT,SV) | ¥850 | |
| 82345-20060 note |
Diode
1988-05 → 1990-05
ended
|
CT170 SG;AT170,CT176,ET176,ST170 VAN,WG | ¥850 | |
| 82345-20060 note |
Diode
1990-05 → 1992-11
ended
|
CT17# DX,SG,SV | ¥850 | |
| 82345-20060 note |
Diode
1990-05 → 1992-11
ended
|
AT170,ET176,ST170 VAN,WG | ¥850 | |
| 82345-32010 note |
Diode
1990-05 → 1992-11
ended
|
ST170 SX | ¥850 | |
| 82345-32010 note |
Diode
1990-05 → 1992-11
ended
|
CT170 SV | ¥850 | |
| 82345-32010 note |
Diode
1991-06 → 1992-11
ended
|
CT170 SG,SGEXT,SV) SE;AT170 SED +6 | ¥850 | |
| 82345-32010 note |
Diode
1991-06 → 1992-11
ended
|
CT176 4FC;AT170,CT170,ST170 WG | ¥850 | |
| 82345-32010 note |
Diode
1990-12 → 1992-08
ended
|
CT170 SG | ¥850 | |
| 82345-32010 note |
Diode
1990-05 → 1991-06
ended
|
CT170 (SE,SG,SGEXT,SV) SE;AT170 SED +5 | ¥850 | |
| 82345-32010 note |
Diode
1988-05 → 1991-06
ended
|
AT170,CT170,ST170 WG (DSL,EFI) | ¥850 | |
| 82345-32010 note |
Diode
1989-11 → 1990-05
ended
|
AT170 4FC;AT170 5F (SE,SV);AT171,175,CT170,ST170 +1 | ¥850 | |
| 82345-32010 note |
Diode
1989-03 → 1990-05
ended
|
CT170 SG | ¥850 | |
| 82345-32010 note |
Diode
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥850 | |
| 82345-32010 note |
Diode
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥850 | |
| 82345-32010 note |
Diode
1989-03 → 1989-11
ended
|
CT170 SE;AT170 4FC;AT171,175,ST170;AT170 5F +1 | ¥850 | |
| 82345-32010 note |
Diode
1988-05 → 1989-03
ended
|
AT170 4FC;AT170 5F (SE,SV);AT171,175,CT170,ST170 | ¥850 | |
| 82345-32010 note |
Diode
1988-05 → 1989-03
ended
|
AT170 5F SG | ¥850 | |
| 82345-32010 note |
Diode
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥850 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
