Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

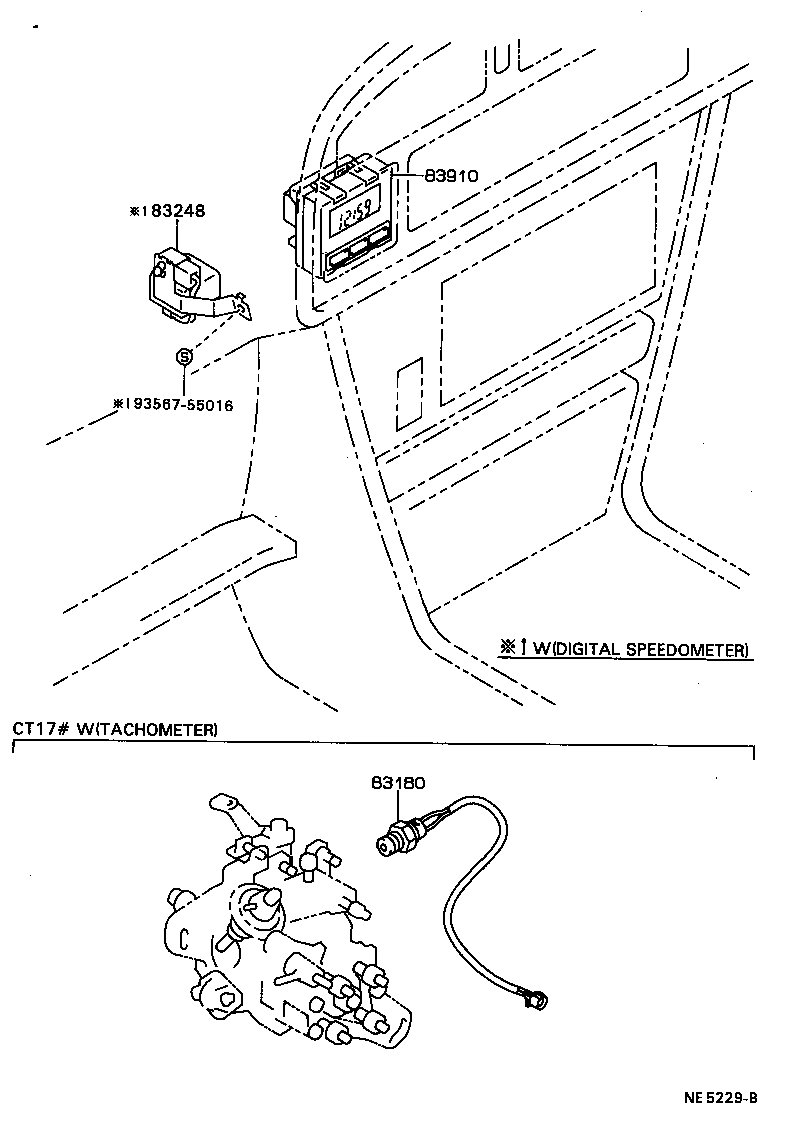

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83180 — Detector Assy, Revolution | ||||
| 83180-32020 |
Detector Assy, Revolution
1988-05 → 1992-11
ended
|
CT17# | — | |
| 83248 — Chime, Speed Warning | ||||
| 86640-20080 |
Chime, Speed Warning
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥2,550 | |
| 86640-20080 |
Chime, Speed Warning
1990-05 → 1992-08
ended
|
AT171,ST170 GLIM,SE | ¥2,550 | |
| 86640-20080 |
Chime, Speed Warning
1990-05 → 1992-11
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,S,SE,SG,SGEXT,STD,SV | ¥2,550 | |
| 86640-20160 note |
Chime, Speed Warning
1988-05 → 1990-05
ended
|
AT171 4FC GLIM | ¥2,550 | |
| 86640-20160 note |
Chime, Speed Warning
1988-05 → 1990-05
ended
|
ST170 4FC SE | ¥2,550 | |
| 86640-20160 note |
Chime, Speed Warning
1988-05 → 1990-05
ended
|
AT171,ST170 5F (GLIM,SE) | ¥2,550 | |
| 86640-20160 note |
Chime, Speed Warning
1990-05 → 1992-08
ended
|
AT171 4FC EFI | ¥2,550 | |
| 86640-20160 note |
Chime, Speed Warning
1990-05 → 1992-08
ended
|
AT171,ST170 5F (GLIM,SE) | ¥2,550 | |
| 86640-20160 note |
Chime, Speed Warning
1990-05 → 1992-08
ended
|
ST170 4FC SE | ¥2,550 | |
| 83910 — Clock Assy | ||||
| 83910-20430 |
Clock Assy
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥30,400 | |
| 83910-20630 note |
Clock Assy
1990-05 → 1992-08
ended
|
AT170 (4FC,5F) (SE,SGEXT);AT171,175,CT170,ST170 GLIM,S,SE | ¥30,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
