Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

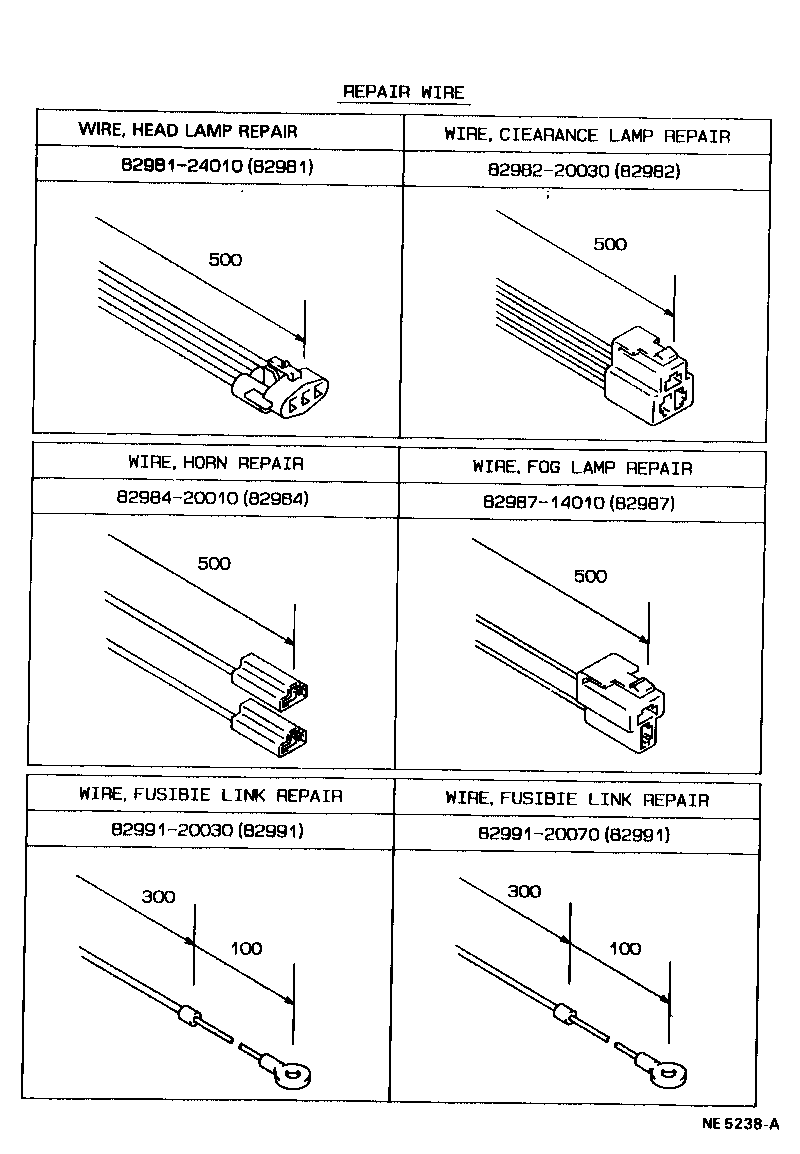

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82981 — Wire, Headlamp Repair | ||||
| 82981-24010 |
Wire, Headlamp Repair
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥950 | |
| 82982 — Wire, Clearance Lamp Repair | ||||
| 82982-20030 |
Wire, Clearance Lamp Repair
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥950 | |
| 82982-20060 |
Wire, Clearance Lamp Repair
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥1,420 | |
| 82984 — Wire, Horn Repair | ||||
| 82984-20010 |
Wire, Horn Repair
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥300 | |
| 82987 — Wire, Fog Lamp Repair | ||||
| 82987-14010 |
Wire, Fog Lamp Repair
1988-05 → 1990-05
ended
|
AT17#,CT17#,ET176,ST170 | ¥490 | |
| 82987-20060 |
Wire, Fog Lamp Repair
1990-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥950 | |
| 82991 — Wire, Fusible Link Repair | ||||
| 82991-20030 note |
Wire, Fusible Link Repair
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥950 | |
| 82991-20070 note |
Wire, Fusible Link Repair
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | ¥950 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
