Factory parts data · Europe

Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

3 part groups · 3 illustrations

Illustrations

Figure NB0756D

NB0756D 1988-05 → 1990-05

Figure NB0756D

NB0756D 1990-05 → —

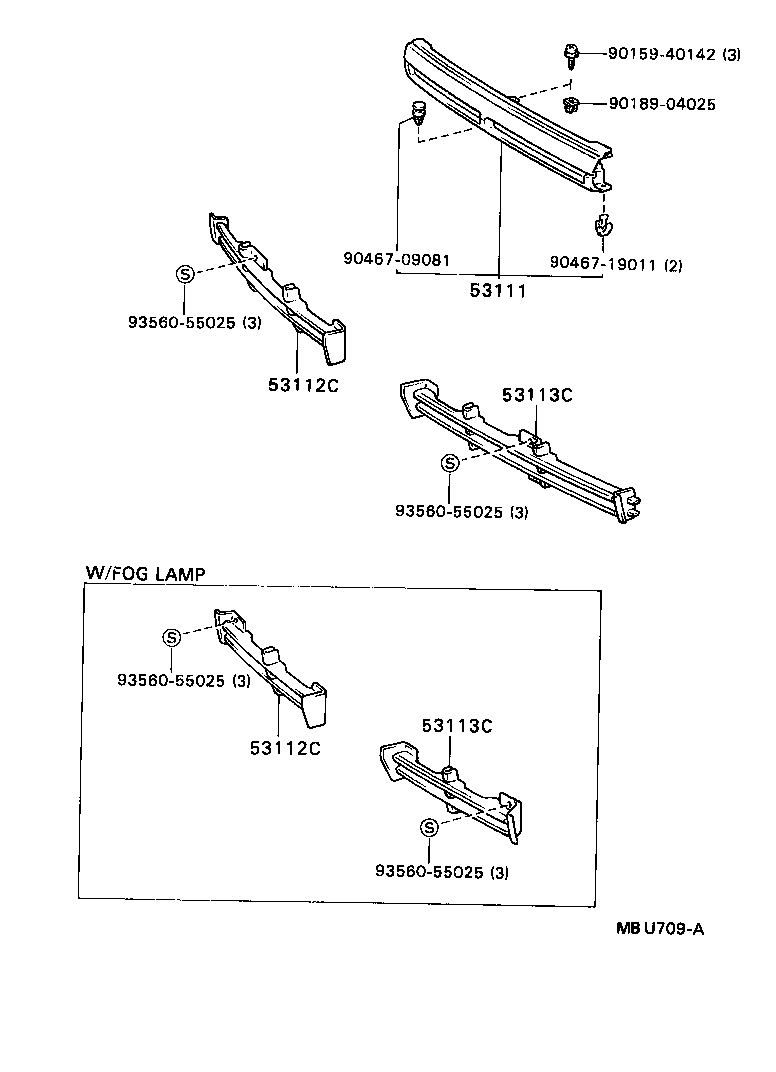

Figure MBU709A

MBU709A 1990-05 → —

Part groups

PNC	Description
53111	Grille, Radiator
53112C	Grille, Radiator, Lower RH
53113C	Grille, Radiator, Lower LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
