Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

17 part groups · 2 illustrations

Illustrations

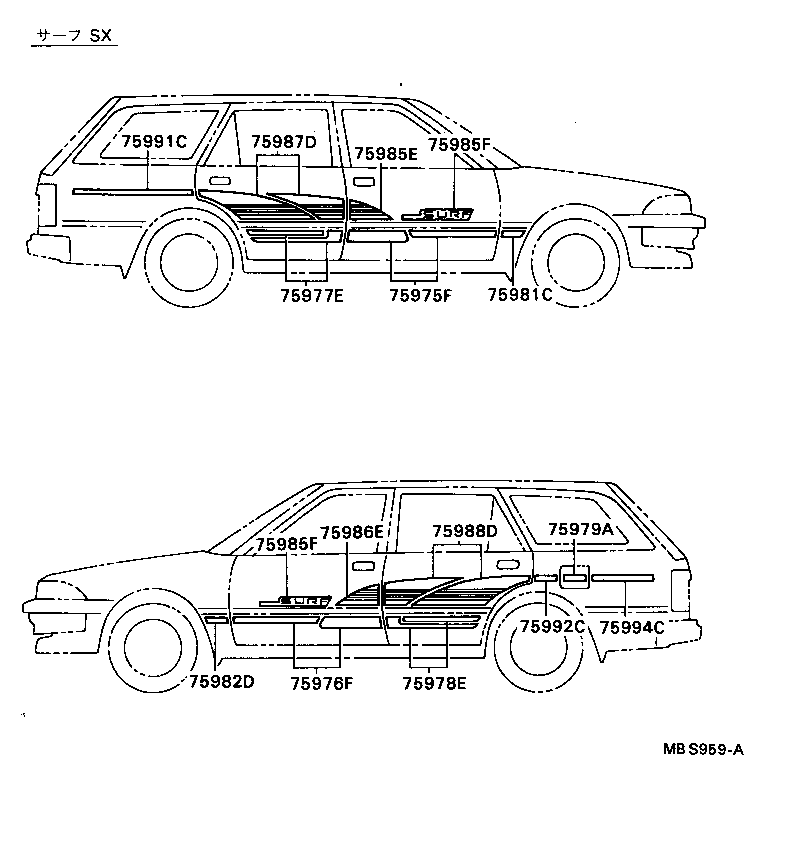

Figure NB0780A NB0780A 1988-05 → — Figure MBS959A MBS959A 1989-05 → —

Part groups

PNCDescription
75975F Stripe, Front Door Outside, Lower RH
75976F Stripe, Front Door Outside, Lower LH
75977E Stripe, Rear Door Outside, Lower RH
75978E Stripe, Rear Door Outside, Lower LH
75979A Stripe, Fuel Filler Opening Lid
75981C Stripe, Front Fender, Front RH
75982D Stripe, Fender, LH
75985E Stripe, Front Door Outside, RH
75985F Stripe, Front Door Outside
75986E Stripe, Front Door Outside, LH
75987 Stripe, Rear Door, RH
75987D Stripe, Rear Door, Outside, RH
75988 Stripe, Rear Door, LH
75988D Stripe, Rear Door Outside, LH
75991C Stripe, Quarter RH
75992C Stripe, Quarter LH
75994C Stripe, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
