Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

18 part groups · 4 illustrations

Illustrations

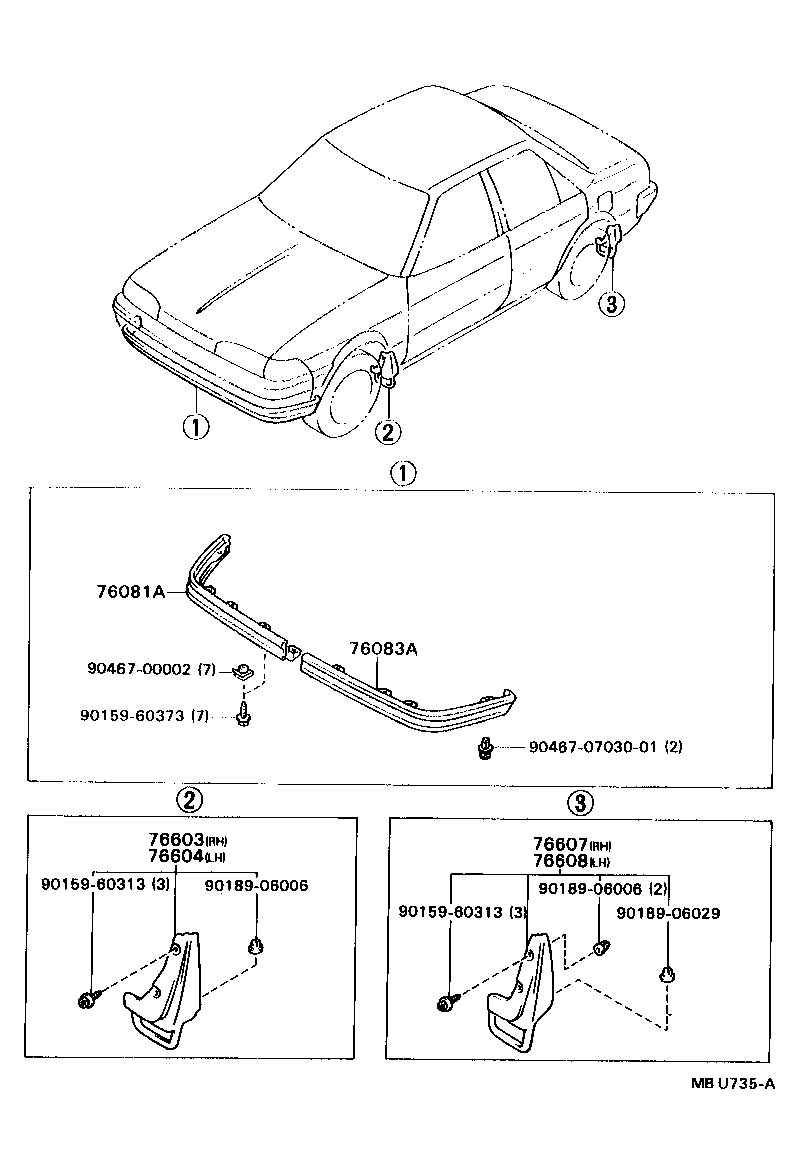

Figure MBN536D MBN536D 1988-05 → 1990-05 Figure MBU735A MBU735A 1990-05 → — Figure MBU123 MBU123 1989-12 → — Figure MBU710A MBU710A 1990-05 → —

Part groups

PNCDescription
76081A Spoiler Sub-assy, Front RH
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76865 Retainer, Rear Spoiler, NO.1
76867A Retainer, Rear Spoiler, NO.3
76868A Retainer, Rear Spoiler, NO.4
76871B Cover, Rear Spoiler
76872A Protector, Rear Spoiler, NO.1
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76875 Protector, Rear Spoiler, NO.4
76879 Clip, Rear Spoiler, NO.1
76887 Seal, Rear Spoiler
76889B Seal, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
