Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 3 illustrations

Illustrations

Figure NE0819B

NE0819B 1988-05 → —

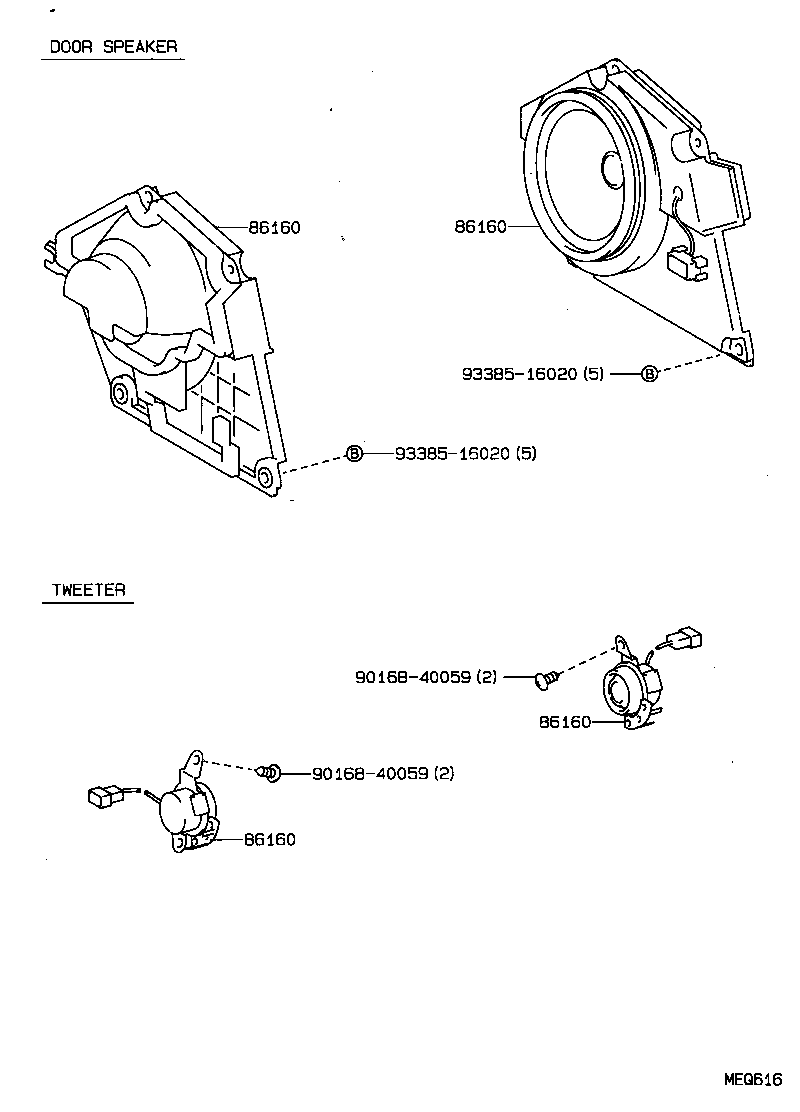

Figure MEQ616

MEQ616 1990-05 → —

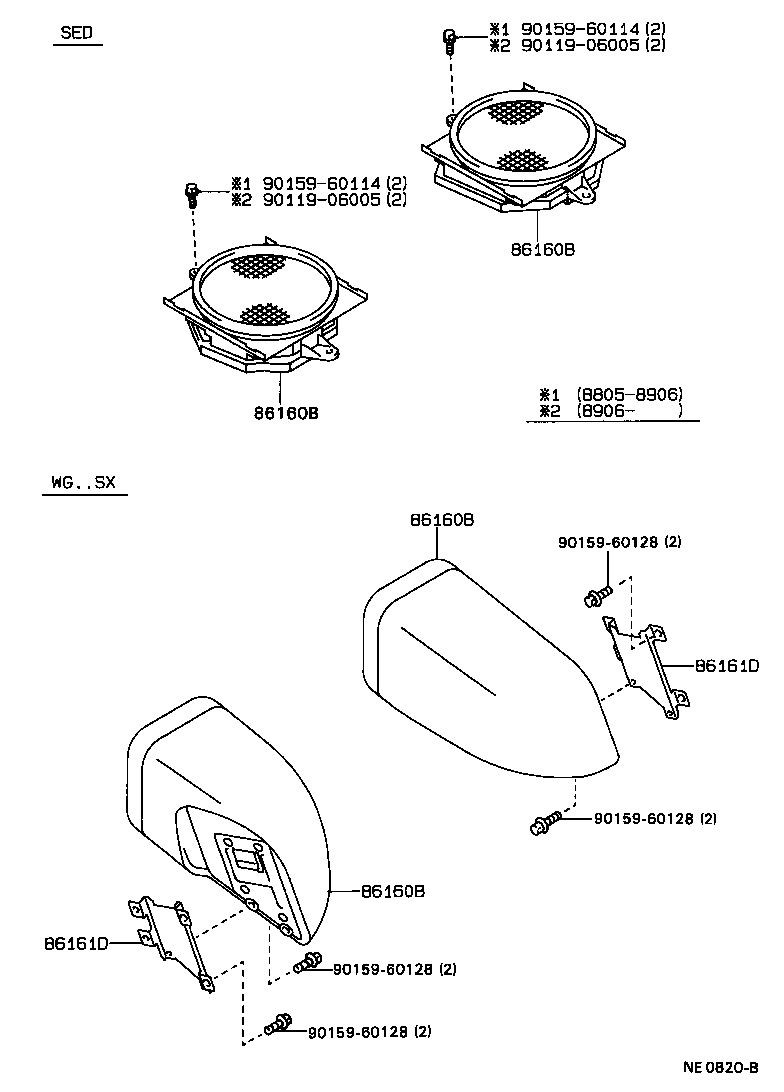

Figure NE0820B

NE0820B 1990-05 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86161D	Bracket, Speaker Mounting, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
