Toyota Carina FF
1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan
Discontinued model
Data version 1997-01

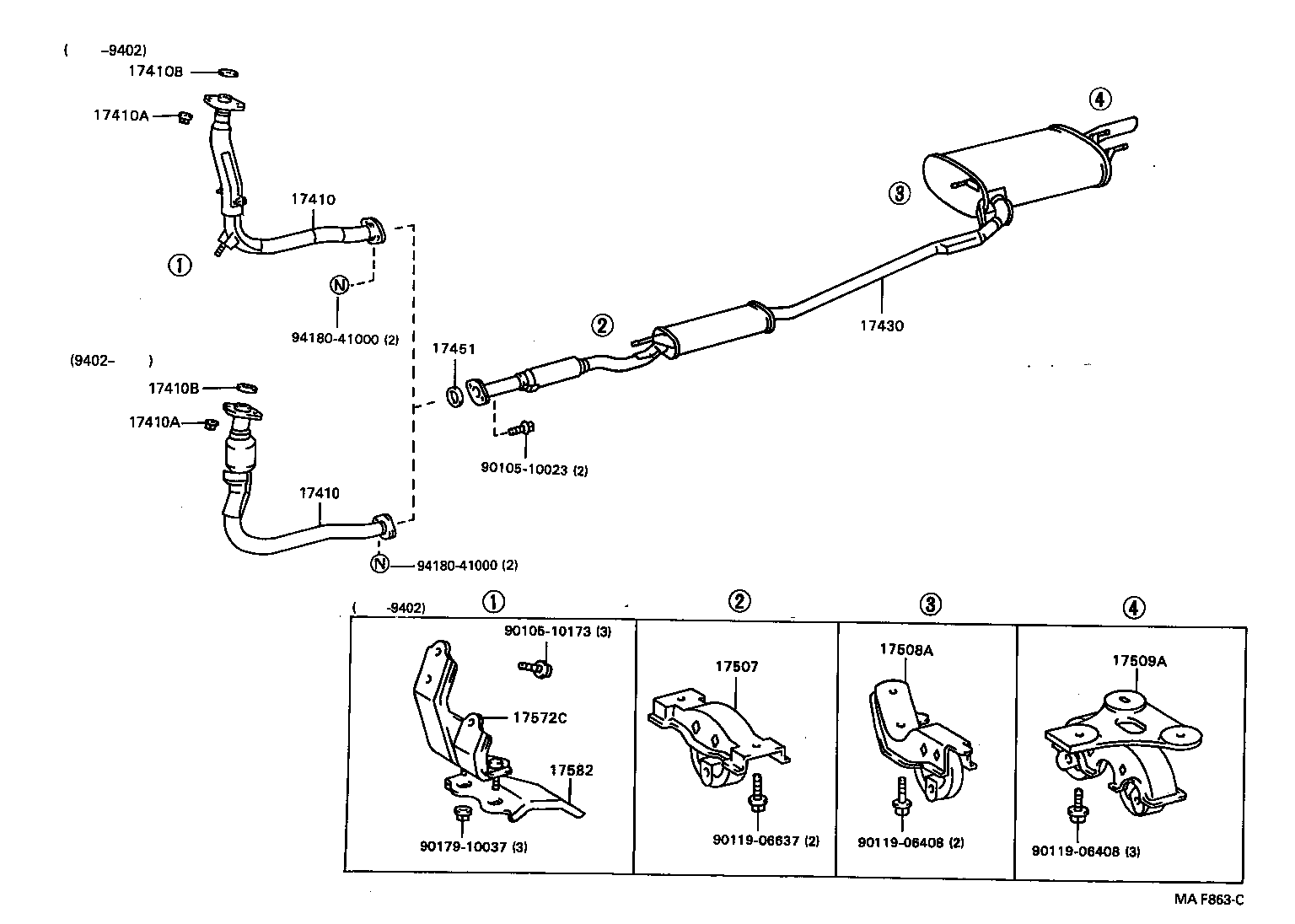

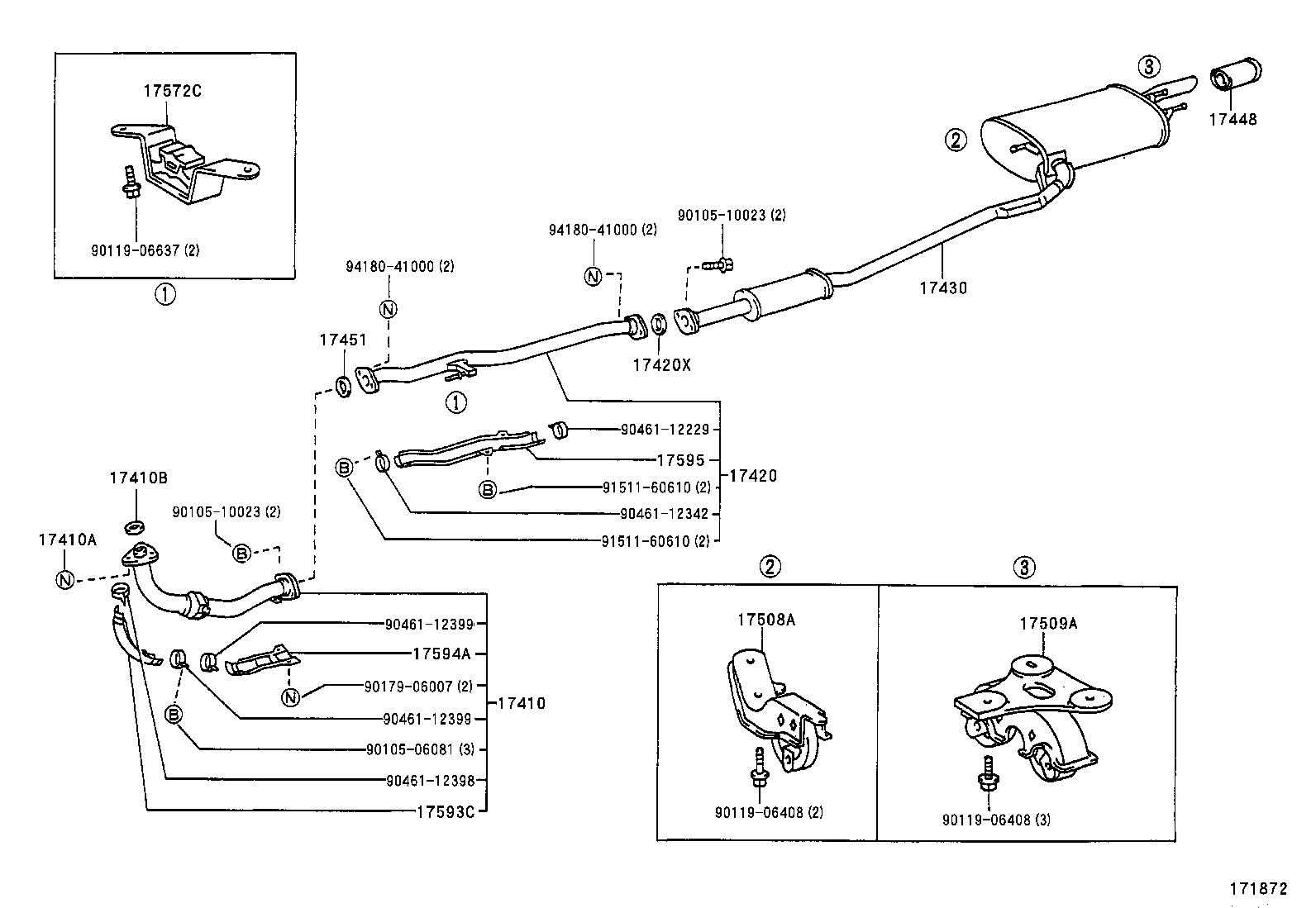

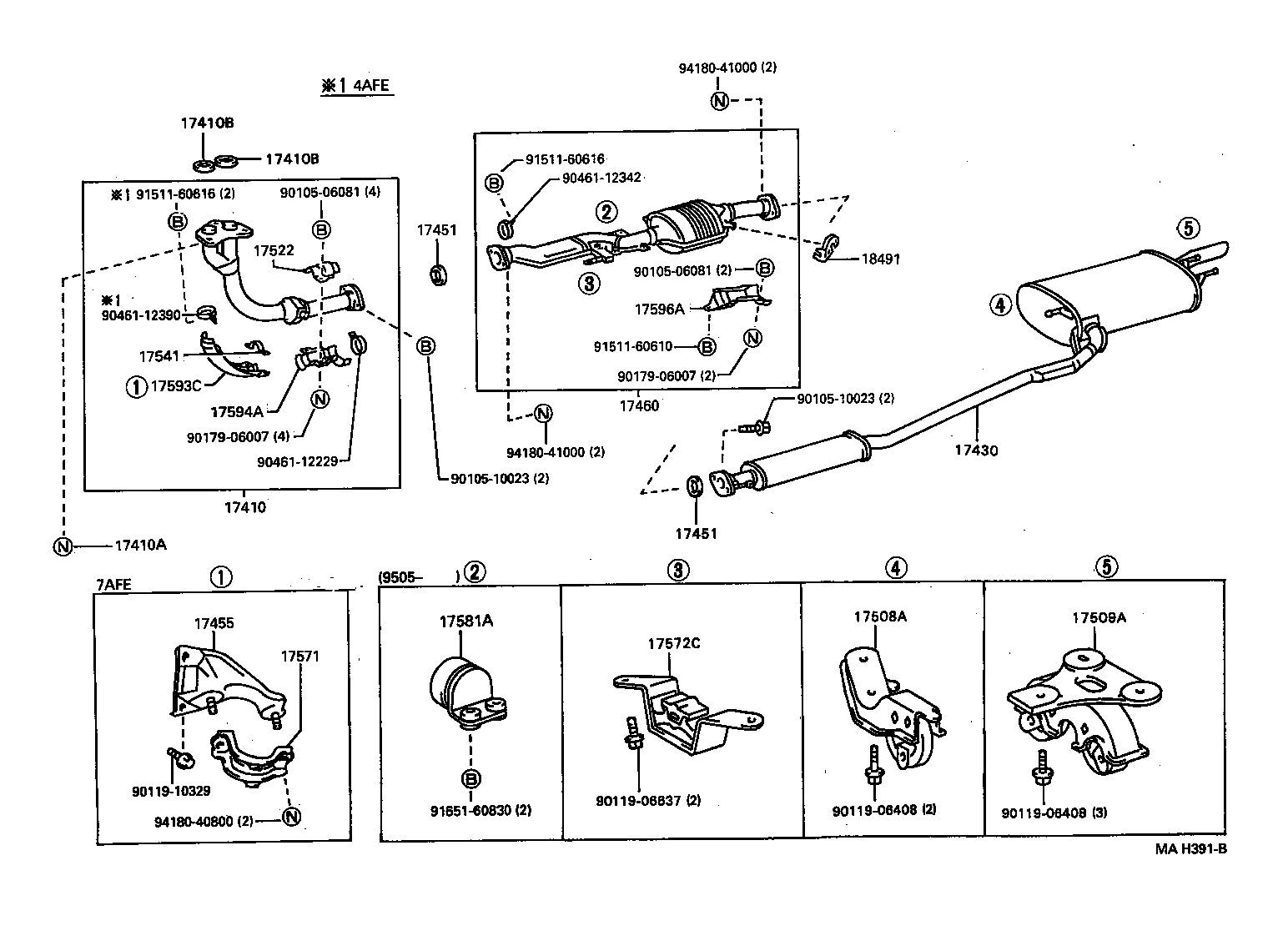

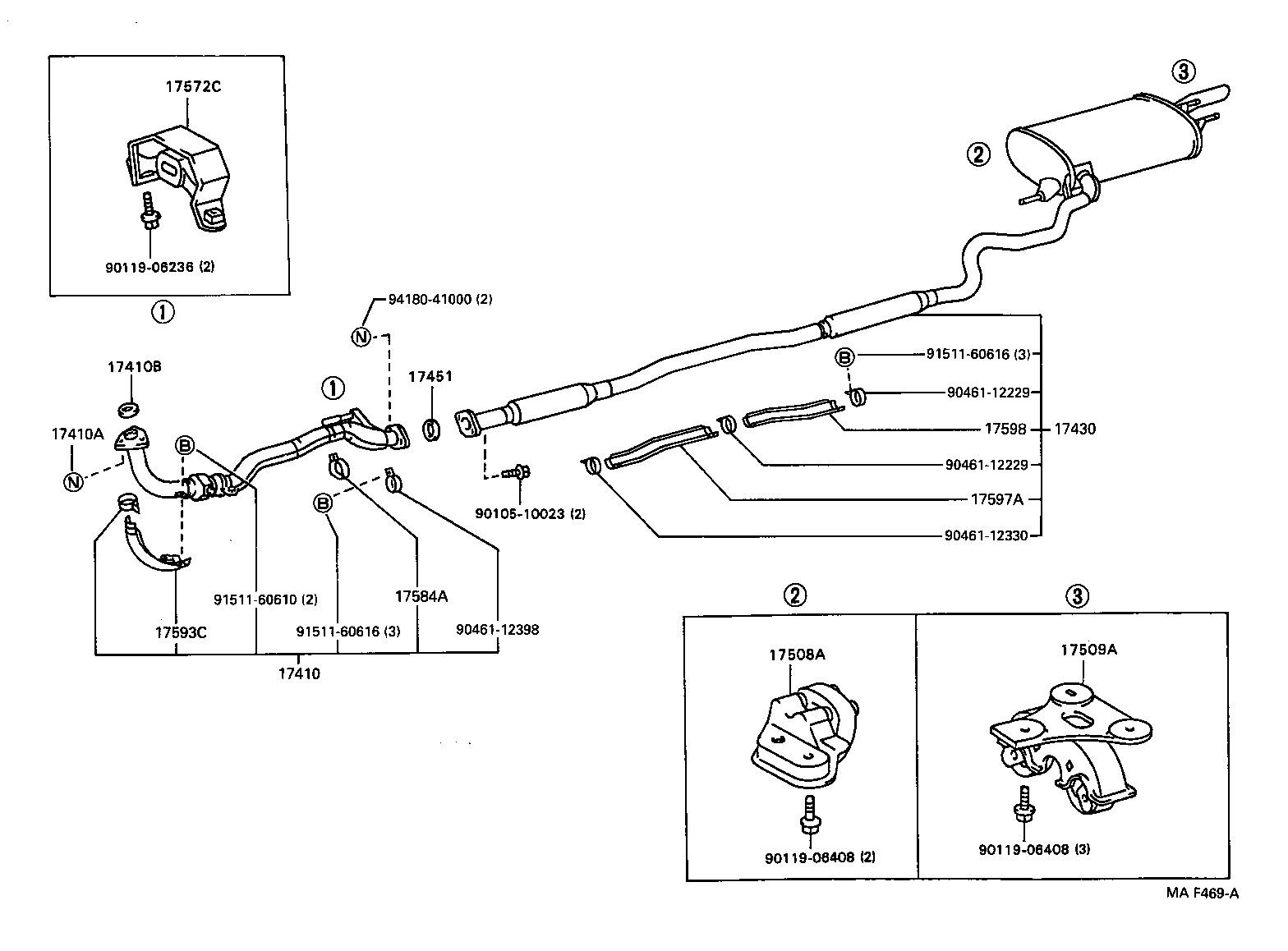

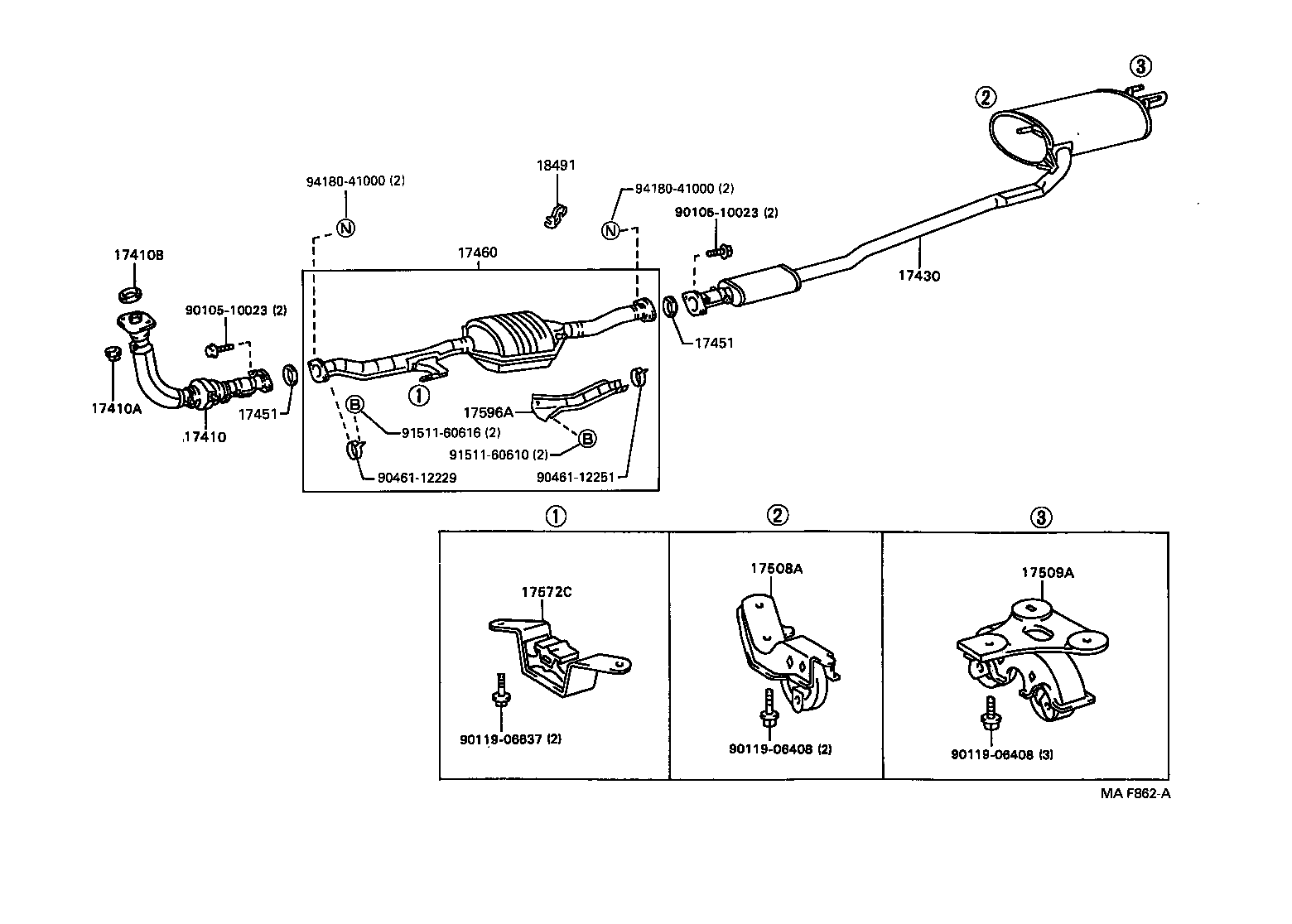

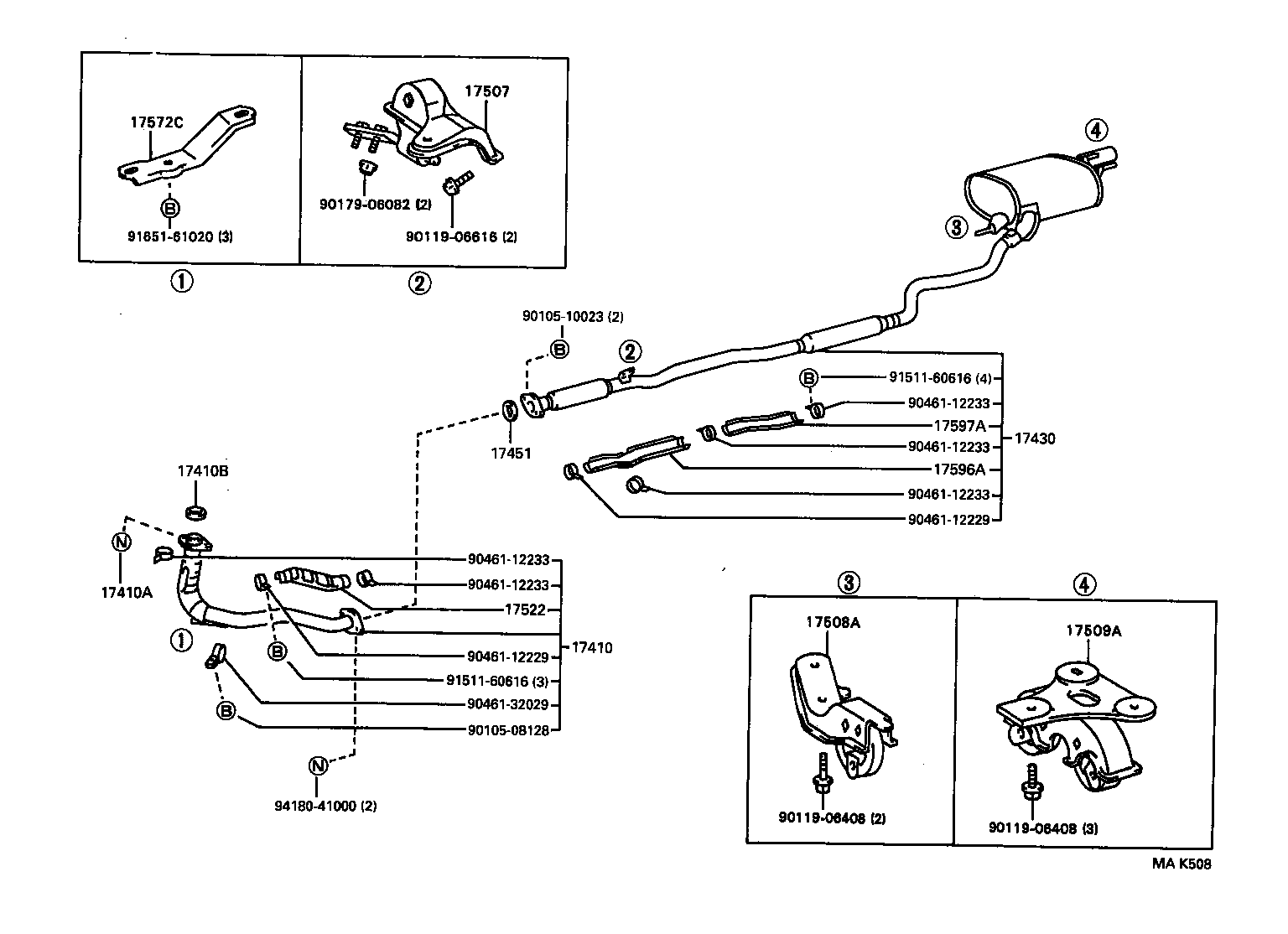

Exhaust Pipe
27 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17455 | Bracket, Exhaust Pipe |
| 17460 | Converter Assy, Catalytic W/Pipe |
| 17507 | Bracket Sub-assy, Exhaust Pipe NO.2 Support |
| 17508A | Bracket Sub-assy, Exhaust Pipe NO.3 Support |
| 17509A | Bracket Sub-assy, Exhaust Pipe NO.4 Support |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17541 | Stay, Exhust Pipe Protector, NO.1 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17581A | Damper, Exhaust Pipe |
| 17582 | Bracket, Catalytic Converter Support, Upper |
| 17584A | Stopper, Exhust Pipe, NO.1 |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
| 17596A | Protector, Exhaust Pipe, Lower NO.4 |
| 17597A | Protector, Exhaust Pipe, Lower NO.5 |
| 17598 | Protector, Exaust Pipe, Lower NO.6 |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
