Toyota Carina FF

1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan

Discontinued model Data version 1997-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

11 part groups · 3 illustrations

Illustrations

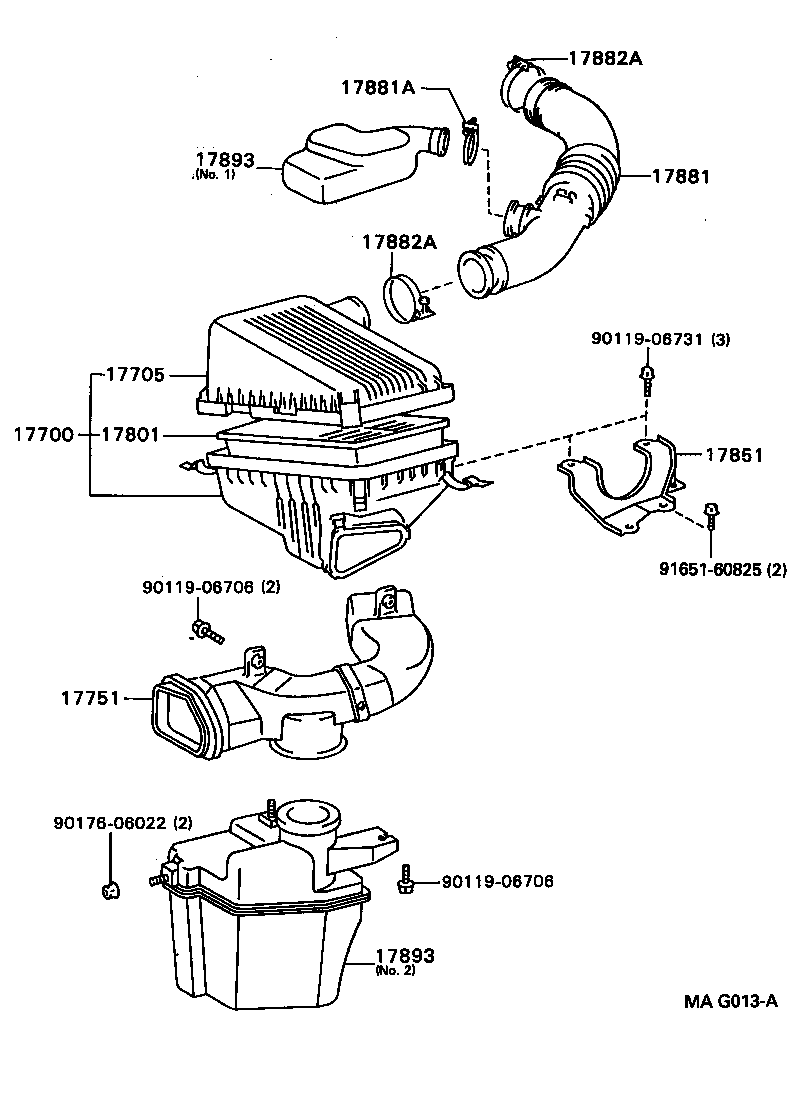

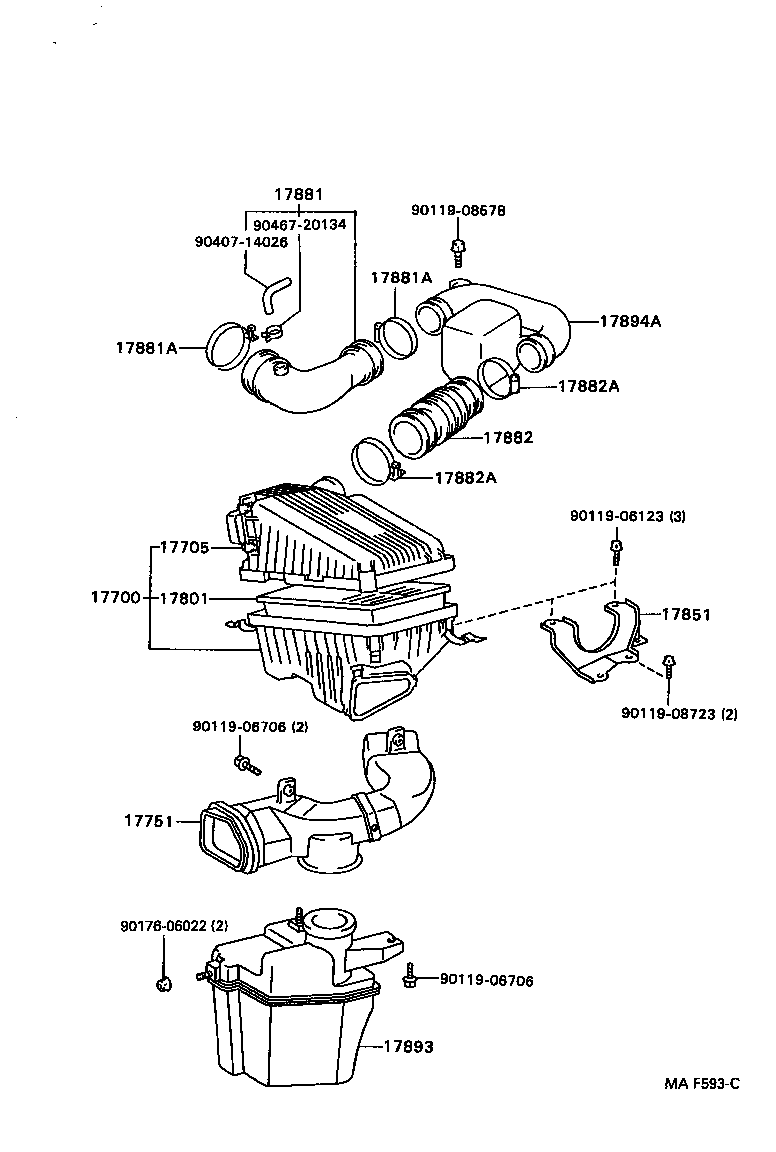

Figure MAF582B MAF582B 1992-08 → — Figure MAF593C MAF593C 1992-08 → — Figure MAG013A MAG013A 1992-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
