Toyota Carina FF

1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan

Discontinued model Data version 1997-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 8 illustrations

Illustrations

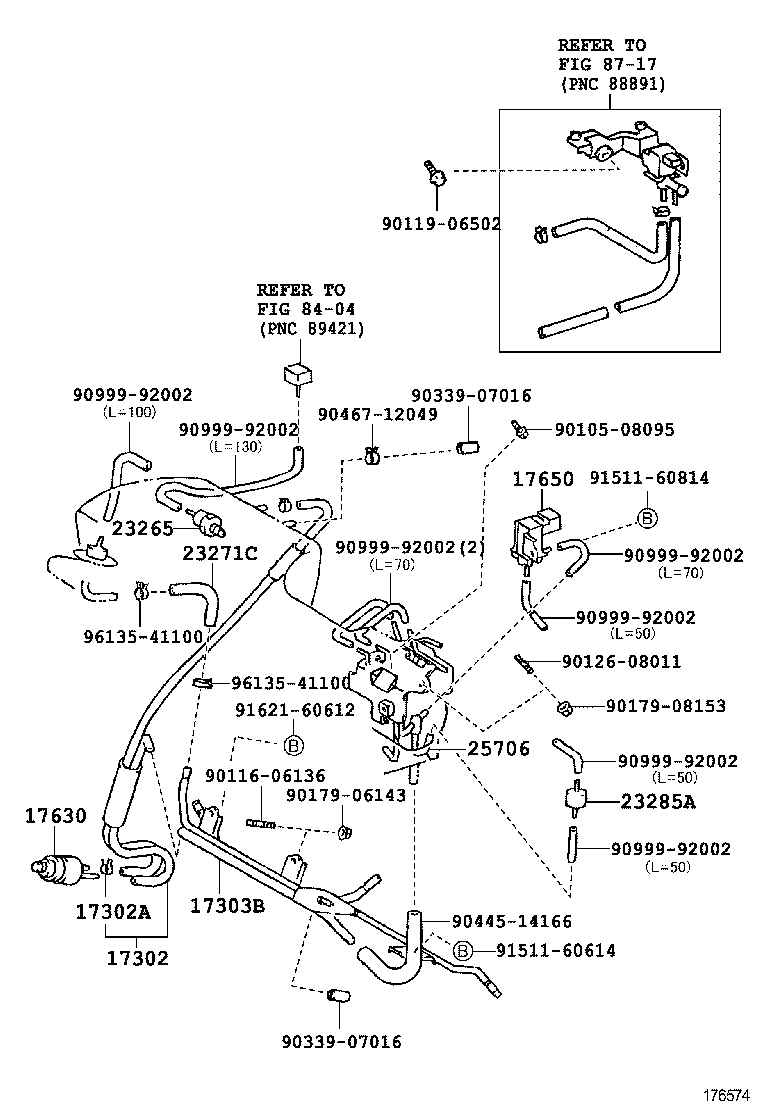

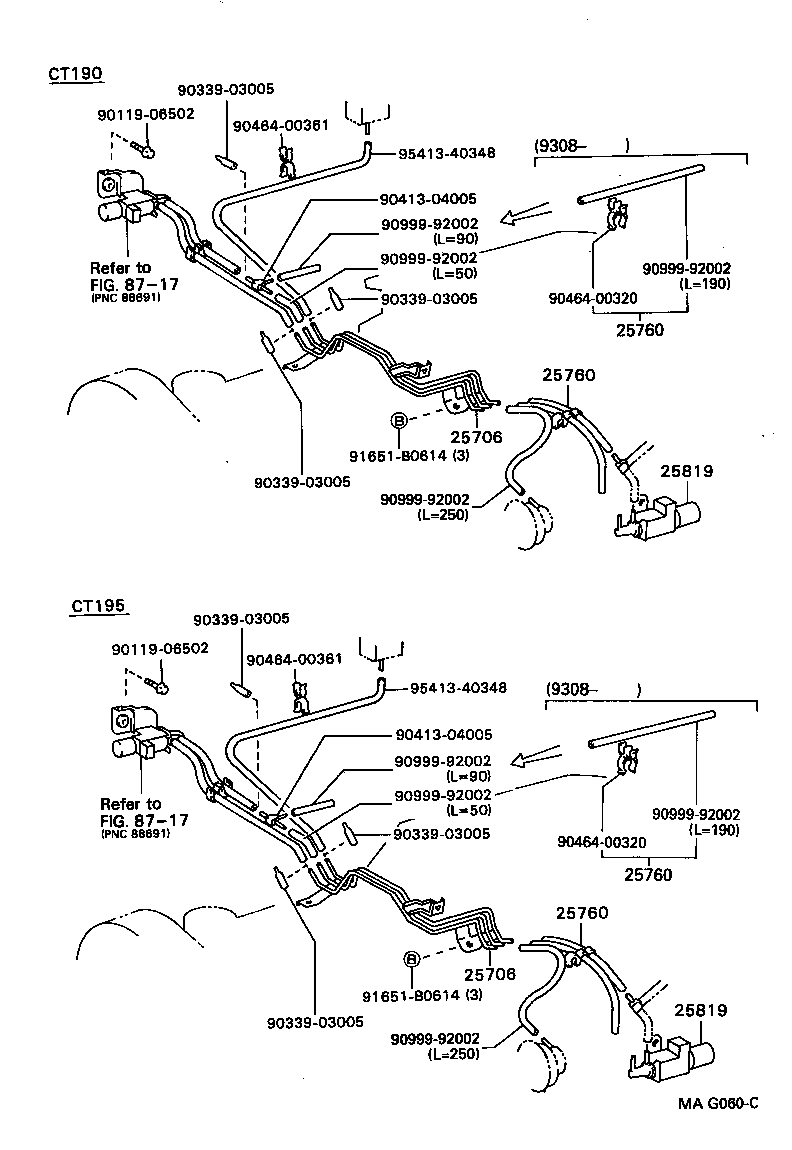

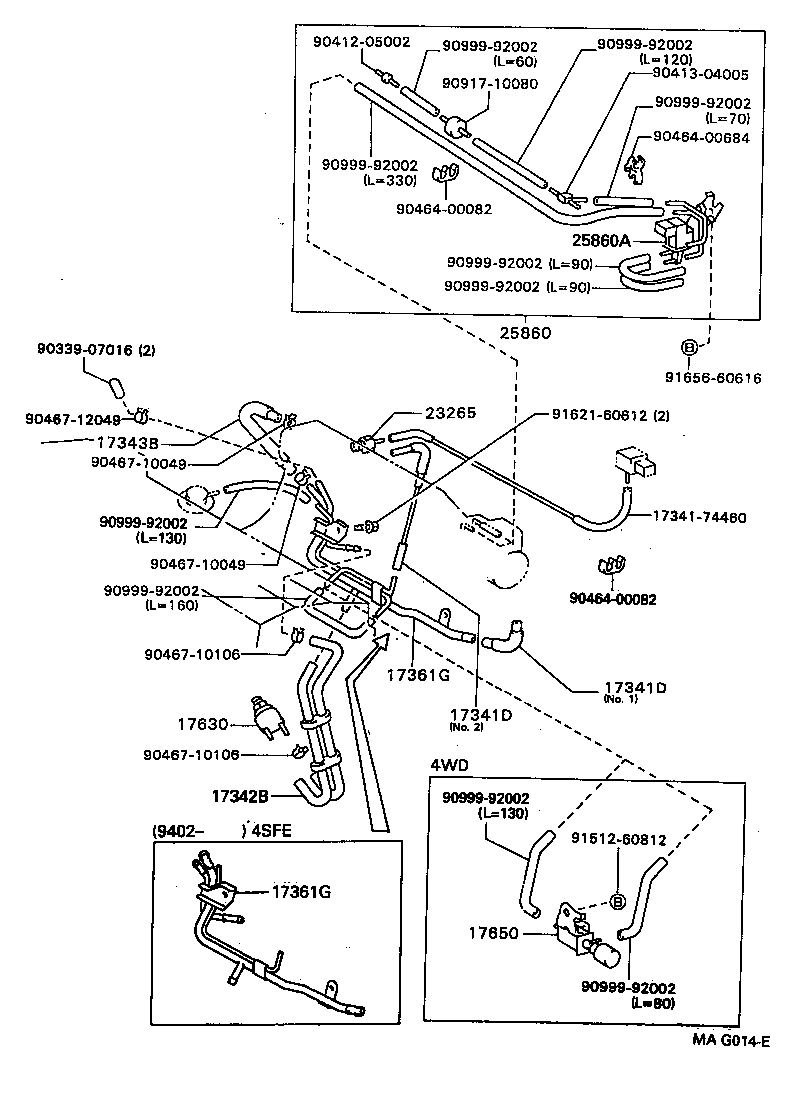

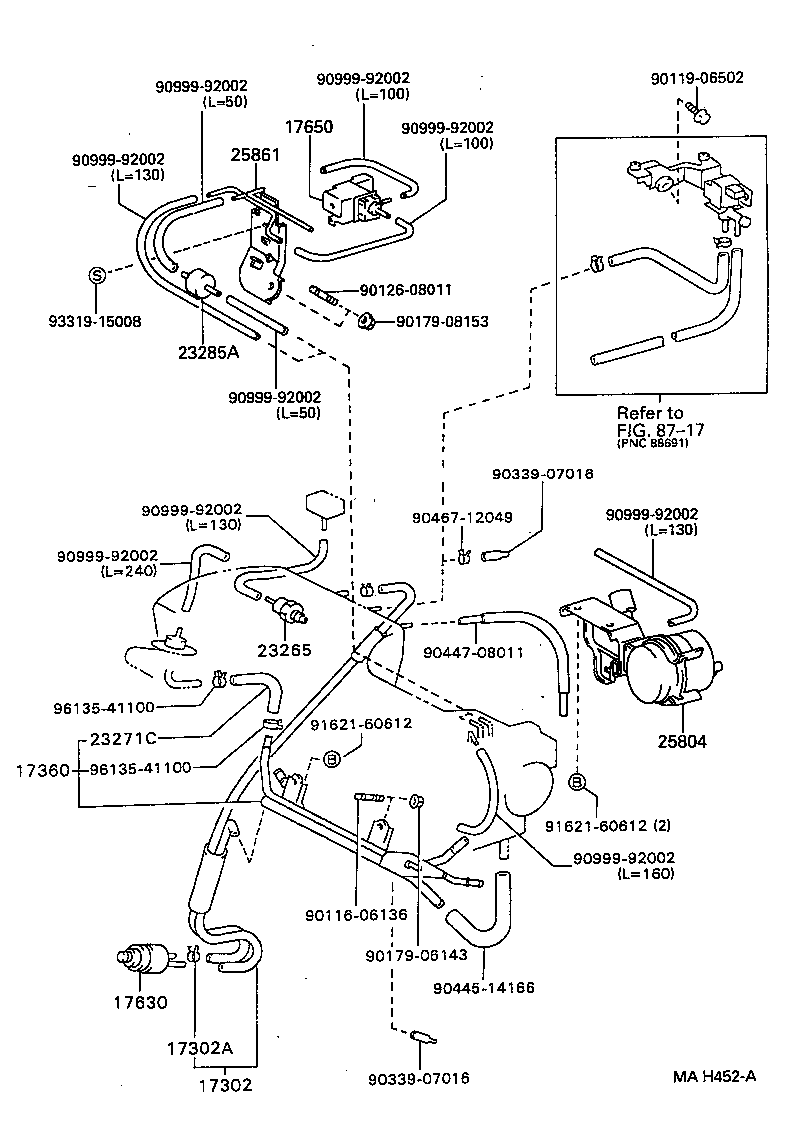

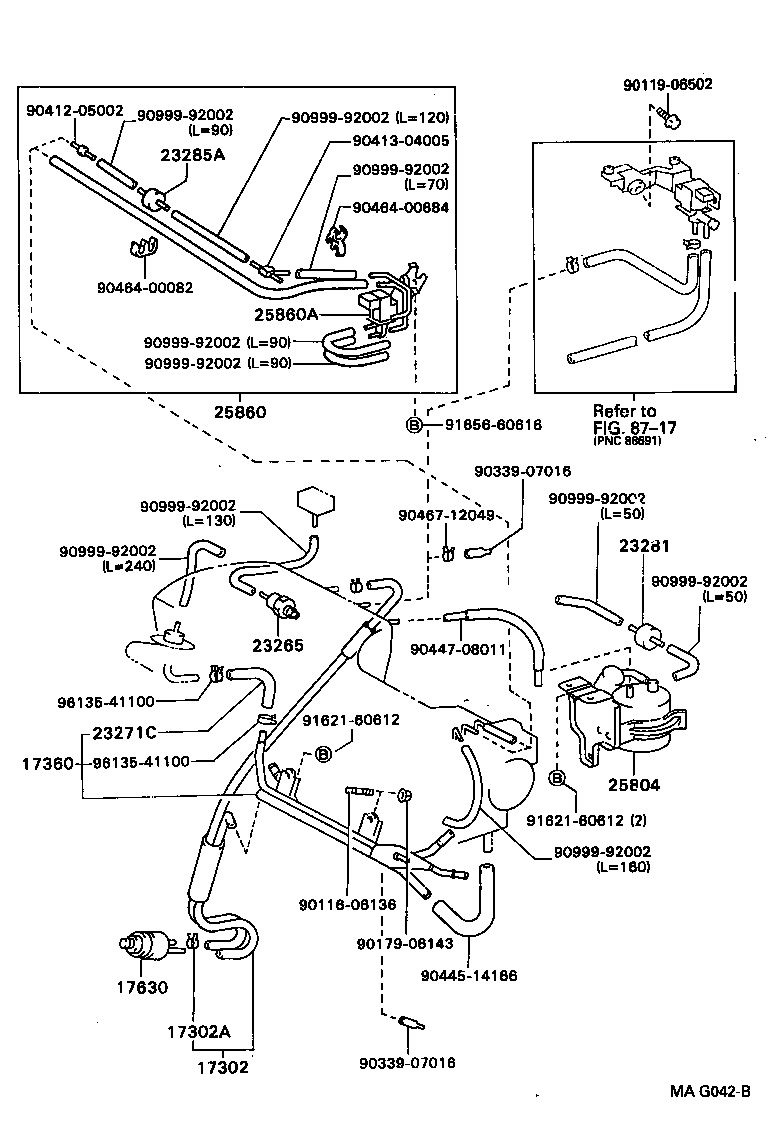

Figure MA9503A MA9503A 1992-08 → — Figure MAG042B MAG042B 1992-08 → 1994-08 Figure MAH452A MAH452A 1994-08 → — Figure 176574 176574 1992-08 → — Figure MA9503A MA9503A 1992-08 → — Figure MAG060C MAG060C 1992-08 → — Figure MA9503A MA9503A 1992-08 → — Figure MAG014E MAG014E 1992-08 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17360 Tube Assy, Air
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23271C Hose, Fuel
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25760 Hose Assy, Vacuum Transmitting
25804 Valve Set, Vacuum Control
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
