Toyota Carina FF
1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan
Discontinued model
Data version 1997-01

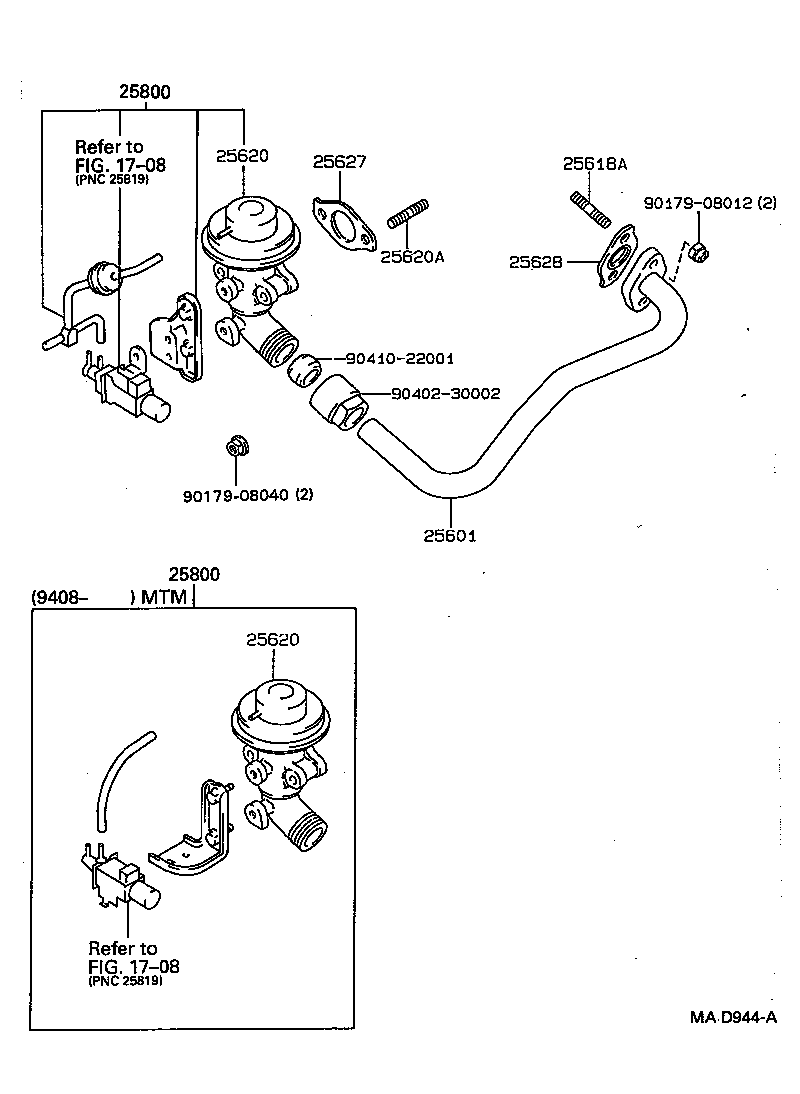

Exhaust Gas Recirculation System
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25617 | Plate, Egr Hole Cover |
| 25618A | Bolt, Stud(FOR EGR INLET) |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25800 | Valve Assy, Electric Egr Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
