Toyota Carina FF

1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan

Discontinued model Data version 1997-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

5 part groups · 4 illustrations

Illustrations

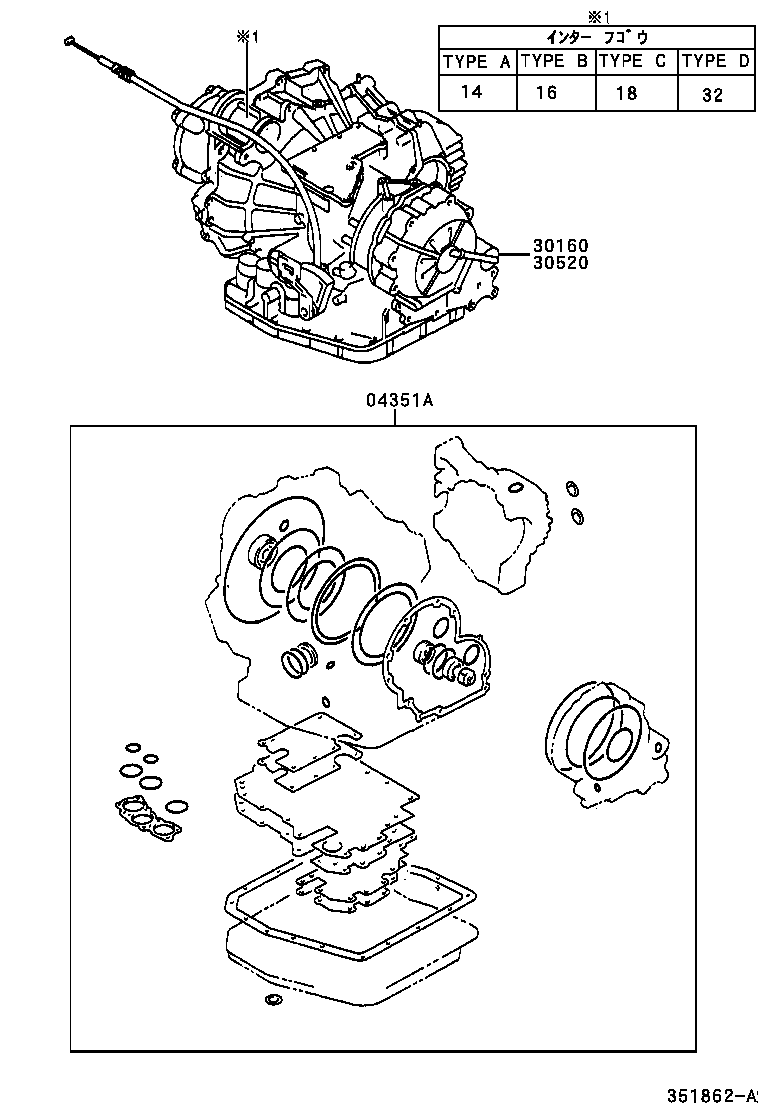

Figure MCN570B MCN570B 1992-08 → — Figure MCN122A MCN122A 1992-02 → 1994-08 Figure MCN122A MCN122A 1994-08 → — Figure 351862A 351862A 1992-08 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30160 Transaxle Assy, Automatic W/Transfer, Rebuilt
30500 Transaxle Assy, Automatic
30520 Transaxle Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
