Toyota Carina FF

1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan

Discontinued model Data version 1997-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

19 part groups · 7 illustrations

Illustrations

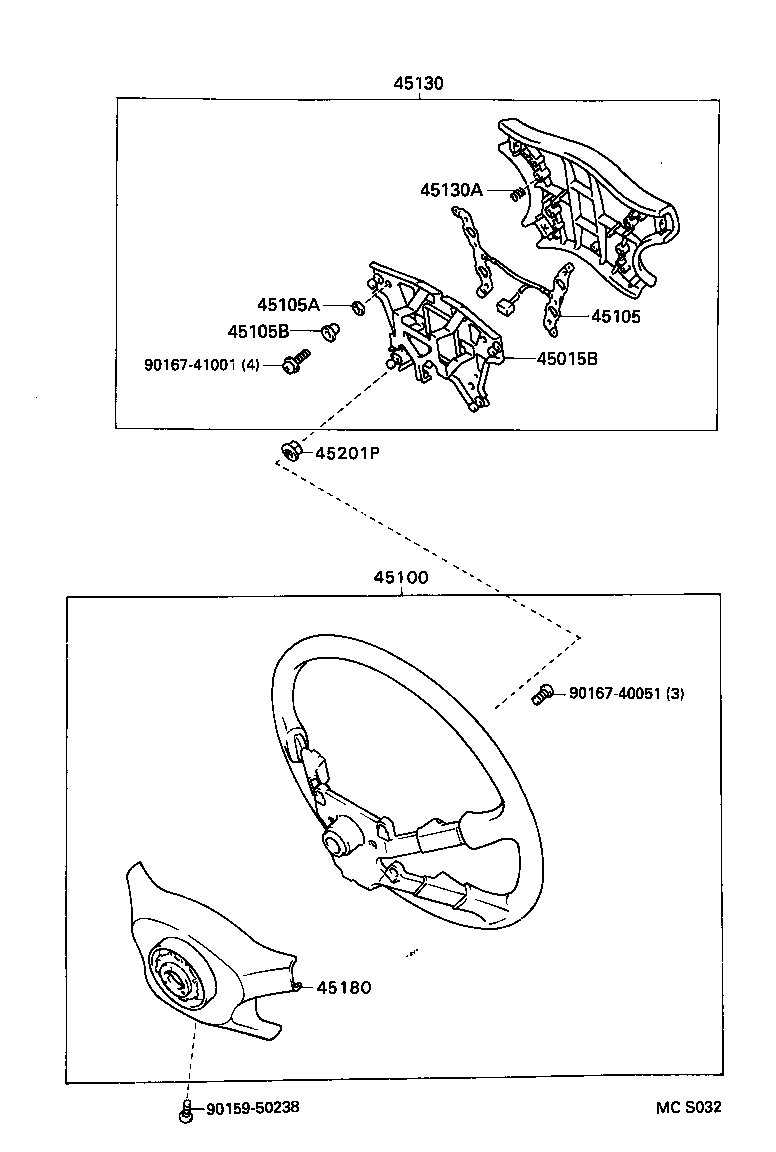

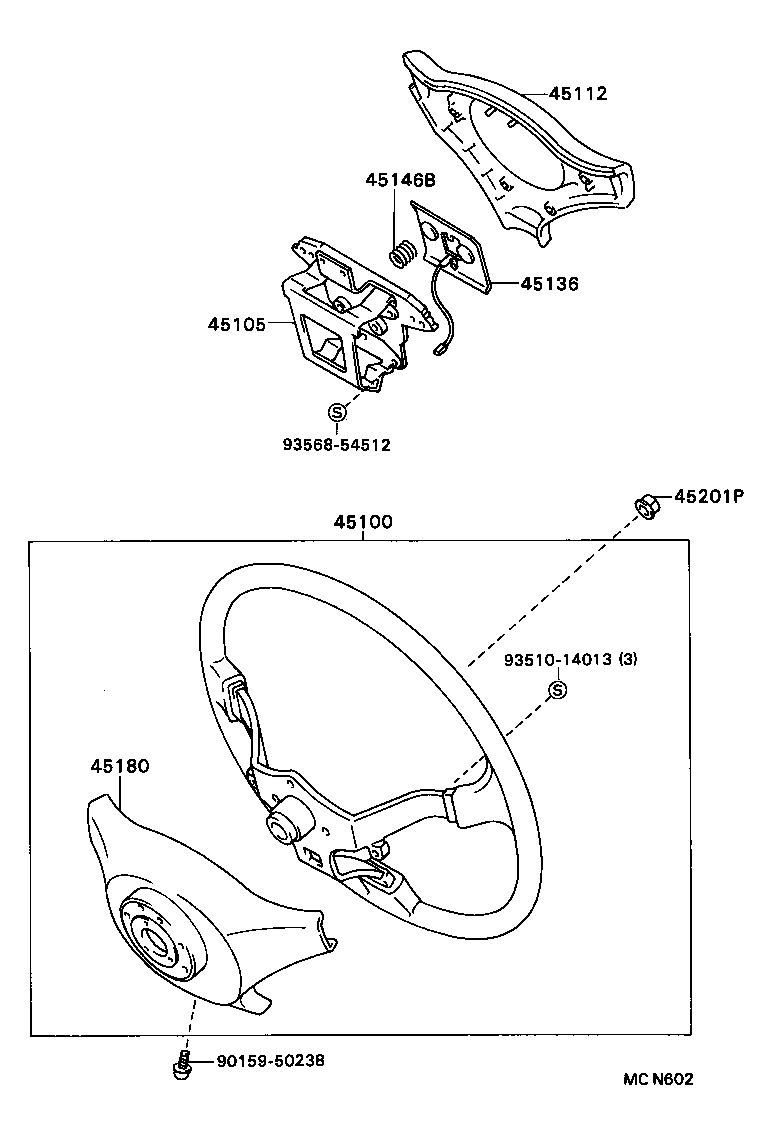

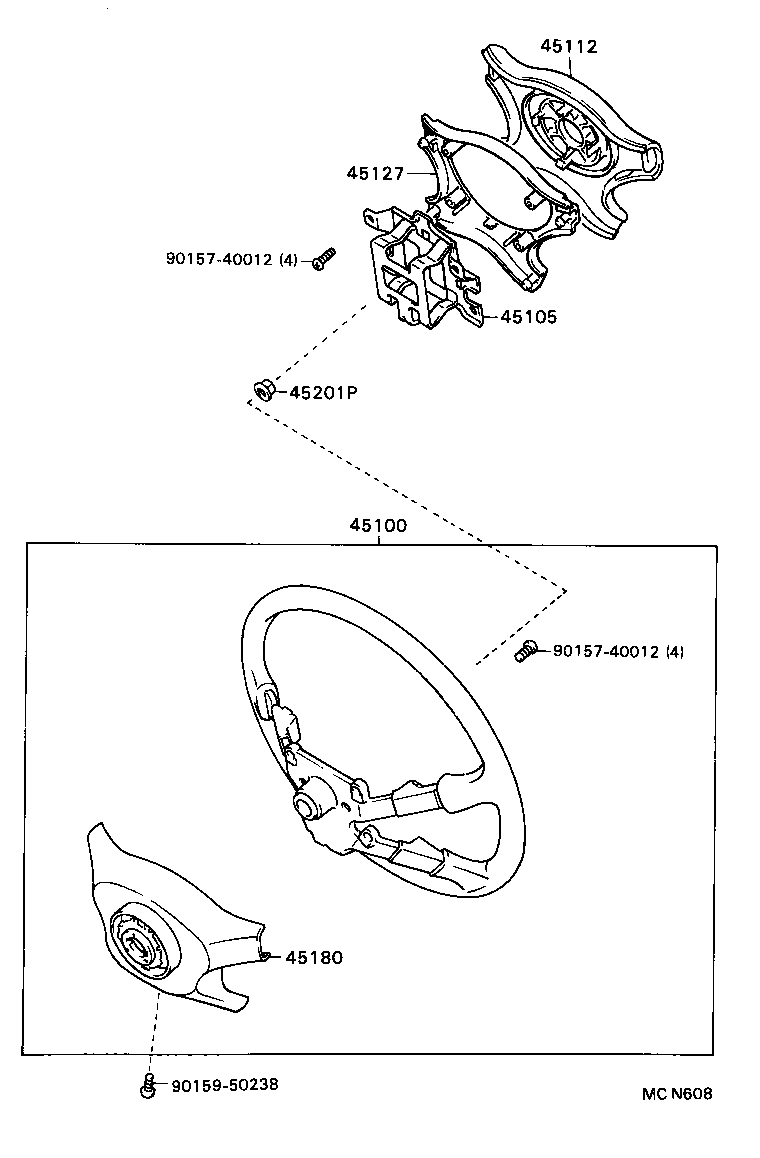

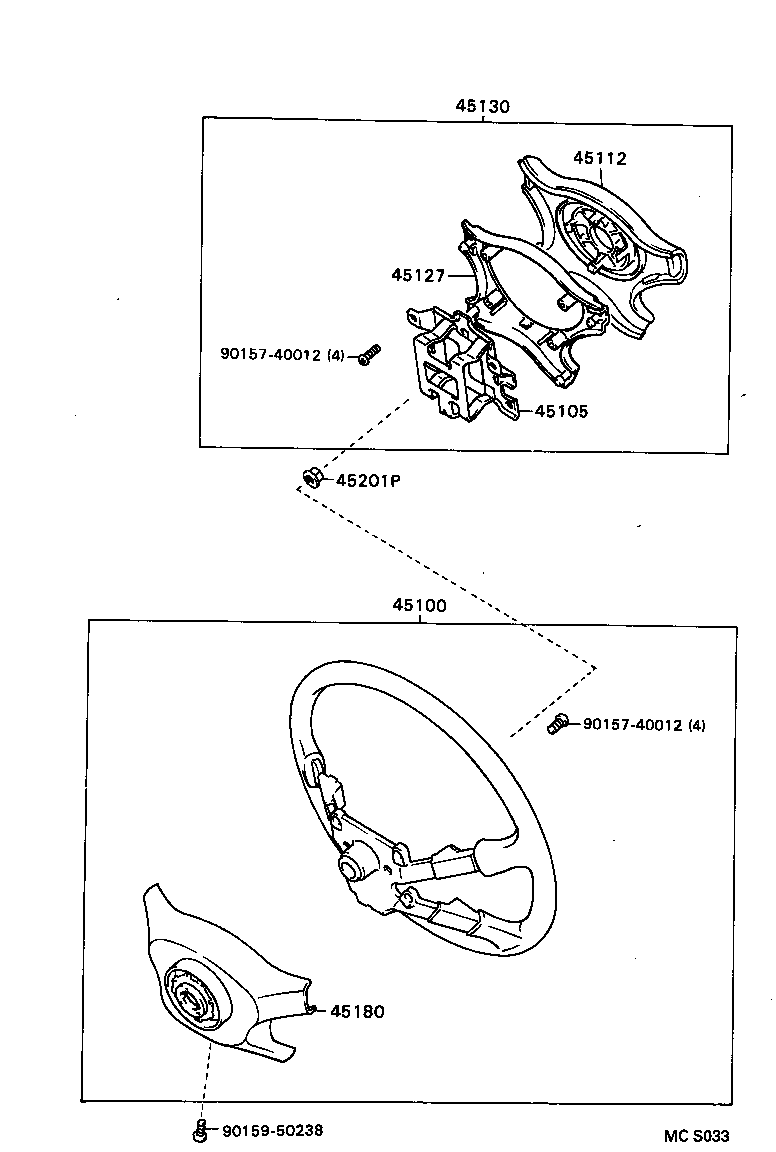

Figure MCN601 MCN601 1992-08 → 1994-08 Figure MCN602 MCN602 1992-08 → 1994-08 Figure MCN608 MCN608 1992-08 → 1994-08 Figure MCM931 MCM931 1992-08 → 1994-08 Figure MCS032 MCS032 1994-08 → — Figure MCS033 MCS033 1994-08 → — Figure MCS034C MCS034C 1994-08 → —

Part groups

PNCDescription
45015B Plate Sub-assy, Horn Button Contact, NO.2
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45108B Button Sub-assy, Horn(FOR STEERING WHEEL ASSY)
45112 Pad, Steering Wheel
45127 Insert, Horn Button, Upper NO.1
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45146 Spring, Horn Button Contact
45146B Spring, Horn Button Contact, NO.1
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
