Toyota Carina FF

1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan

Discontinued model Data version 1997-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

23 part groups · 2 illustrations

Illustrations

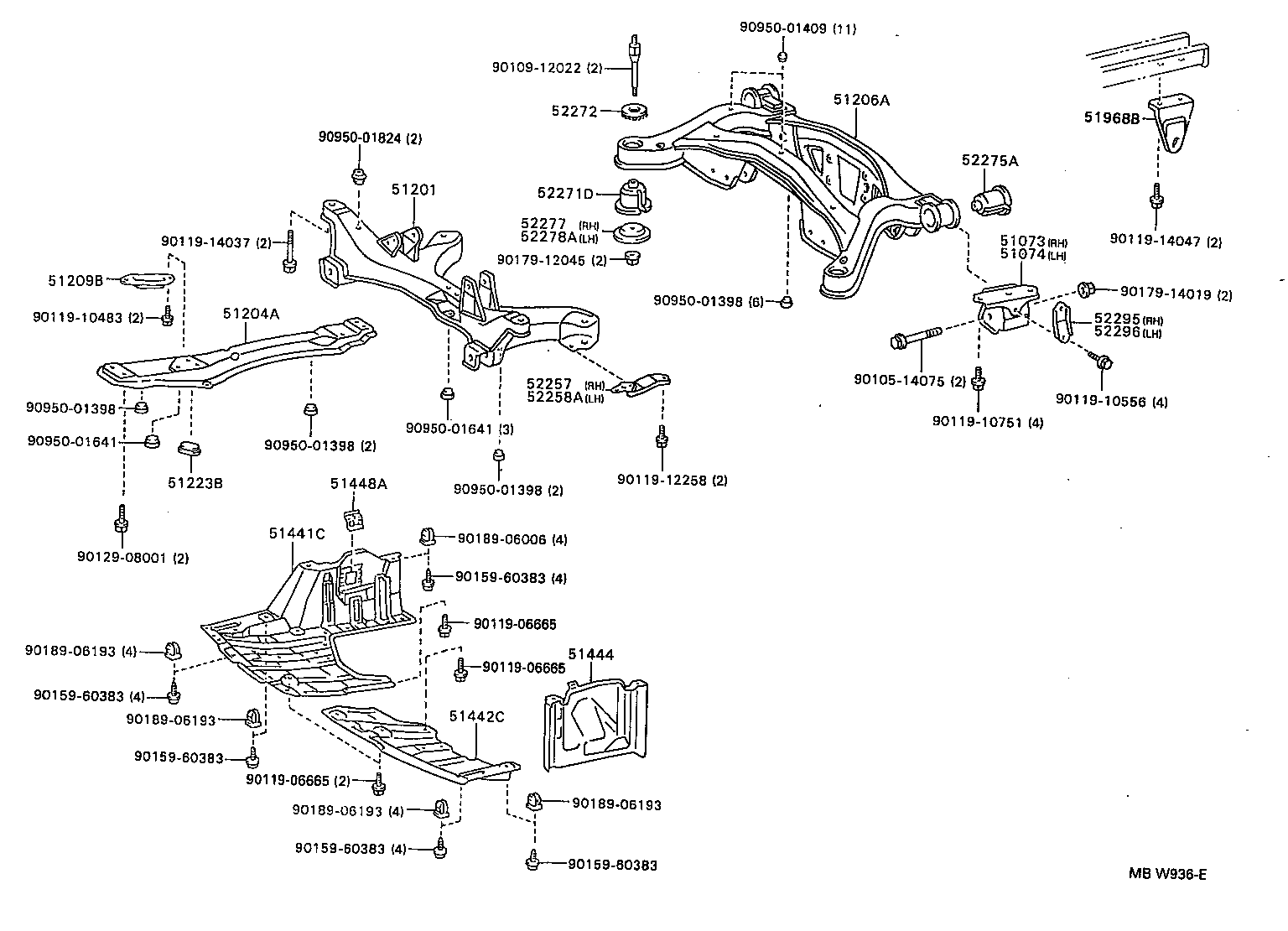

Figure MBW935D MBW935D 1992-08 → — Figure MBW936E MBW936E 1992-08 → —

Part groups

PNCDescription
51073 Bracket Sub-assy, Rear Body Mounting, NO.2 RH
51074 Bracket Sub-assy, Rear Body Mounting, NO.2 LH
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51209B Protector Sub-assy, Center Member, Front
51223B Cover, Engine Mounting Hole
51249 Damper, Rear Suspension Member
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51444 Cover, Engine Under, Rear LH
51448A Cover, Engine Side Under, RH
51968B Hook, Transport, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52272 Stopper, Rear Suspension Member, Upper
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277 Retainer, Rear Suspension Member Lower Stopper, RH
52278A Retainer, Rear Suspension Menber Lower Stopper, LH
52295 Brace, Rear Suspension Member, RH
52295B Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
