Toyota Carina FF
1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan
Discontinued model
Data version 1997-01

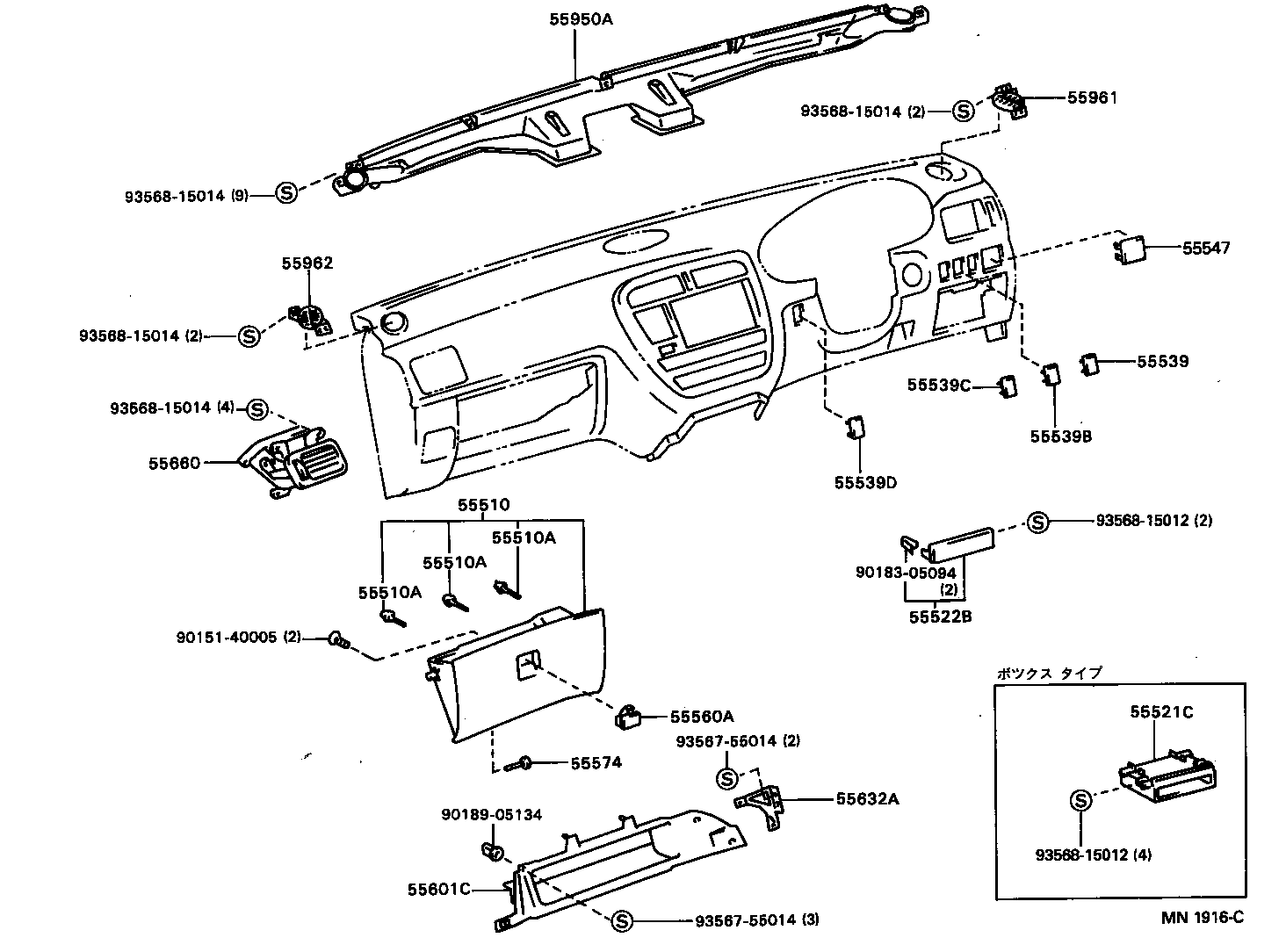

Instrument Panel & Glove Compartment
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55321B | Bracket, Instrument Panel, NO.1 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55440C | Box Assy, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55445B | Plate, Instrument Panel Finish |
| 55474E | Panel Sub-assy, Instrument Panel Speaker, NO.3 |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55560A | Lock Assy, Glove Compartment Door |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55601C | Tray Sub-assy, Instrument Panel Under |
| 55632A | Support, Instrument Panel Under Tray, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
