Toyota Carina FF
1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan
Discontinued model
Data version 1997-01

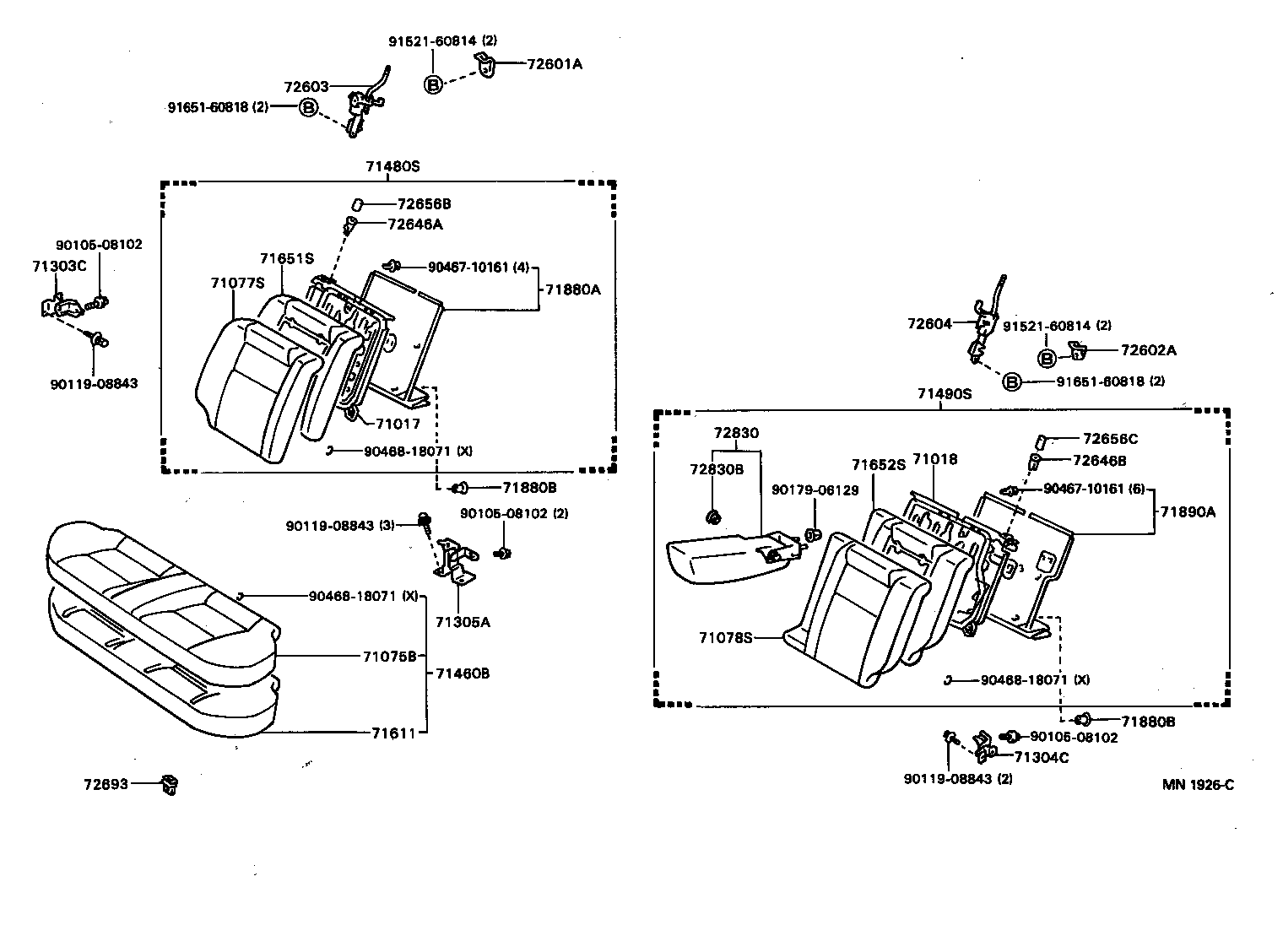

Rear Seat & Seat Track
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71398A | Holder, Rear Seatback |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71880A | Carpet Assy, Rear Seatback Board, RH |
| 71880B | Clip(FOR REAR SEATBACK CARPET) |
| 71890A | Carpet Assy, Rear Seatback Board, LH |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72603 | Lock Sub-assy, Rear Seatback, RH |
| 72604 | Lock Sub-assy, Rear Seatback, LH |
| 72646A | Grommet, Rear Seatback Stop Button |
| 72646B | Grommet, Rear Seatback Stop Button |
| 72656B | Button, Rear Seatback Stop Release |
| 72656C | Button, Rear Seatback Stop Release |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830B | Bush(FOR REAR SEAT CENTER ARMREST) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
