Toyota Carina FF

1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan

Discontinued model Data version 1997-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

7 part groups · 2 illustrations

Illustrations

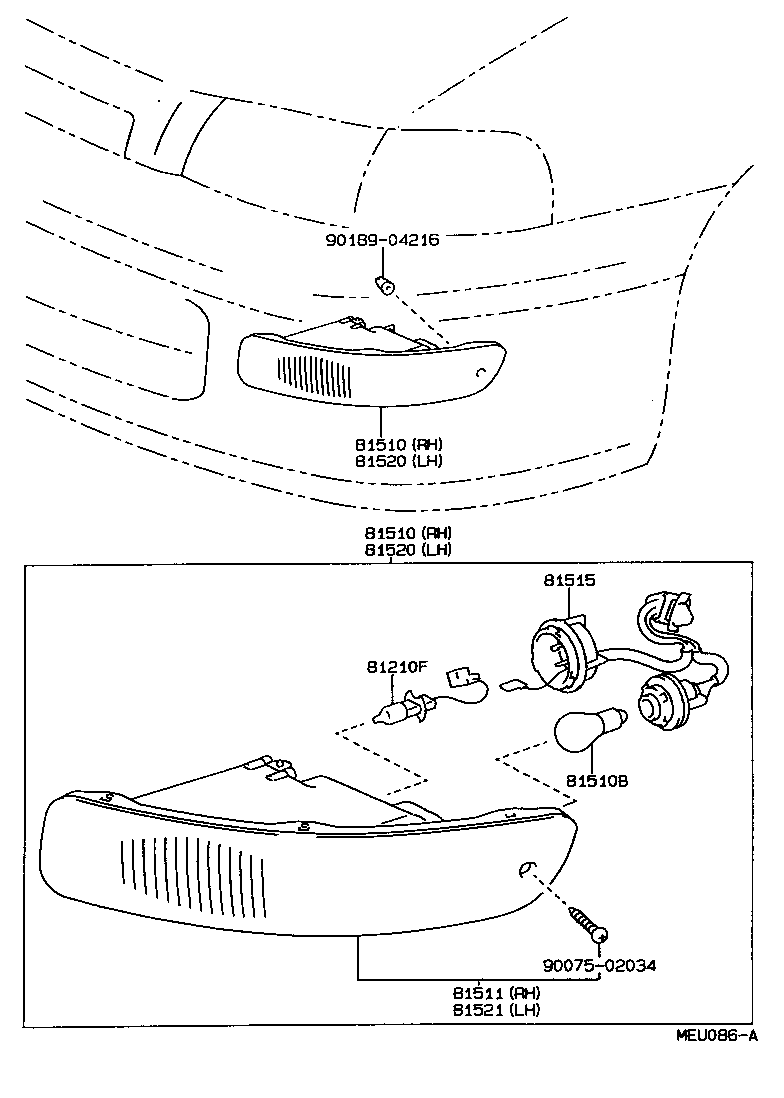

Figure MEU087A MEU087A 1992-08 → — Figure MEU086A MEU086A 1992-08 → —

Part groups

PNCDescription
81210F Bulb, Fog Lamp
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
