Toyota Carina FF
1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan
Discontinued model
Data version 1997-01
Wiring & Clamp
40 part groups · 13 illustrations

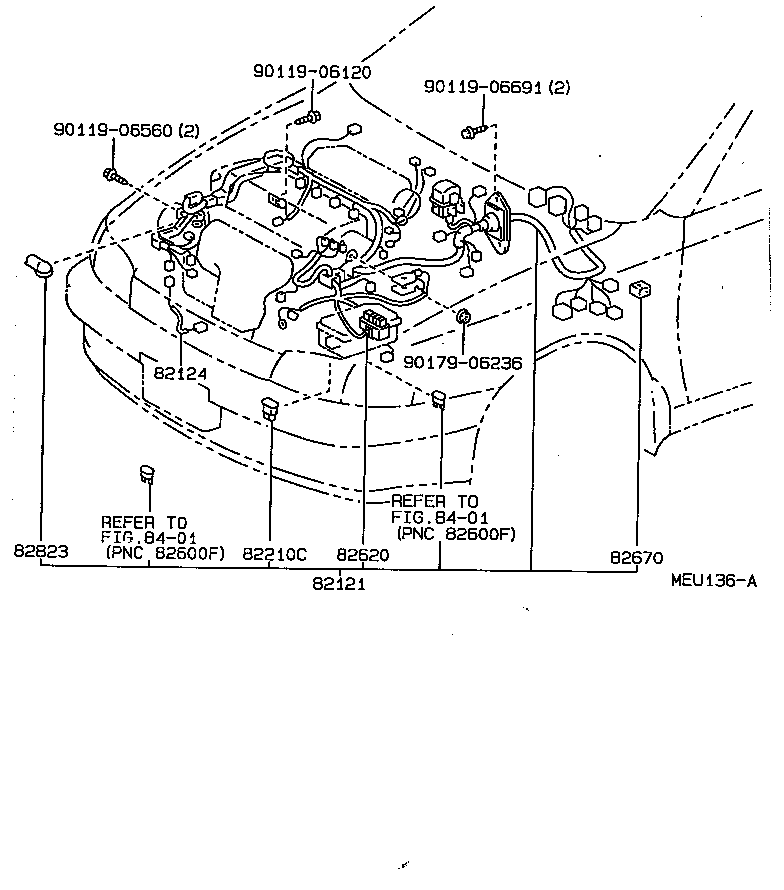

Illustrations
Part groups
| PNC | Description |
|---|---|

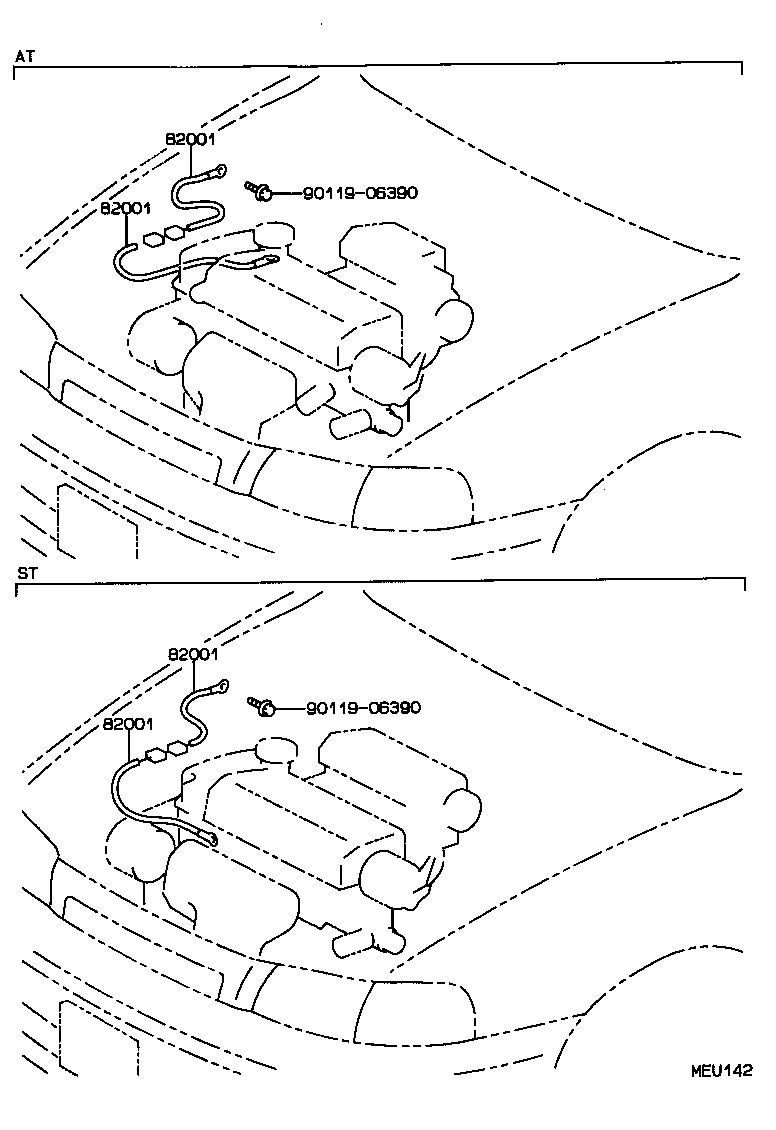

| 82001 | Cable, Bond, NO.1 |
| 82111 | Wire, Engine Room Main |

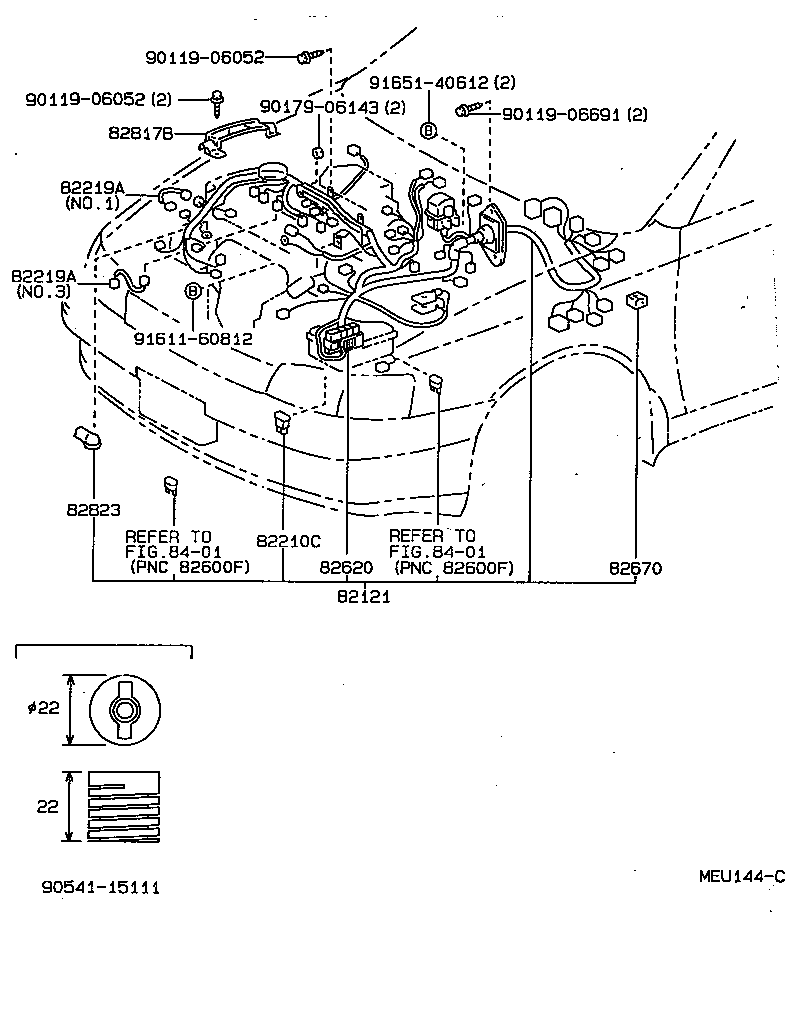

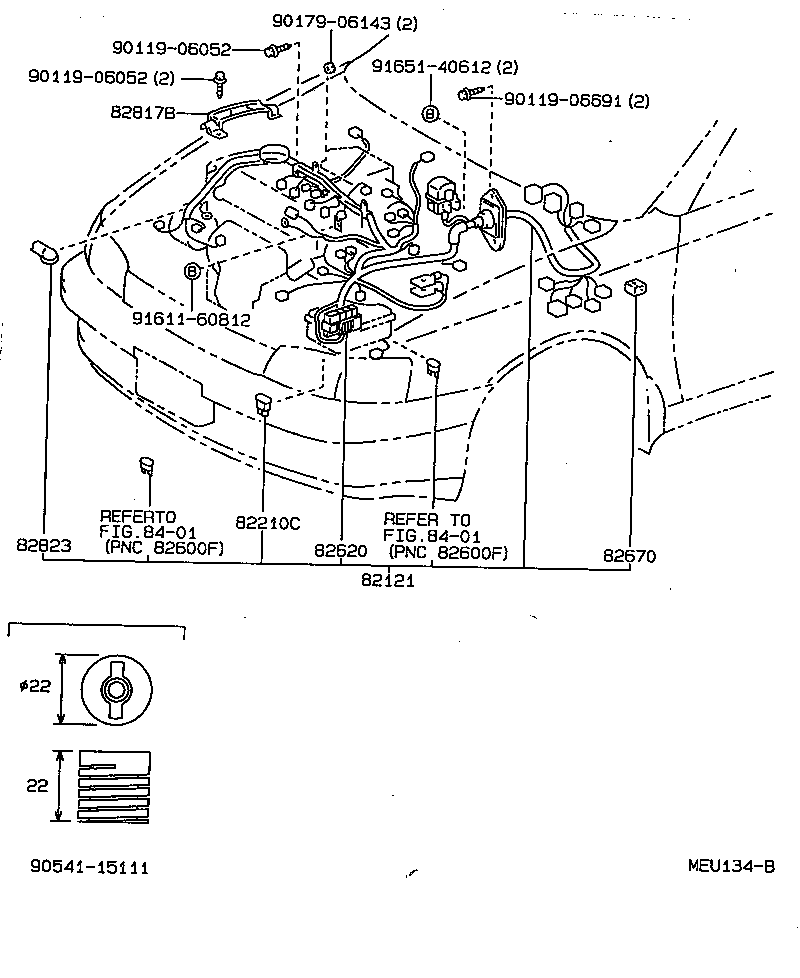

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |

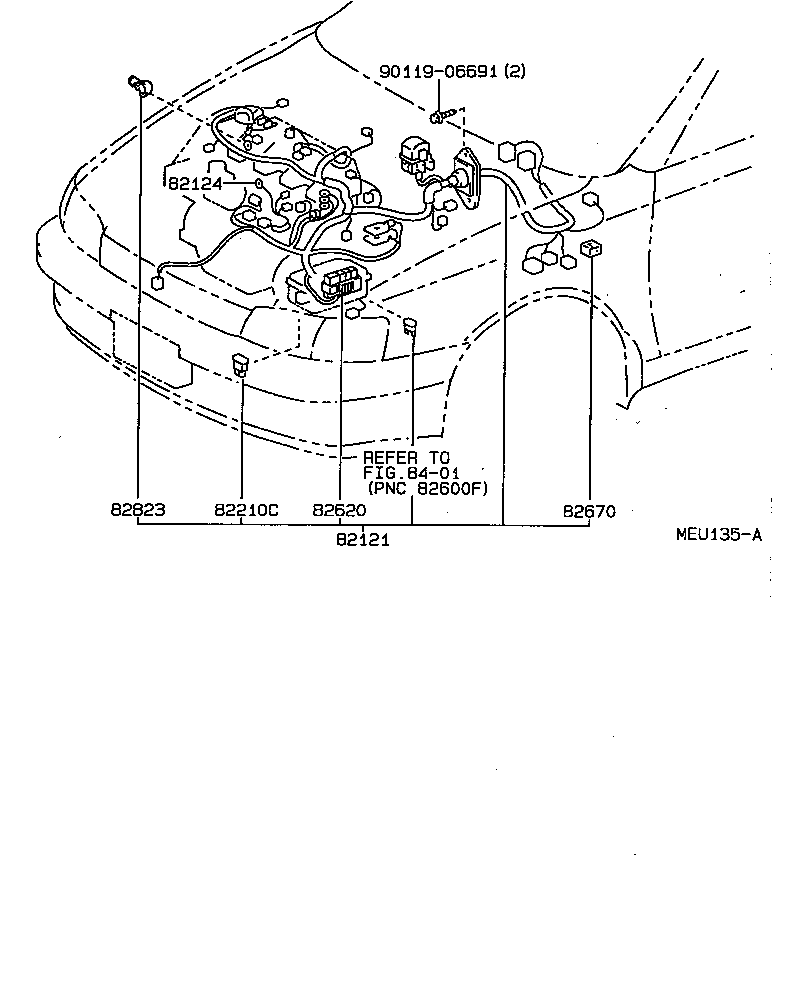

| 82124 | Wire, Engine, NO.4 |

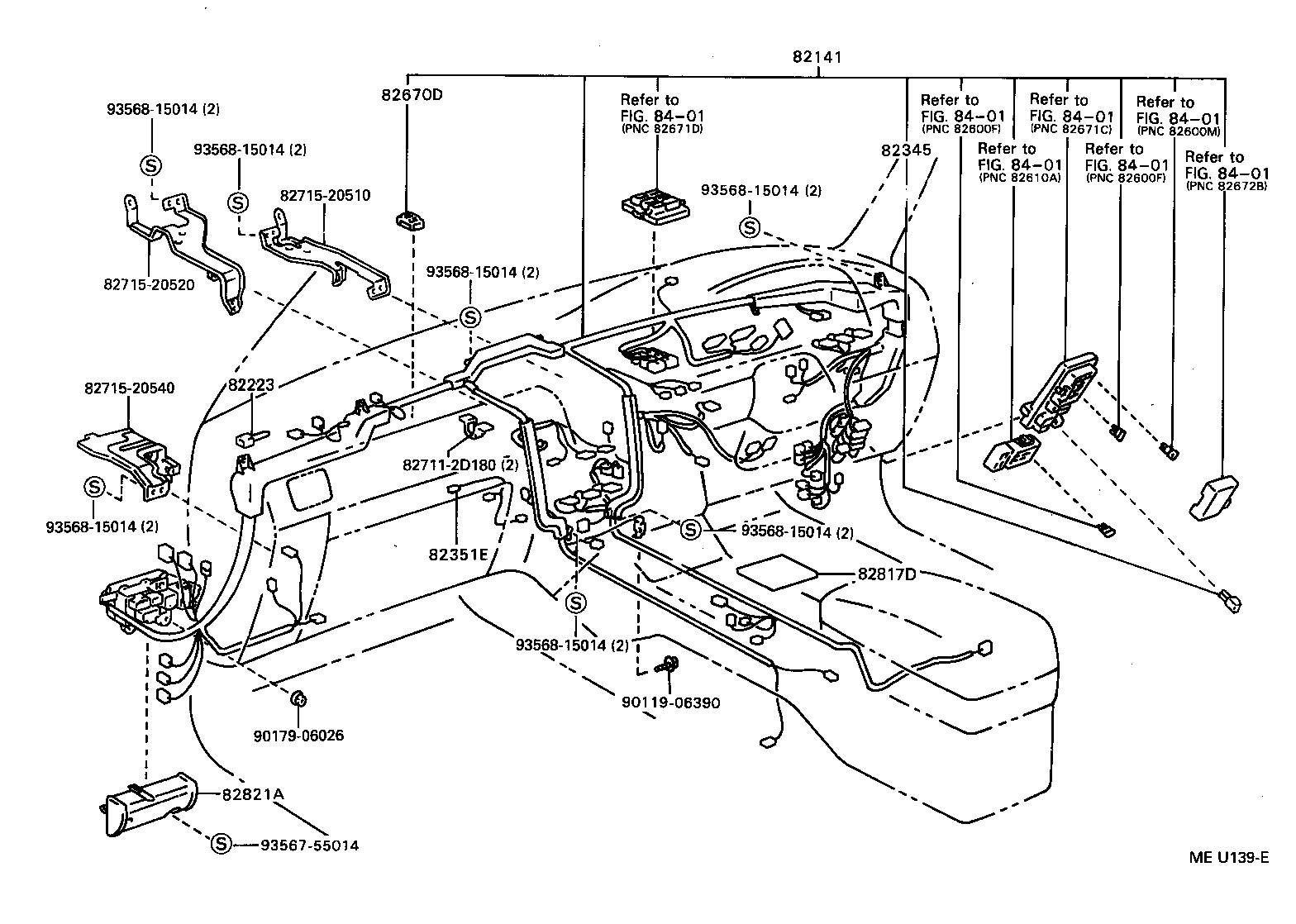

| 82141 | Wire, Instrument Panel |

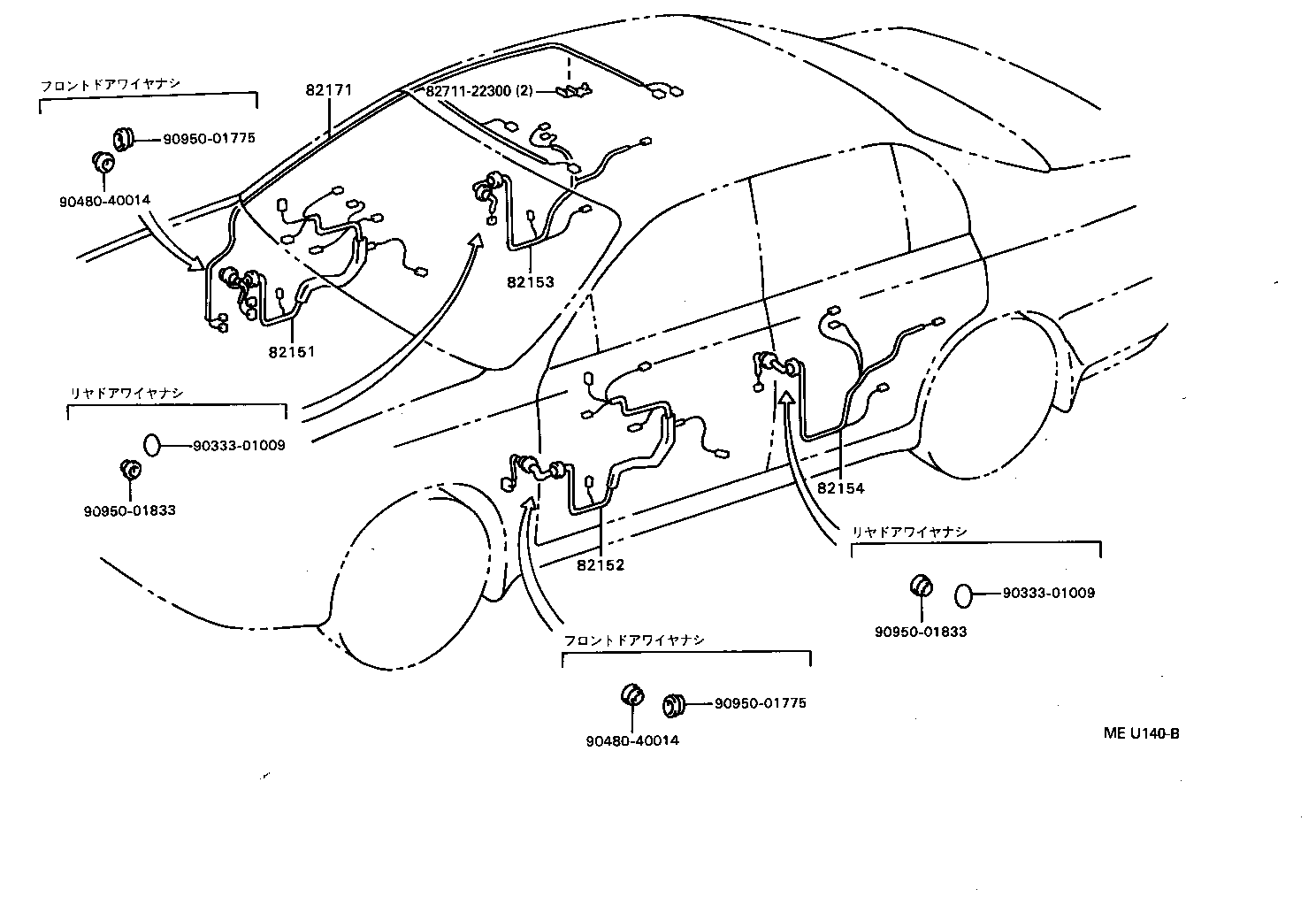

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

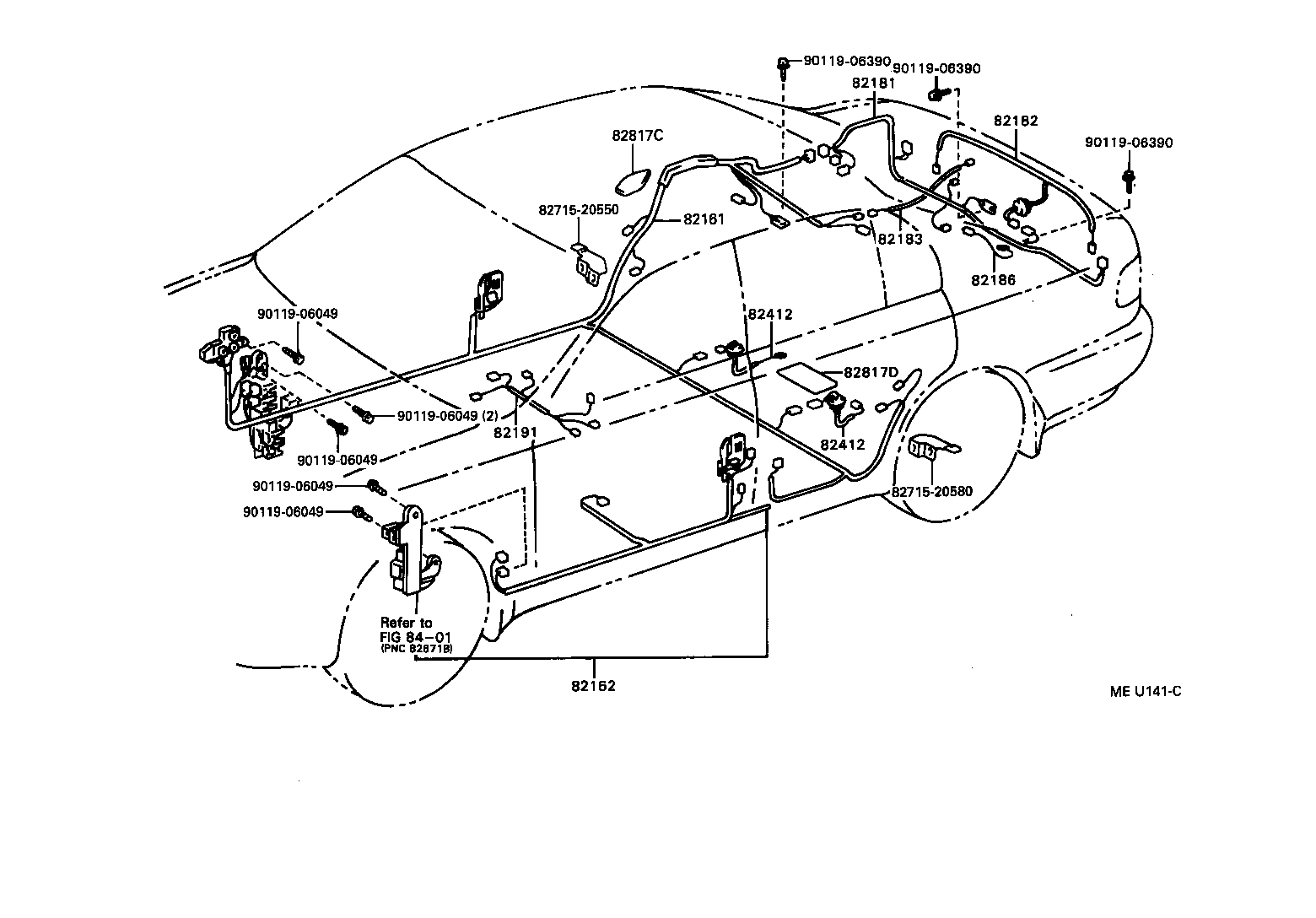

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82186 | Wire, Rear Window, NO.1 |
| 82191 | Wire, Front Seat, RH |
| 82210C | Fusible Link |
| 82219A | Wire, Sensor |
| 82223 | Wire, Switch |
| 82345 | Diode |
| 82351E | Wire, Courtesy Lamp Switch (FOR GLOVE BOX) |
| 82412 | Wire, Fuel Gage |
| 82620 | Block Assy, Fusible Link |
| 82670 | Block Assy, Junction, NO.1 |
| 82670D | Block Assy, Junction,NO.2 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82821A | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 82824 | Connector, Wiring Harness |
| 82981 | Wire, Headlamp Repair |
| 82982 | Wire, Clearance Lamp Repair |
| 82983 | Wire, Front Turn Signal Lamp Repair |
| 82984 | Wire, Horn Repair |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
