Toyota Carina FF
1992-08 → 1996-08 · chassis AT19#,CT19#,ST19# · catalogue 231130 · Japan
Discontinued model
Data version 1997-01
Meter
20 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

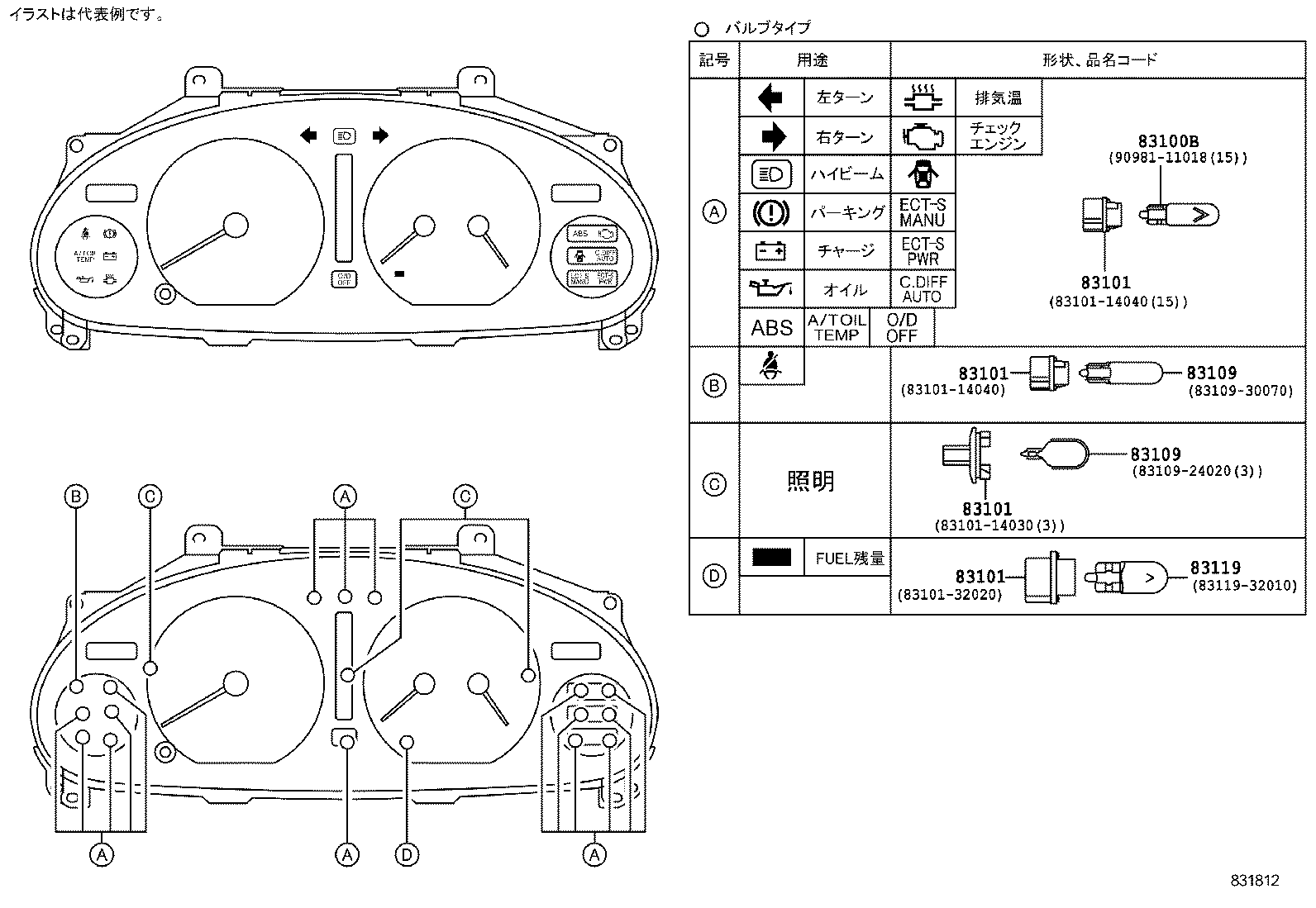

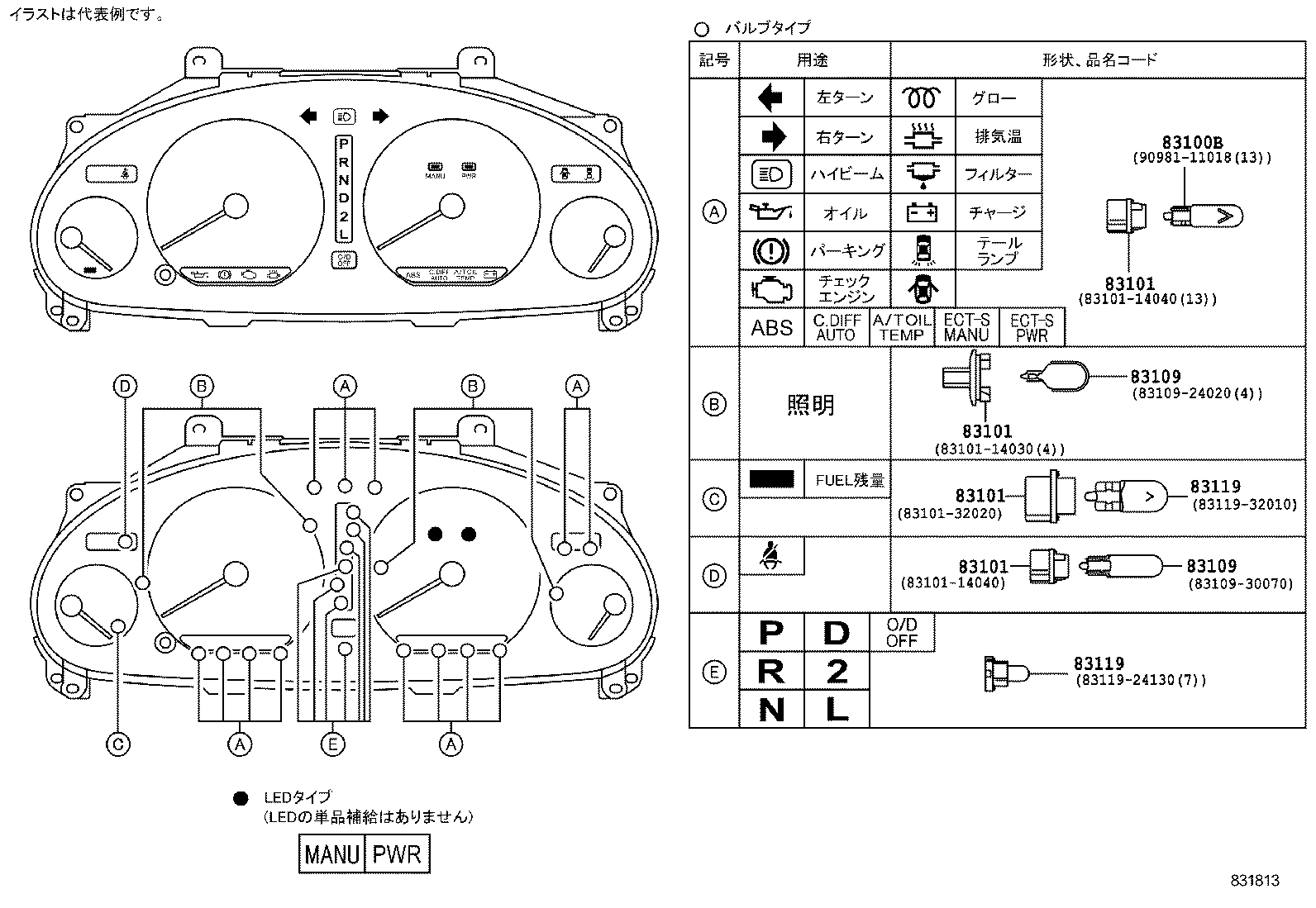

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83109 | Bulb, Combination Meter, NO.2 |

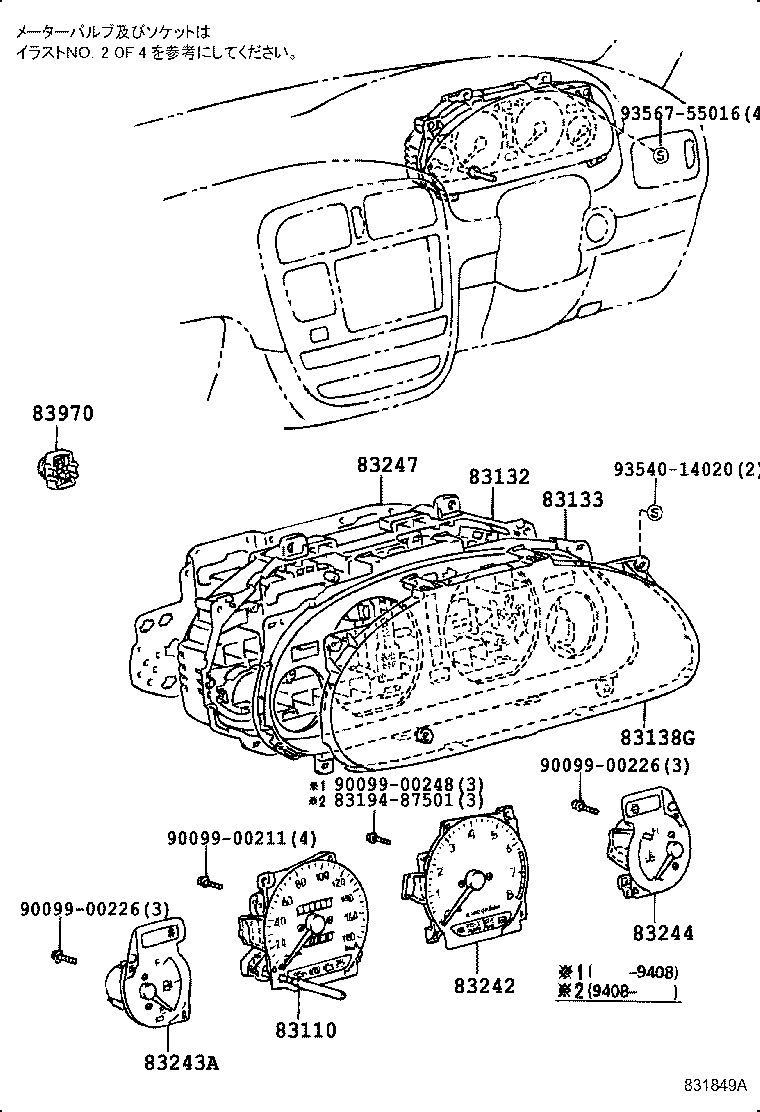

| 83110 | Speedometer Assy |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |

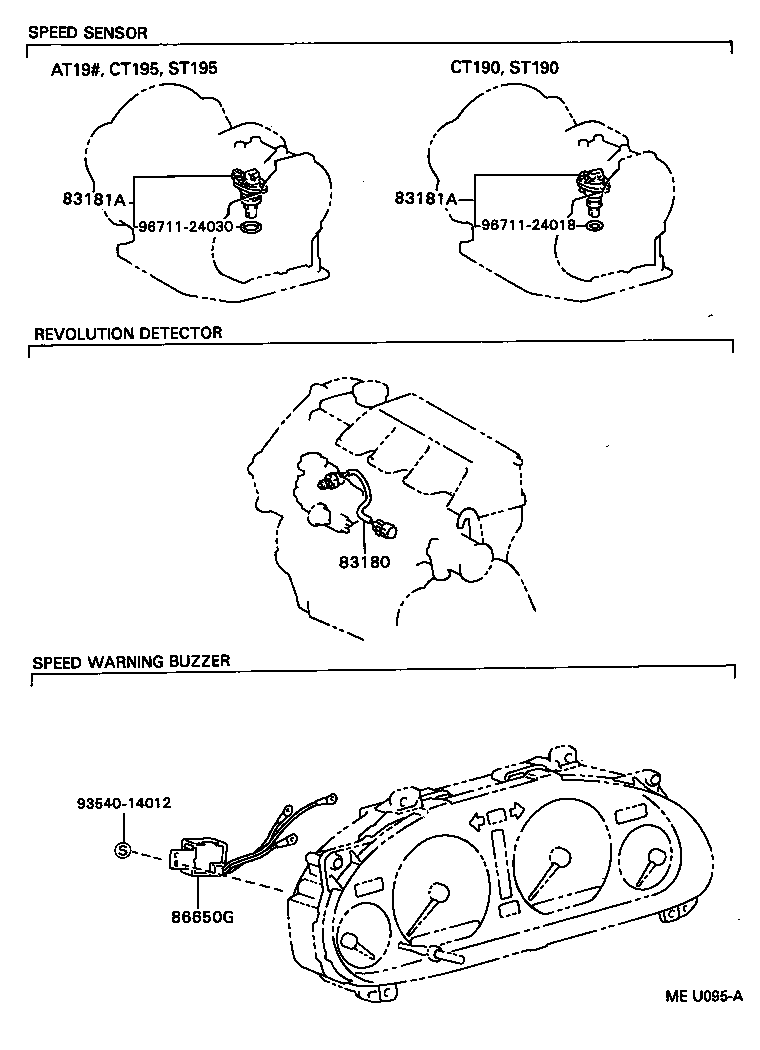

| 83180 | Detector Assy, Revolution |
| 83181A | Sensor, Speedometer |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83291 | Computer, Combination Meter |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83910D | Cap, Clock Indicator Bulb |
| 83970 | Buzzer Assy, Reverse Warning |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
