Heating & Air Conditioning - Control & Air Duct

24 part groups · 4 illustrations

Illustrations

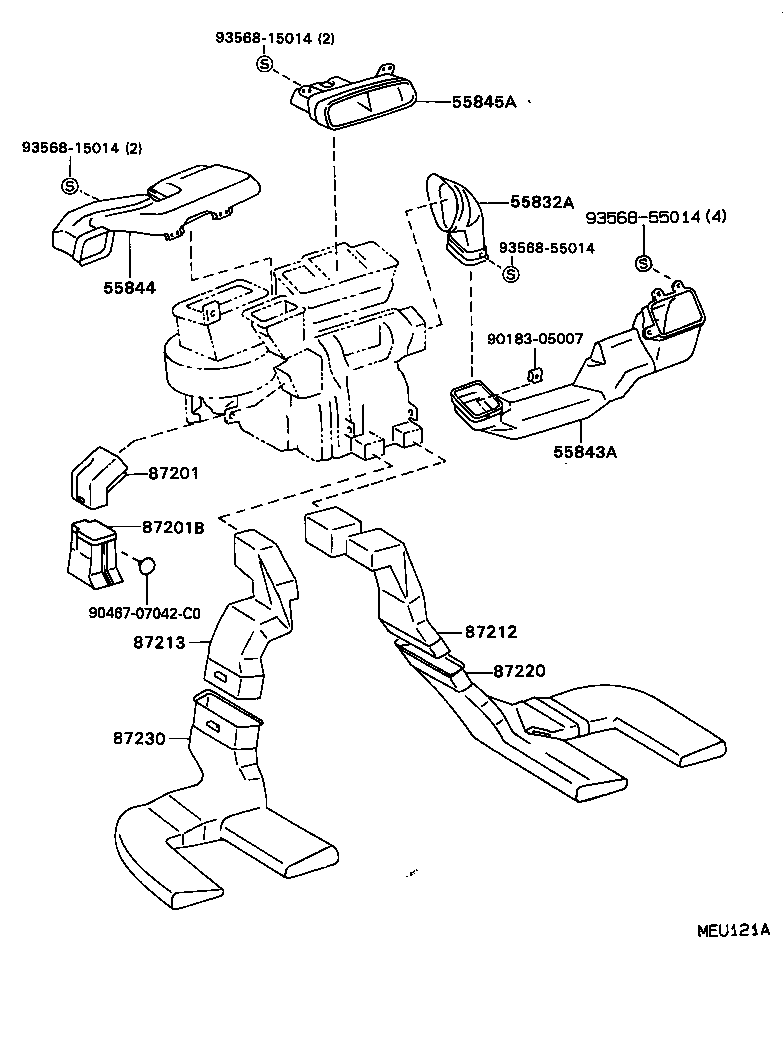

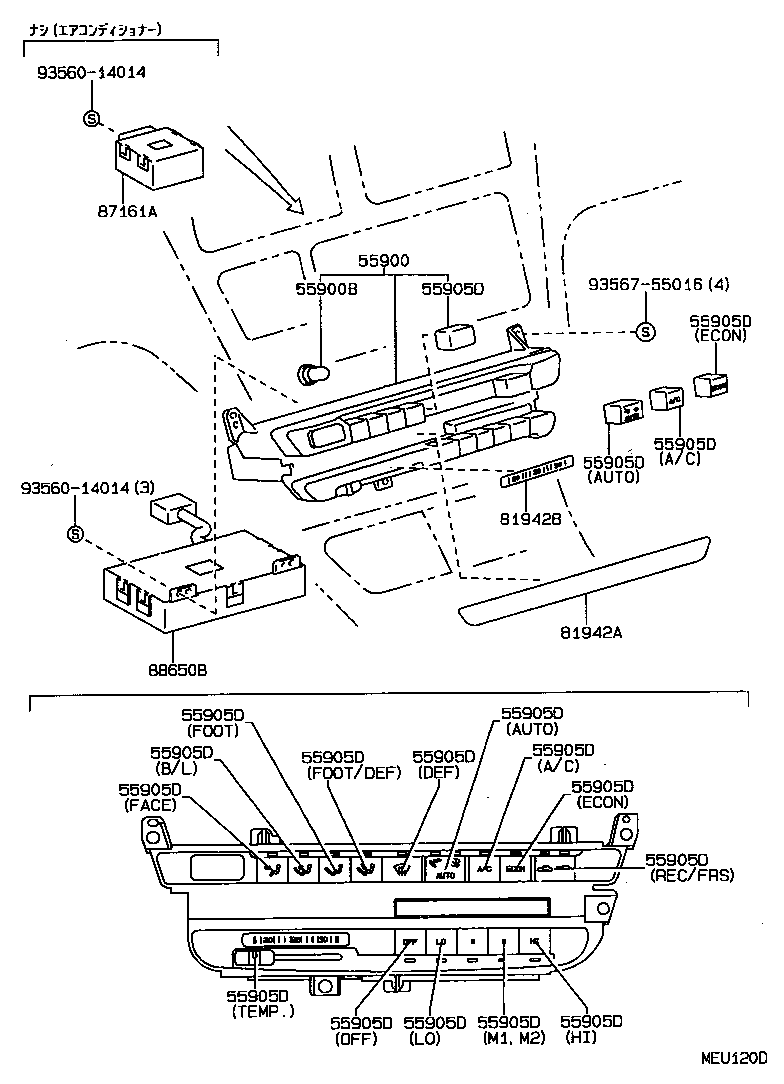

Figure MEU119C MEU119C 1992-08 → — Figure MEU120D MEU120D 1992-08 → — Figure MEU121A MEU121A 1992-08 → — Figure MEU122B MEU122B 1992-08 → —

Part groups

PNCDescription
55832A Connector, Instrument Panel Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905D Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
87161A Amplifier, Heater Servo Motor
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
87230 Duct Assy, Air, Heater
88625C Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
