Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

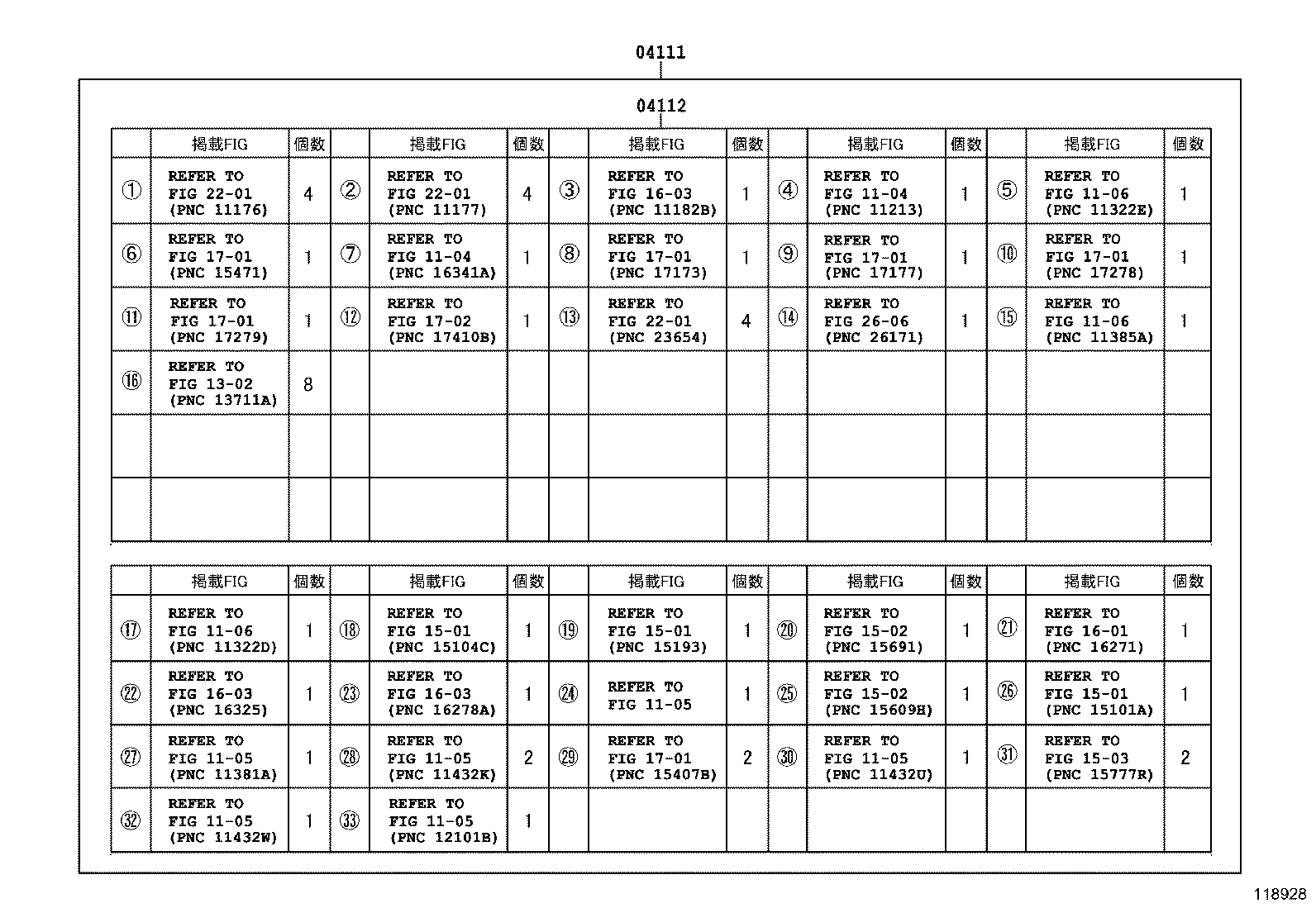

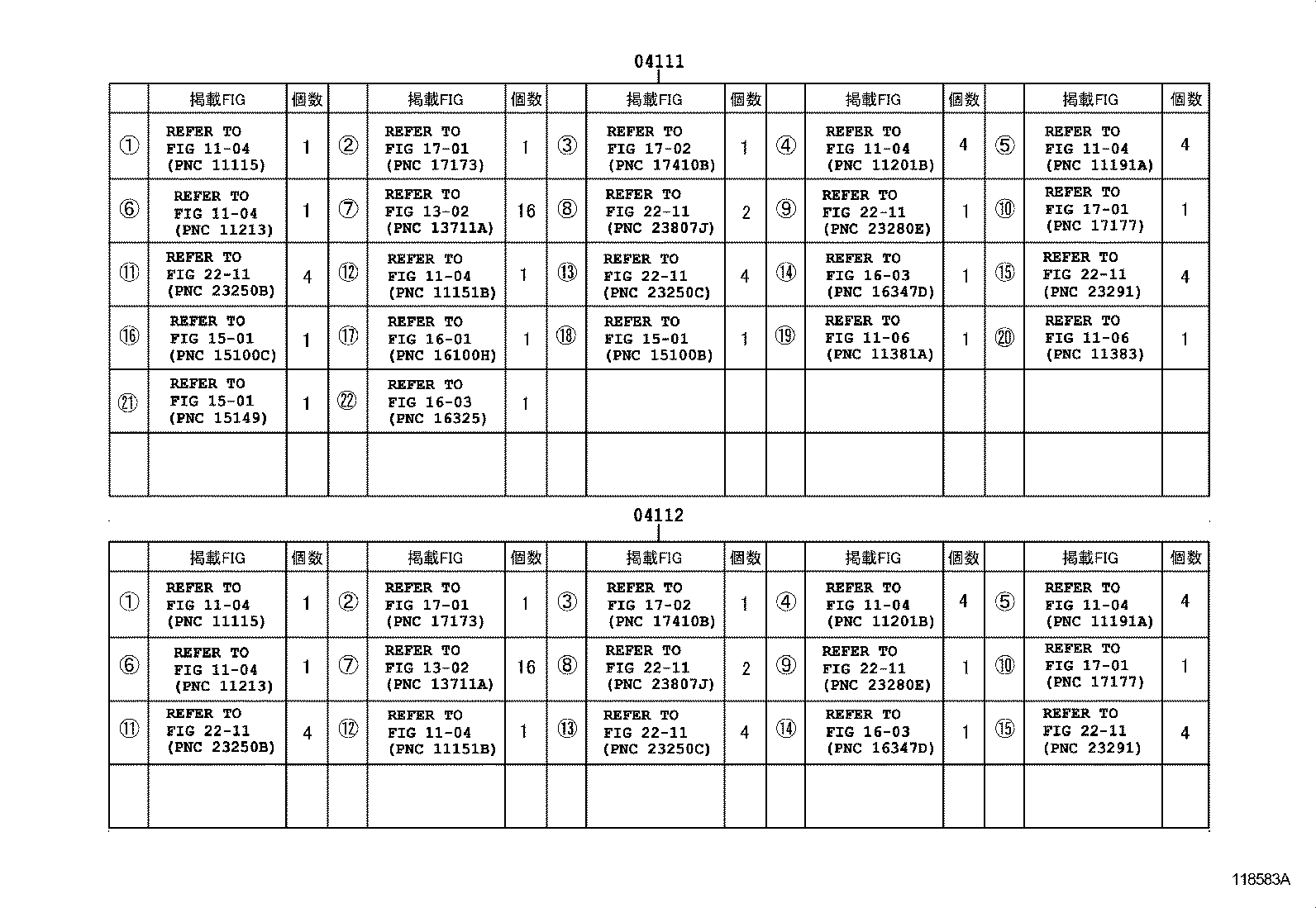

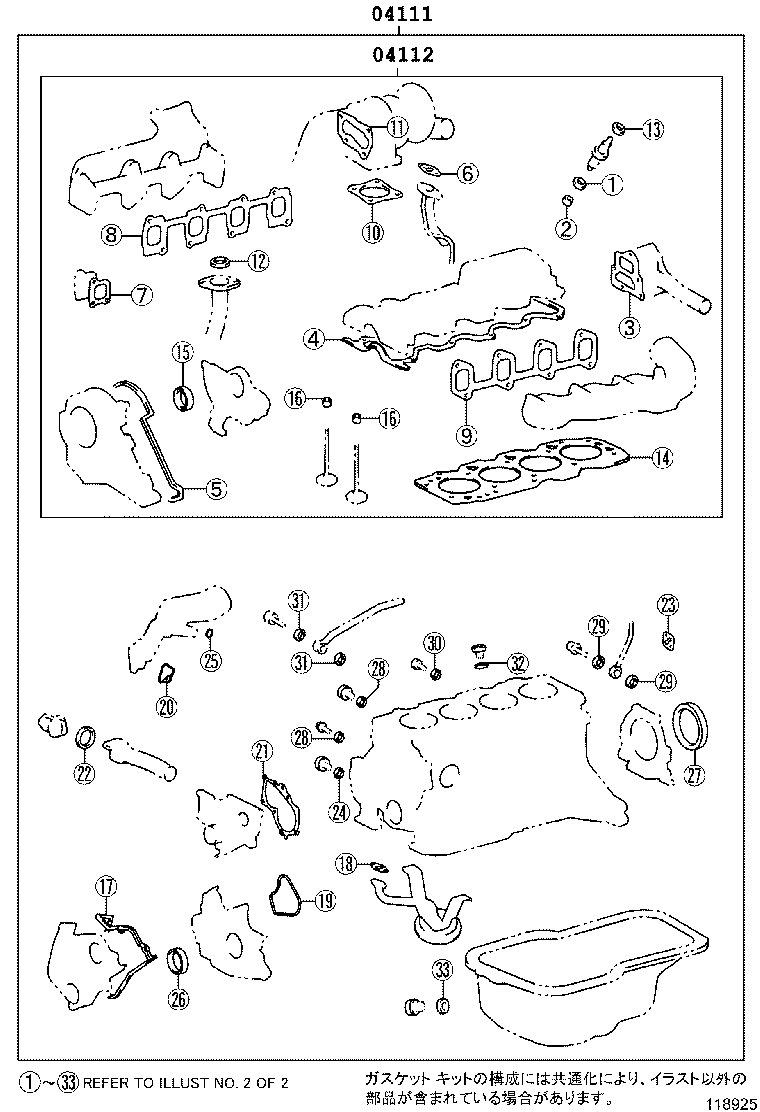

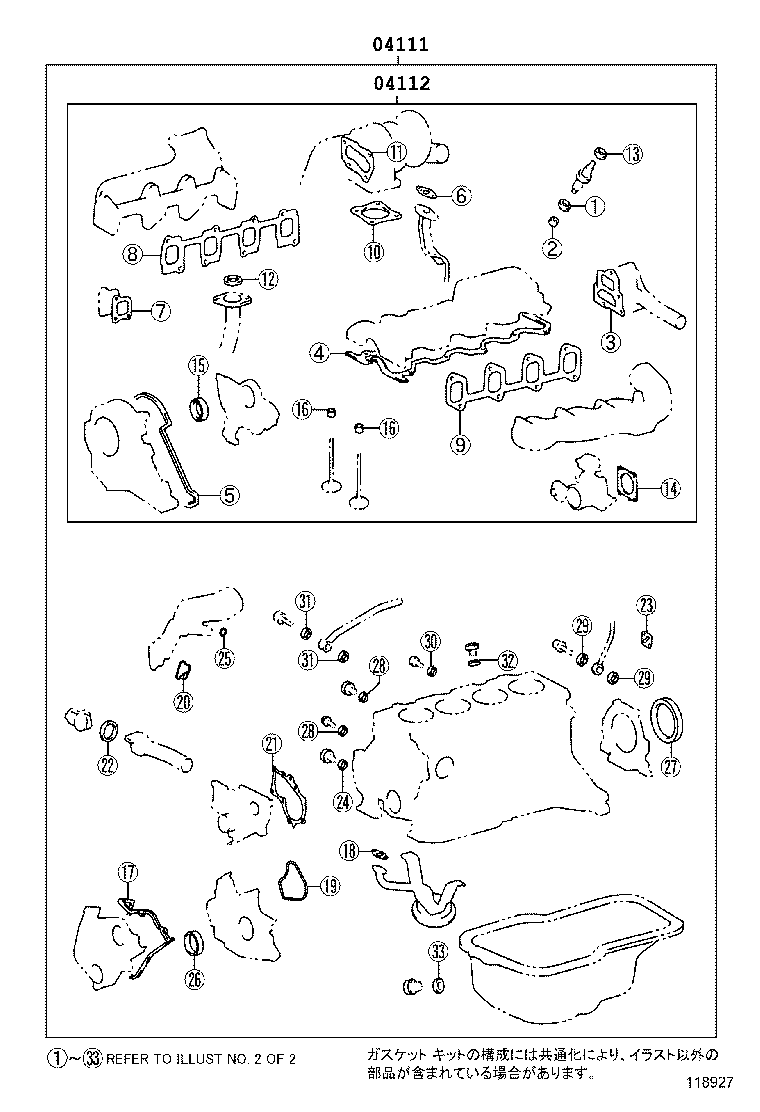

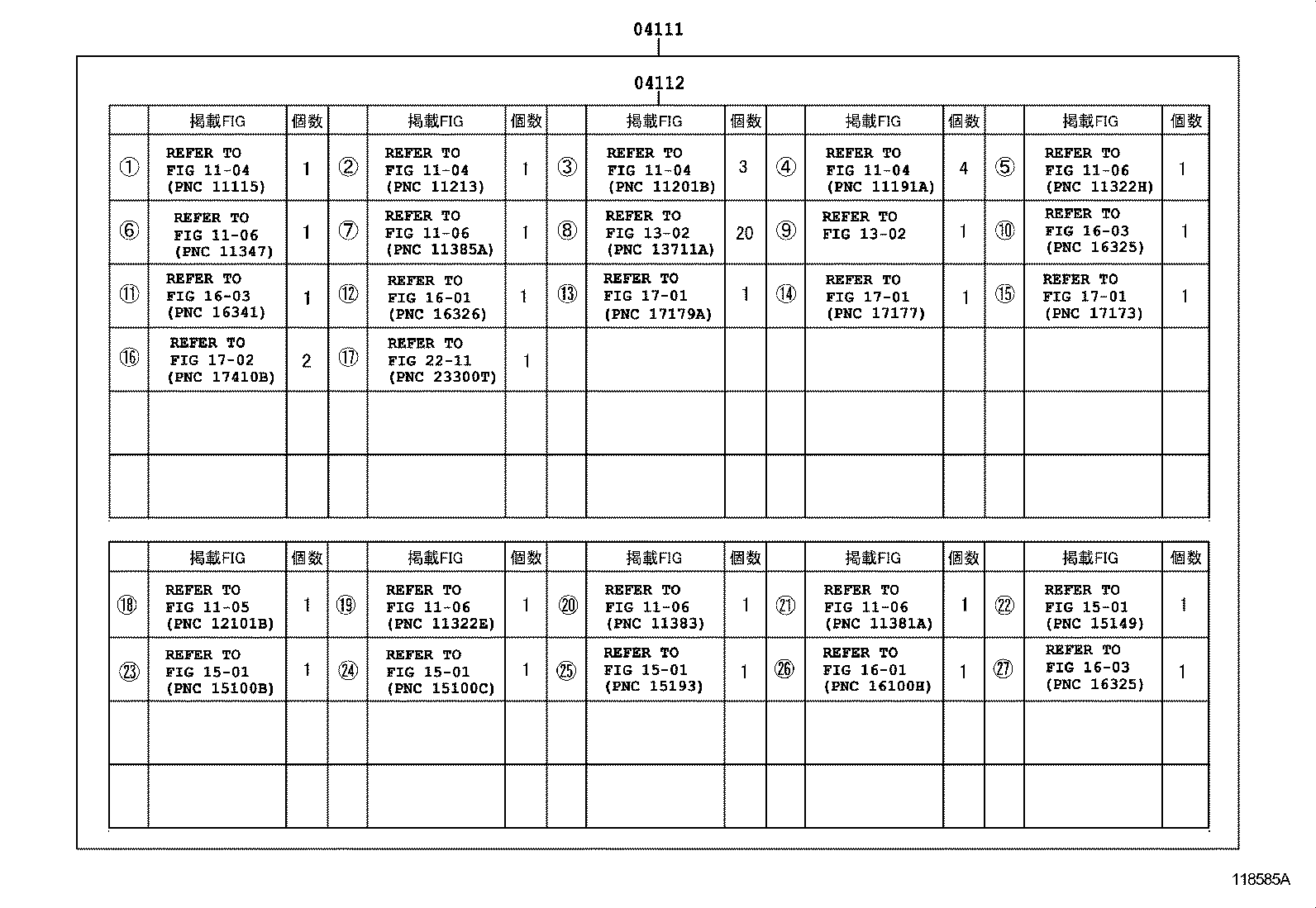

Figure 110106E 110106E 1996-08 → — Figure 118585A 118585A 1996-08 → — Figure 111528A 111528A 1996-08 → — Figure 118583A 118583A 1996-08 → — Figure 118925 118925 1996-08 → 1998-08 Figure 118926 118926 1996-08 → 1998-08 Figure 118927 118927 1998-08 → — Figure 118928 118928 1998-08 → — Figure 110016A 110016A 1996-08 → — Figure 117946 117946 1998-06 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
