Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 8 illustrations

Illustrations

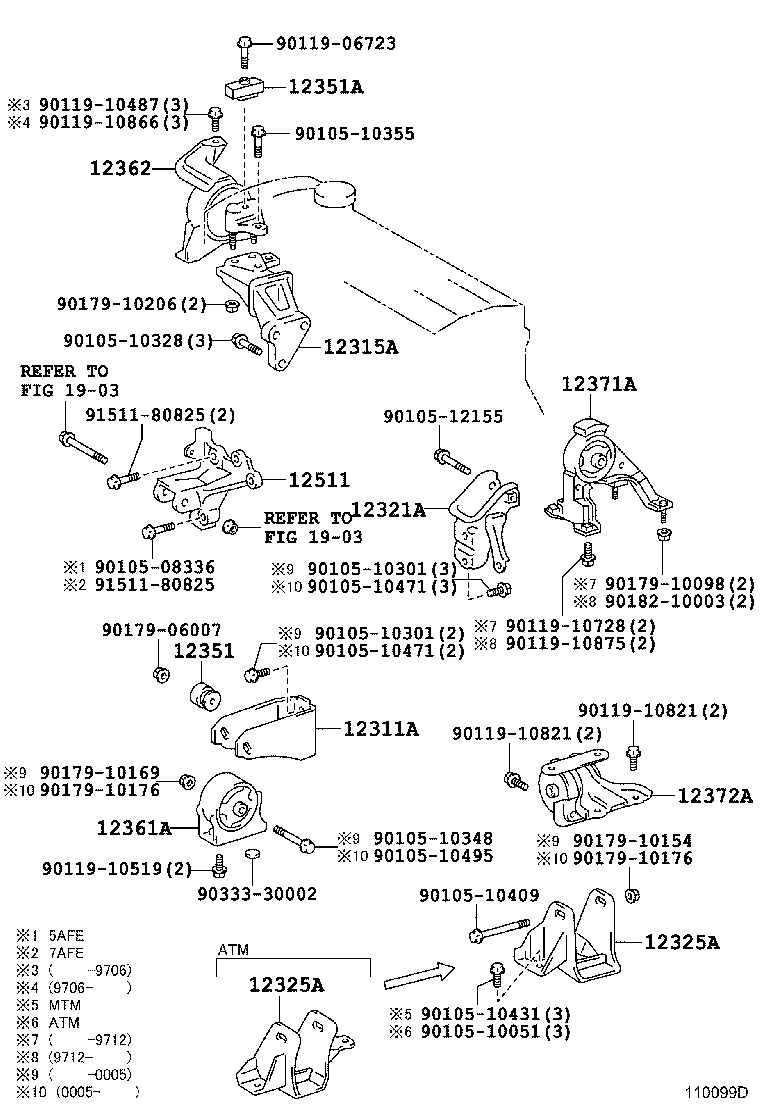

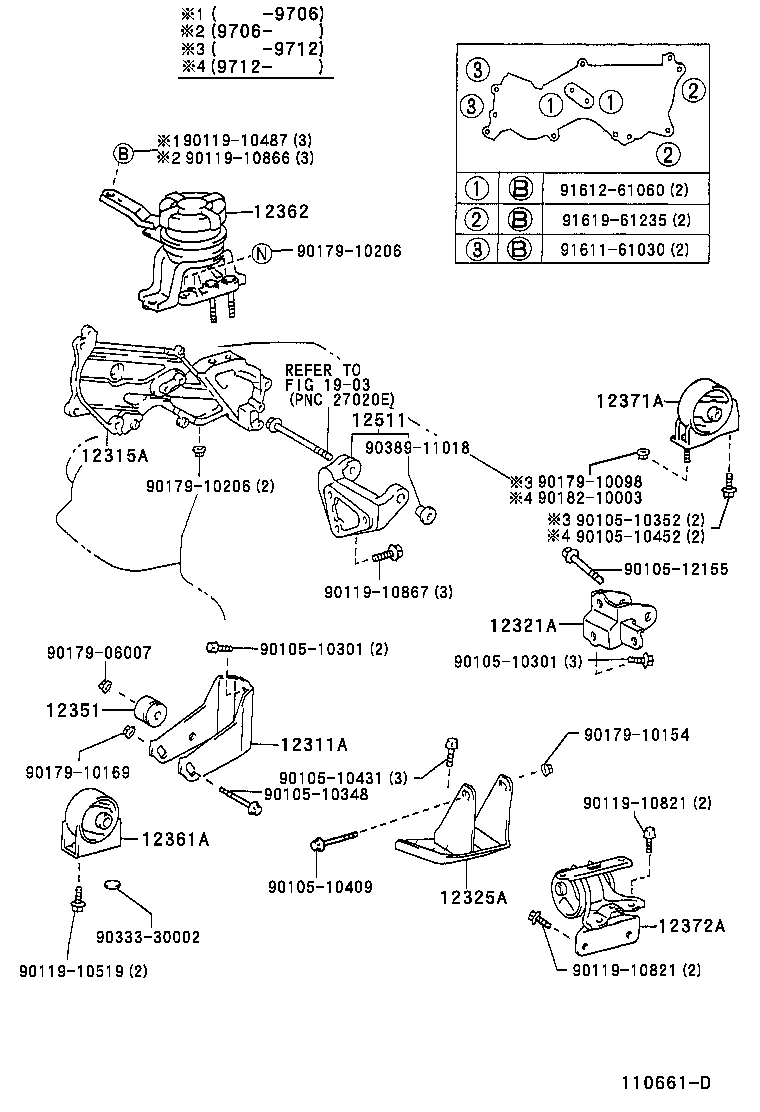

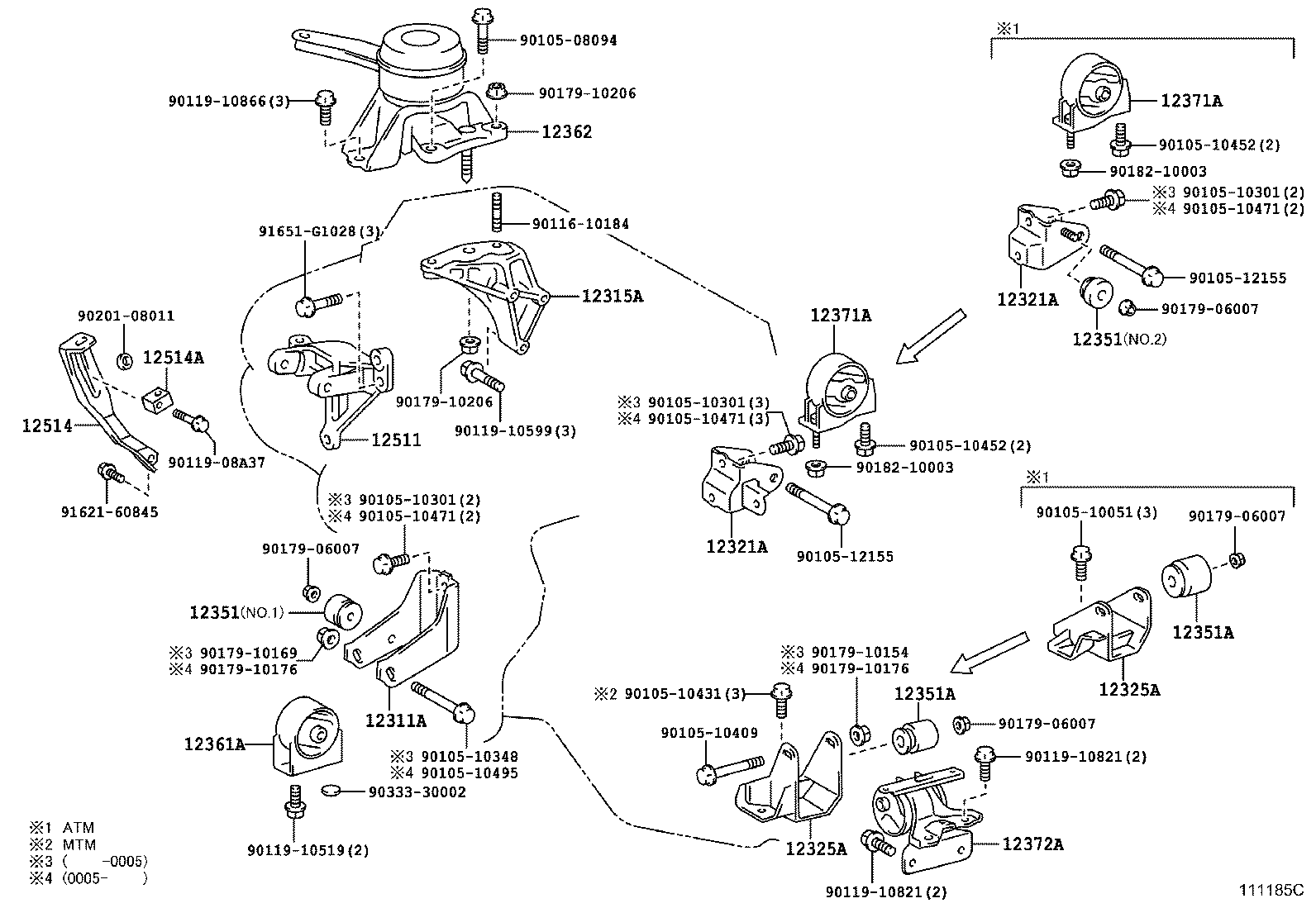

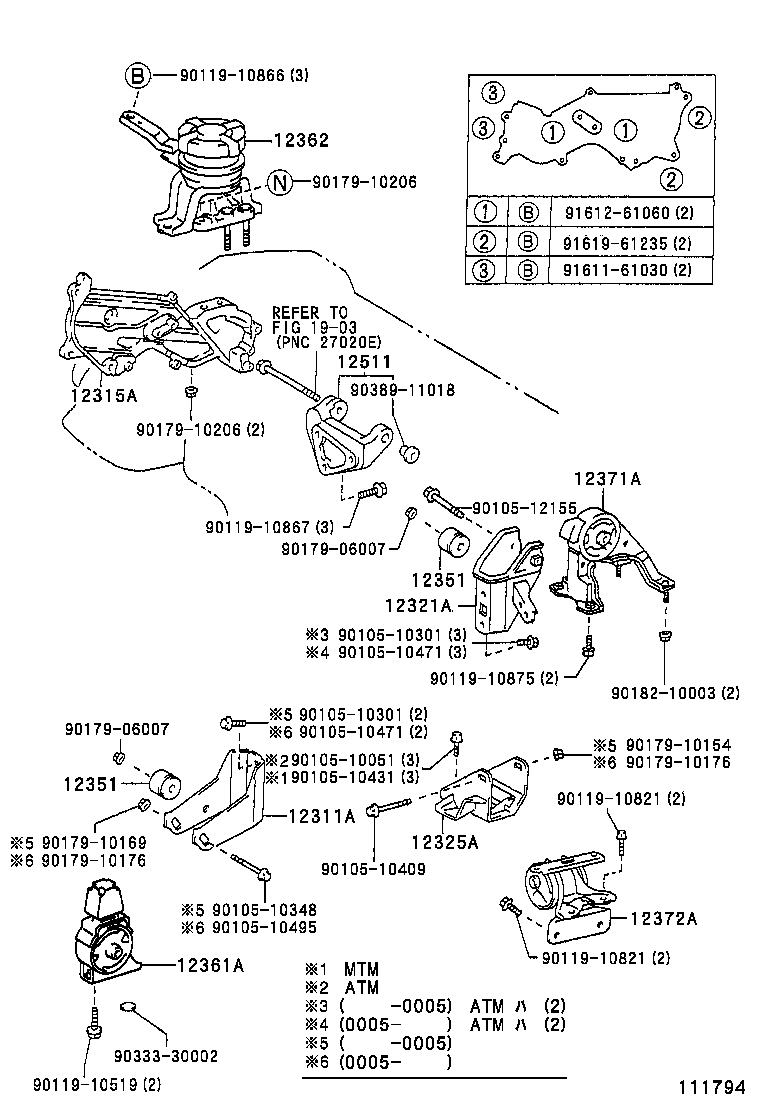

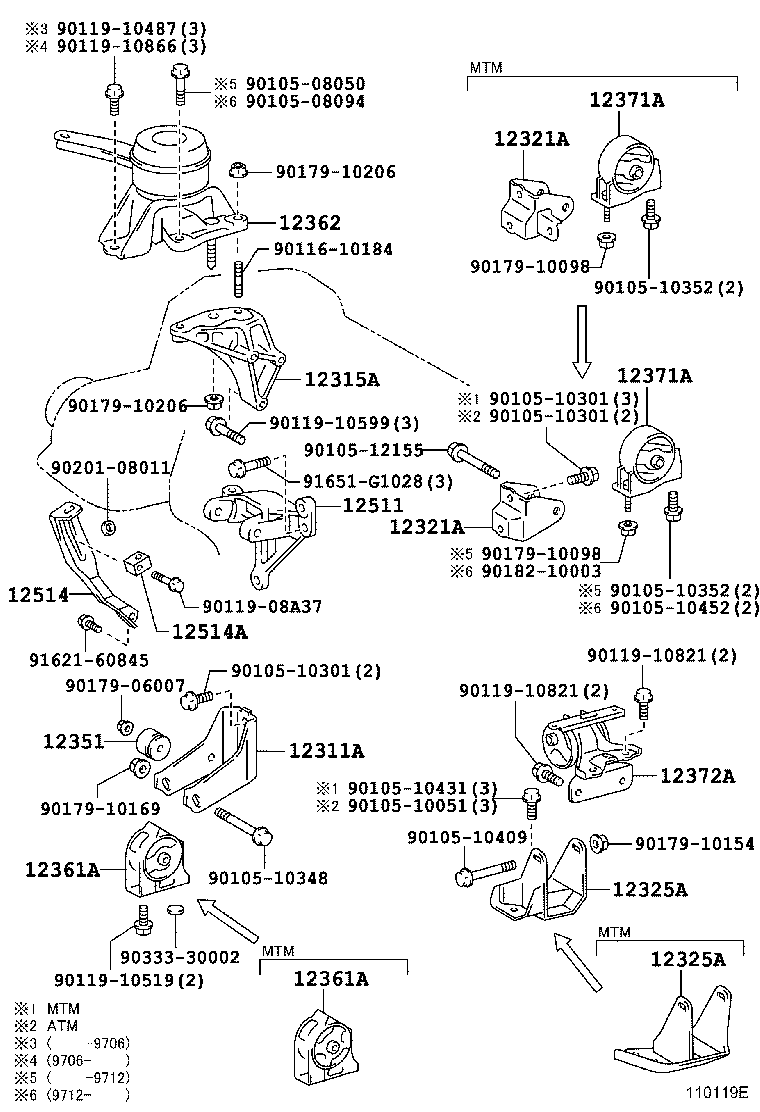

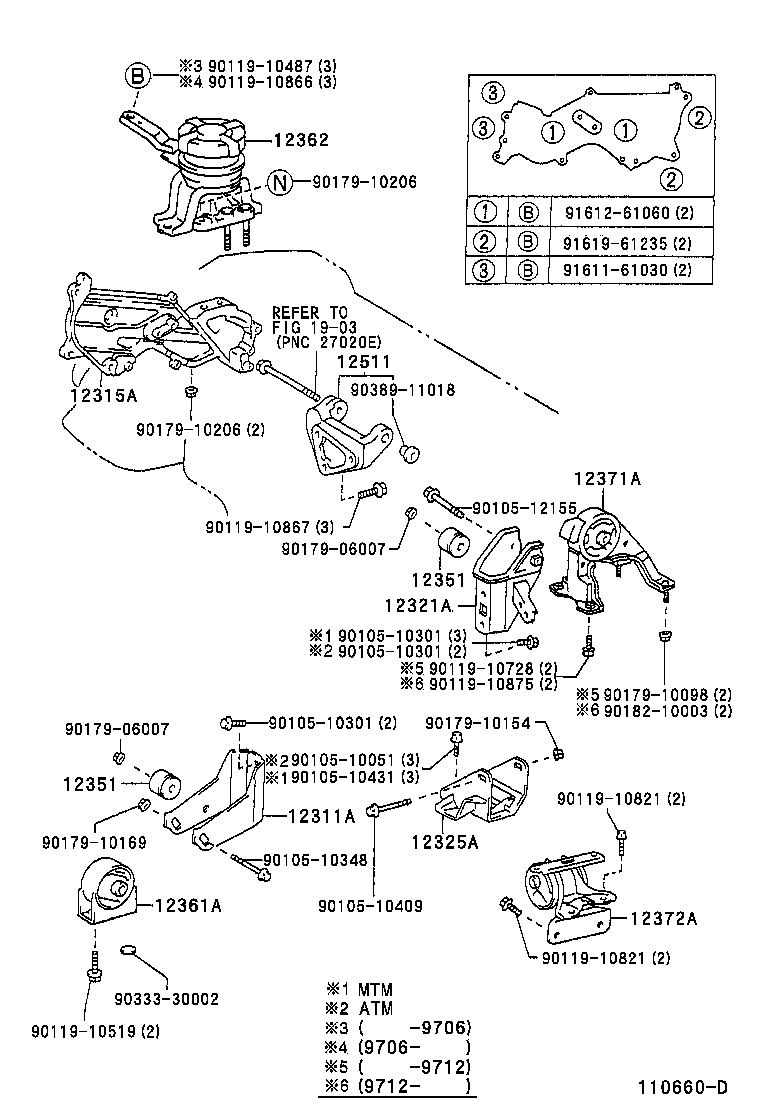

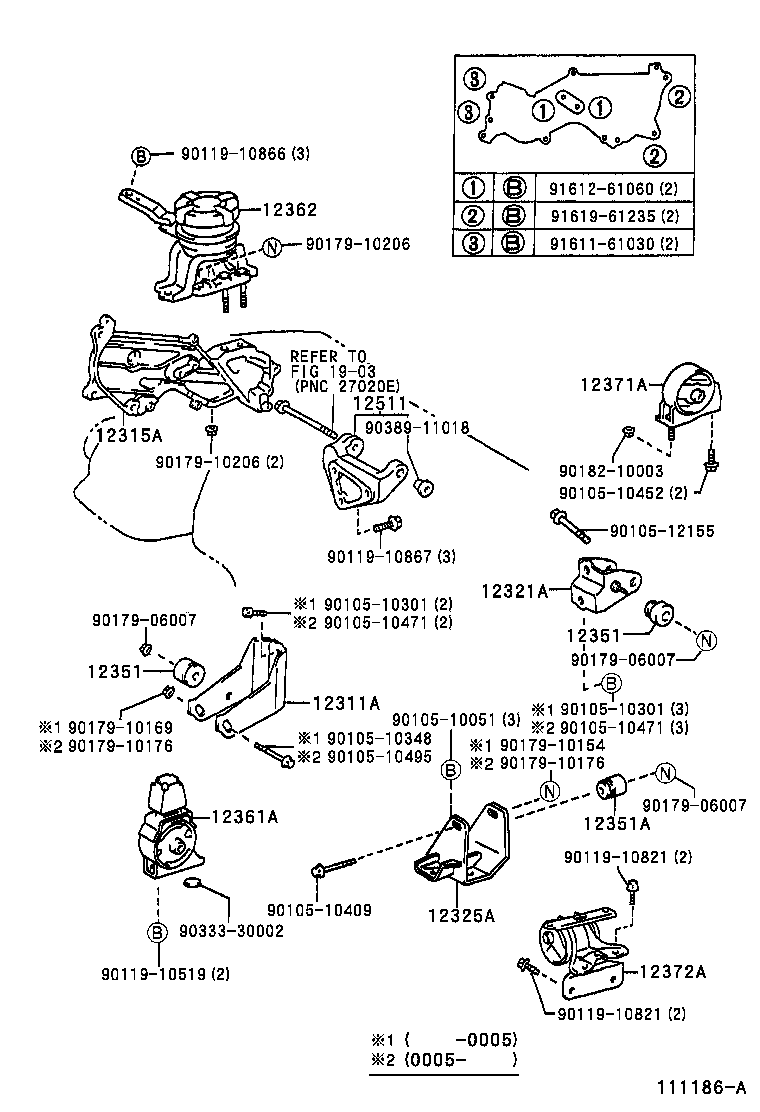

Figure 110249E 110249E 1996-08 → — Figure 110099D 110099D 1996-08 → — Figure 110660D 110660D 1996-08 → 1998-08 Figure 111794 111794 1998-08 → — Figure 110661D 110661D 1996-08 → 1998-08 Figure 111186A 111186A 1998-08 → — Figure 110119E 110119E 1996-08 → 1998-08 Figure 111185C 111185C 1998-08 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12317 Stay, Engine Mounting, RH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
13570A Idler Assy, V-ribbed, NO.1
13583A Shaft, Idler, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
