Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

25 part groups · 9 illustrations

Illustrations

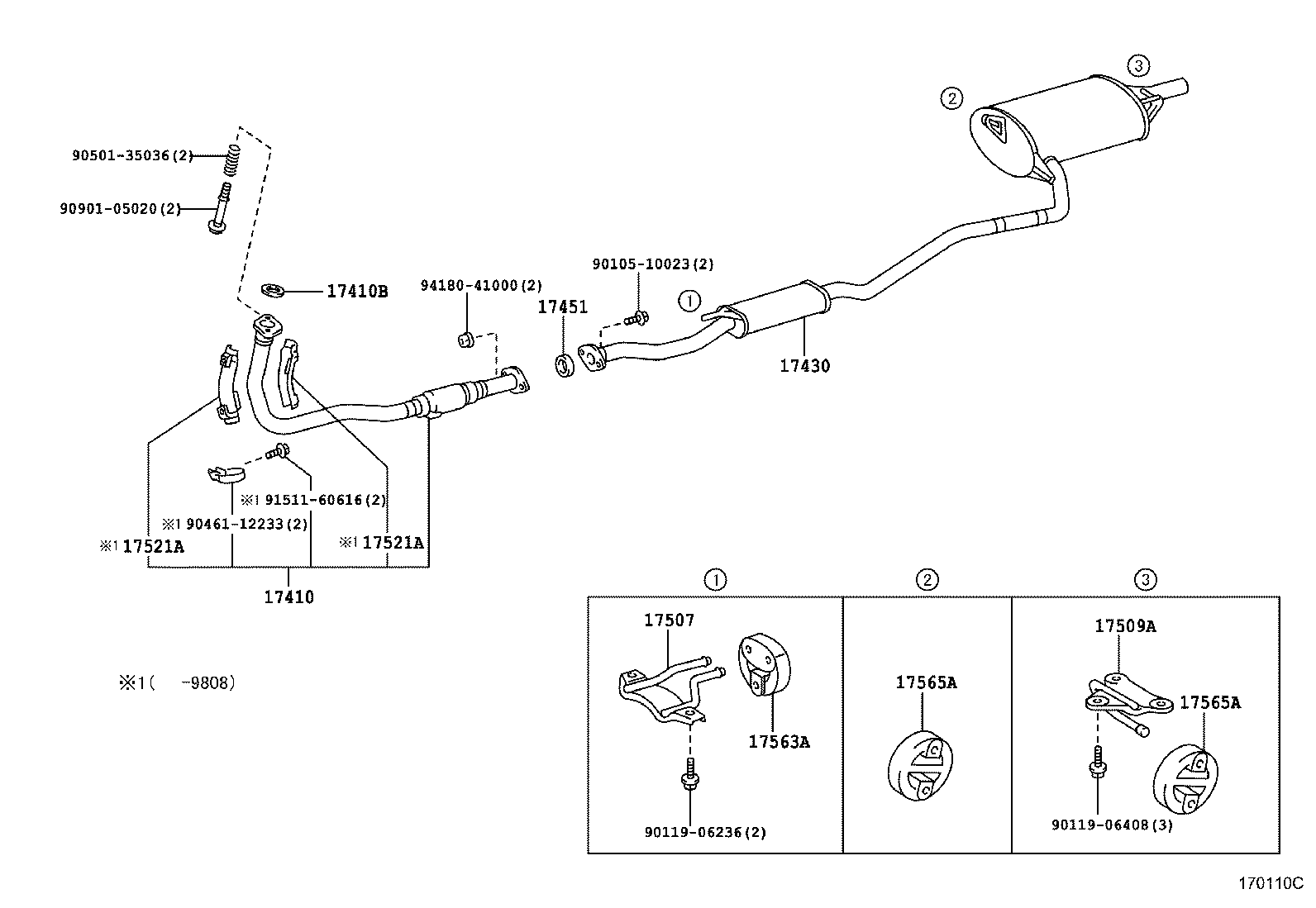

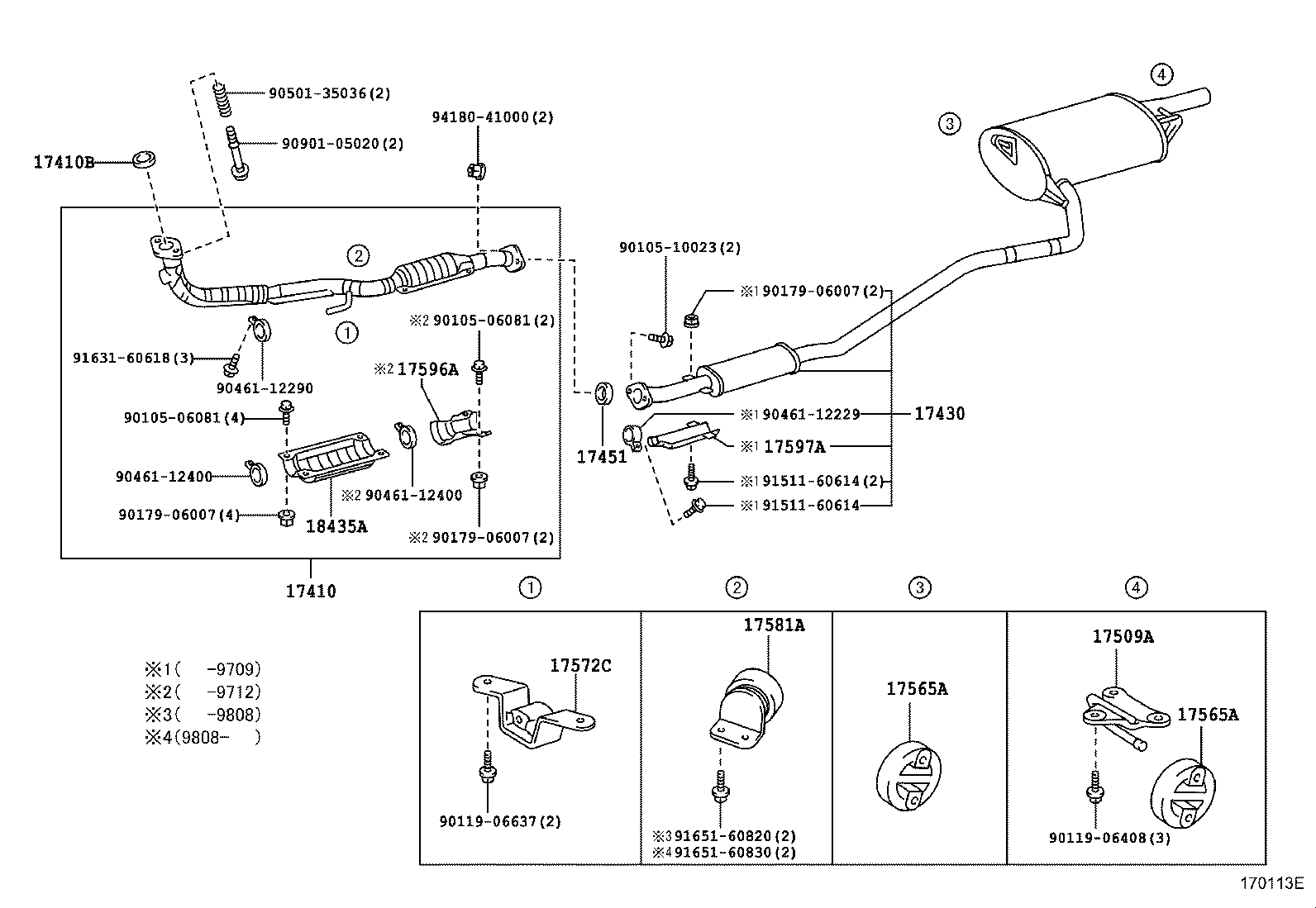

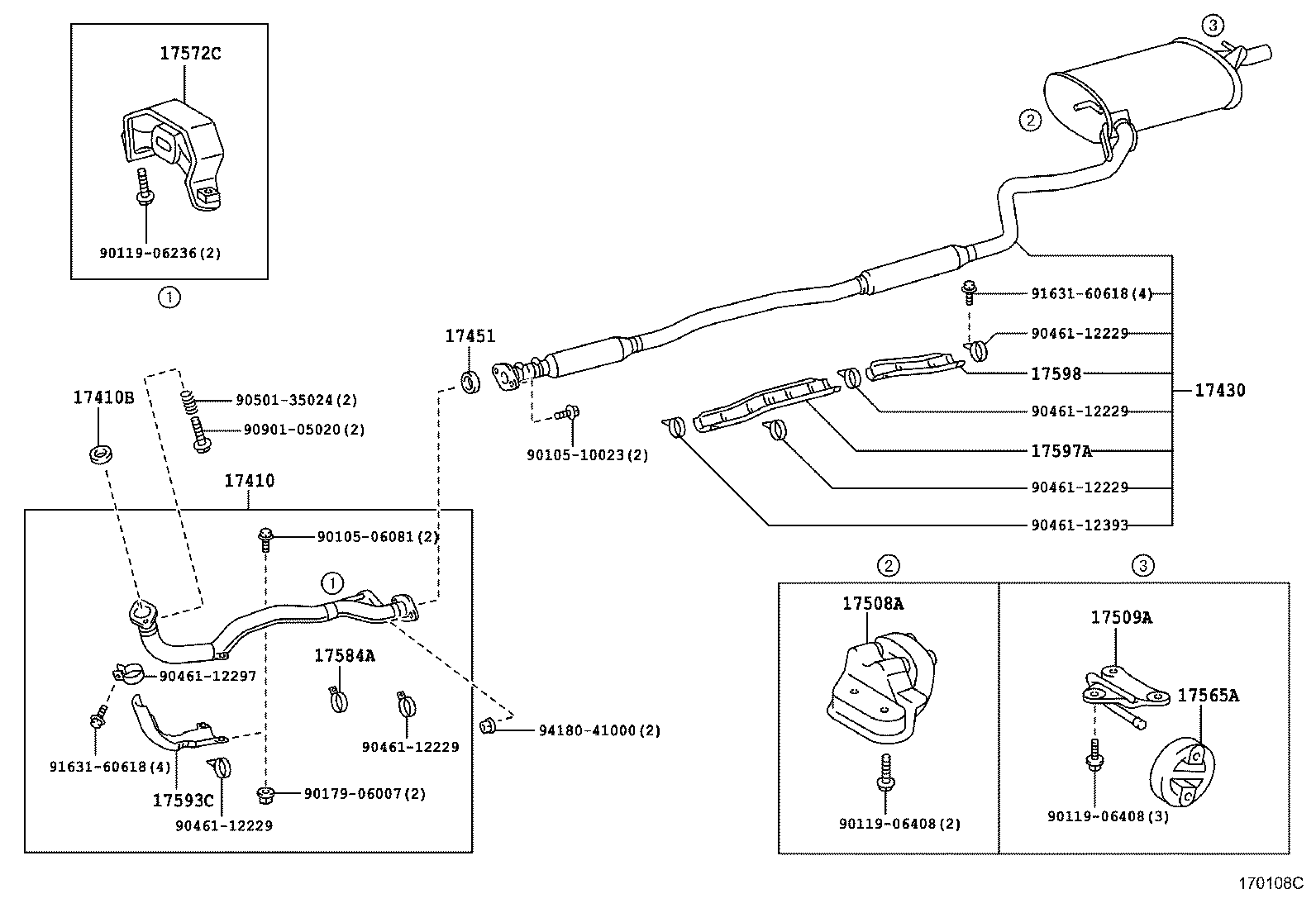

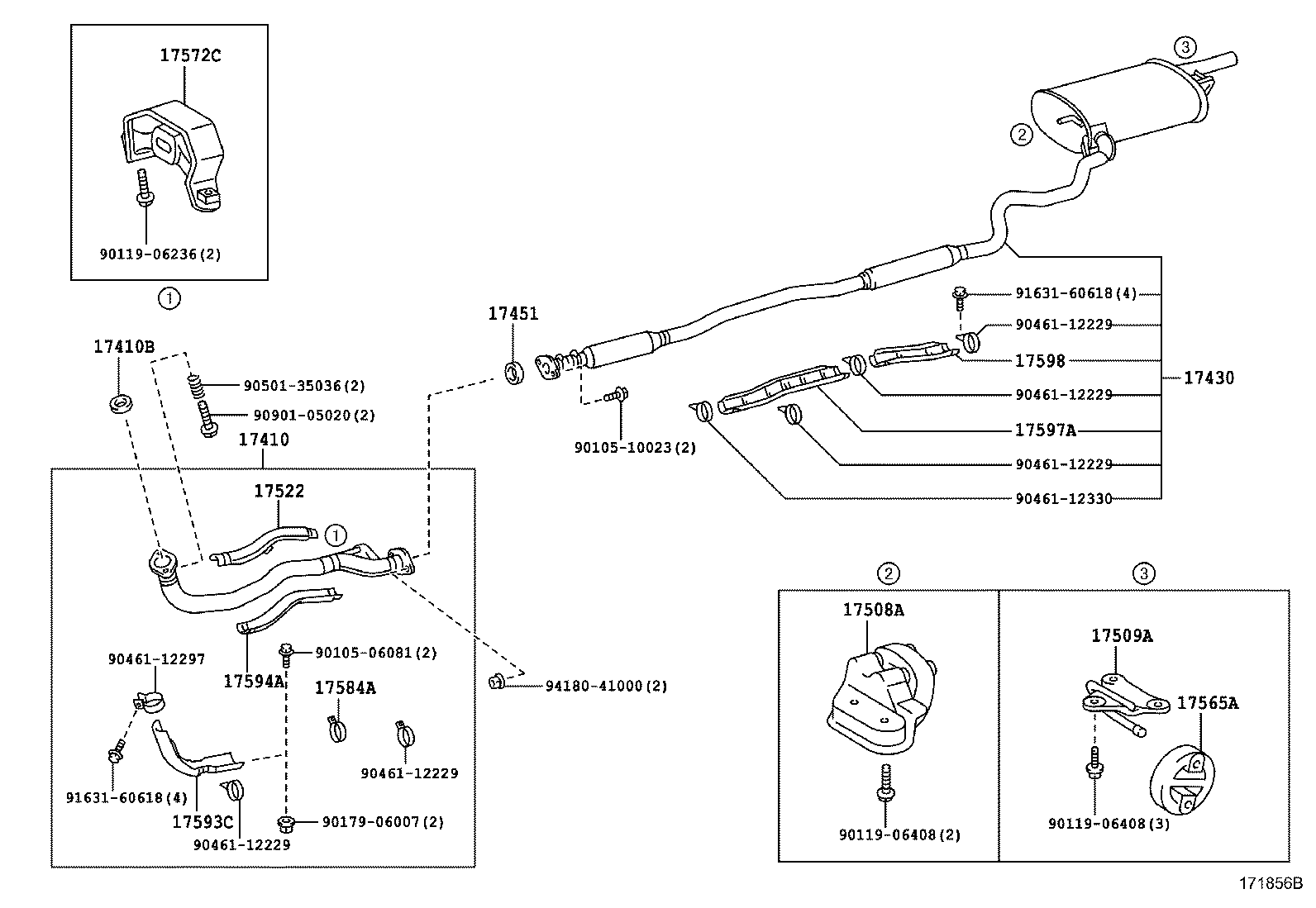

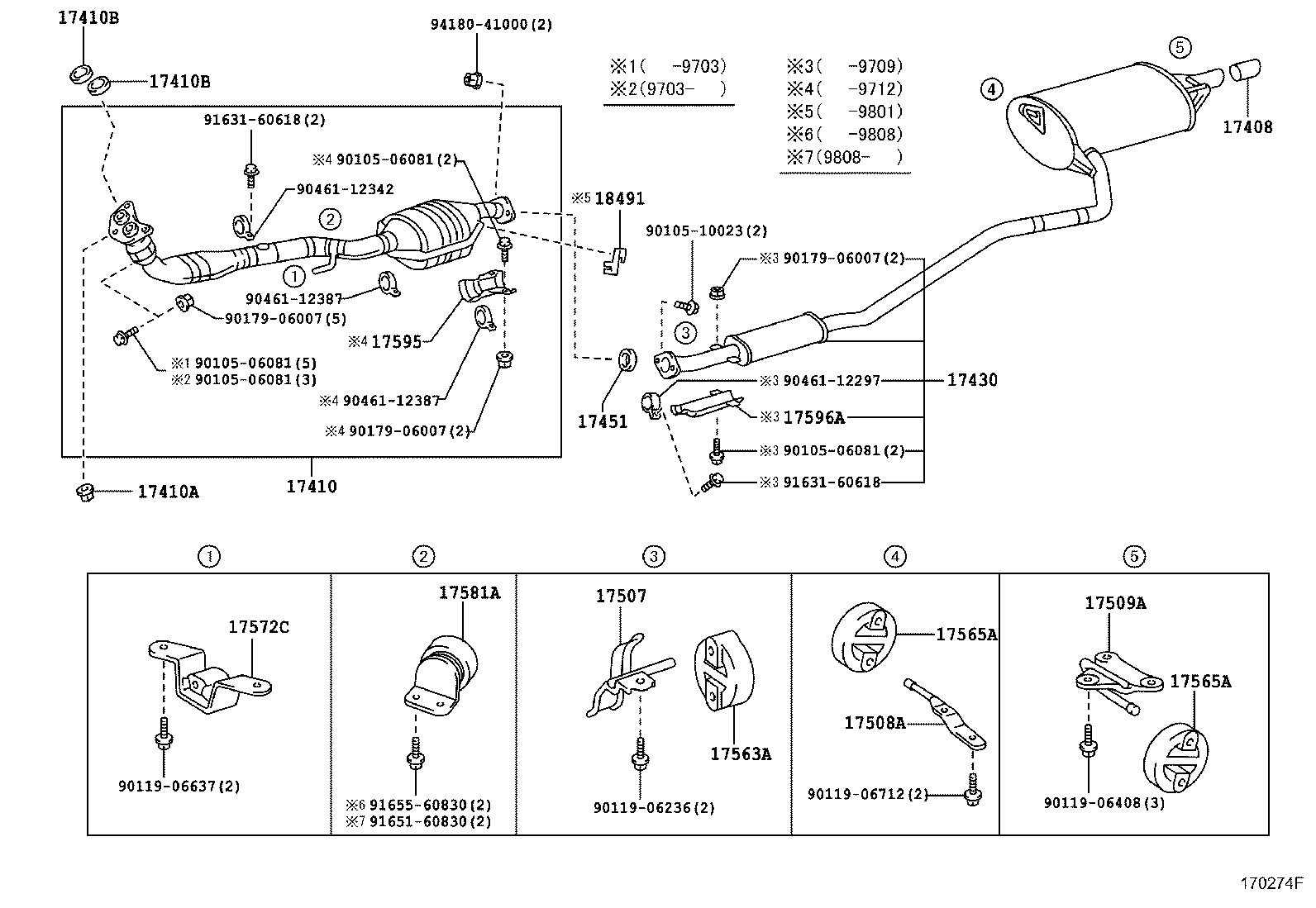

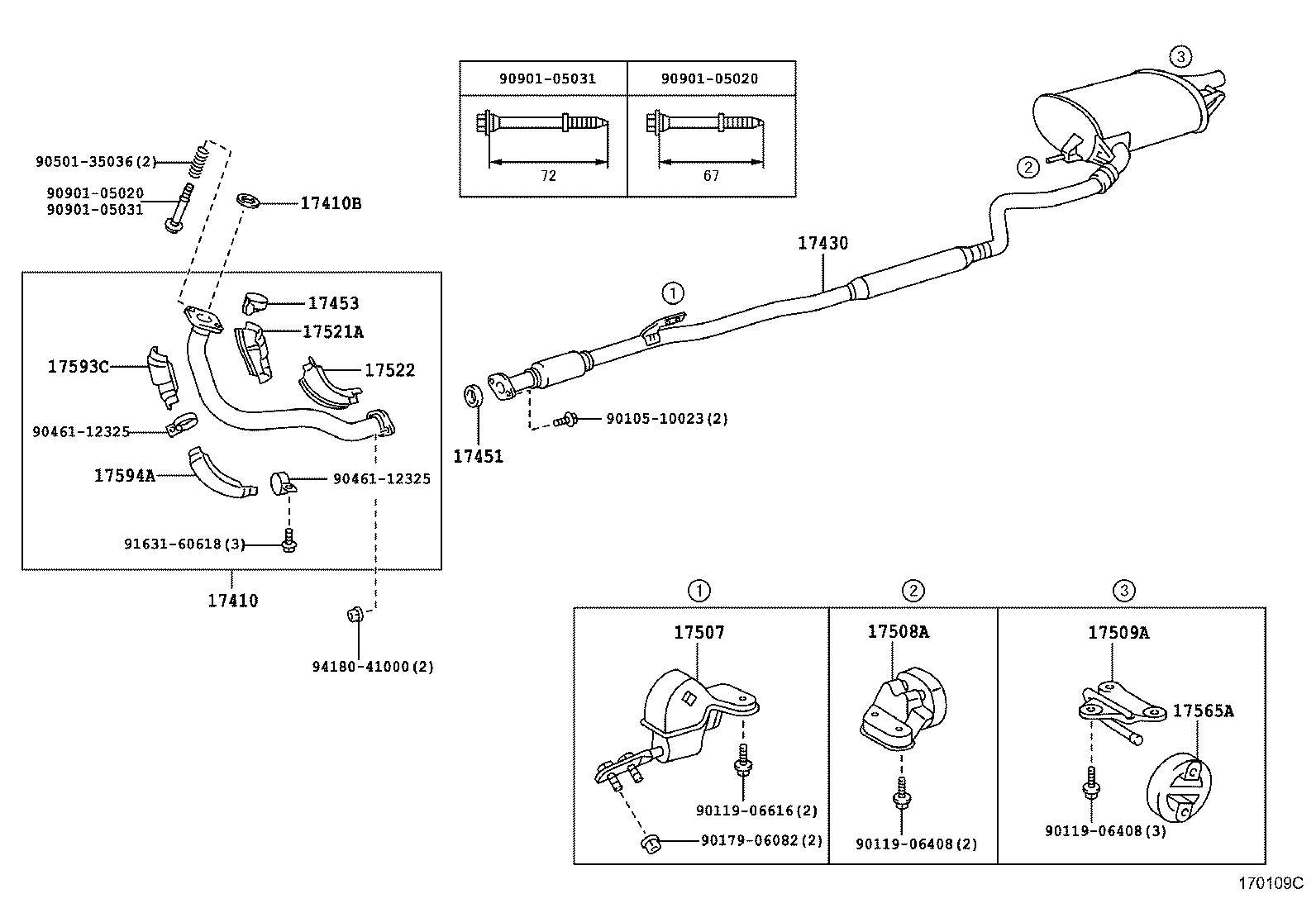

Figure 170112E 170112E 1996-08 → — Figure 170113E 170113E 1996-08 → — Figure 170274F 170274F 1996-08 → — Figure 170110C 170110C 1996-08 → 1998-08 Figure 170110C 170110C 1998-08 → — Figure 170109C 170109C 1996-08 → 1998-08 Figure 170109C 170109C 1998-08 → — Figure 170108C 170108C 1996-08 → 1998-08 Figure 171856B 171856B 1998-08 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17453 Clamp, Exhaust Pipe, NO.2
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17581A Damper, Exhaust Pipe
17584A Stopper, Exhust Pipe, NO.1
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
17596A Protector, Exhaust Pipe, Lower NO.4
17597A Protector, Exhaust Pipe, Lower NO.5
17598 Protector, Exaust Pipe, Lower NO.6
18435A Protector, Monolithic Converter
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
