Toyota Carina FF
1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan
Discontinued model
Data version 2002-04
Distributor

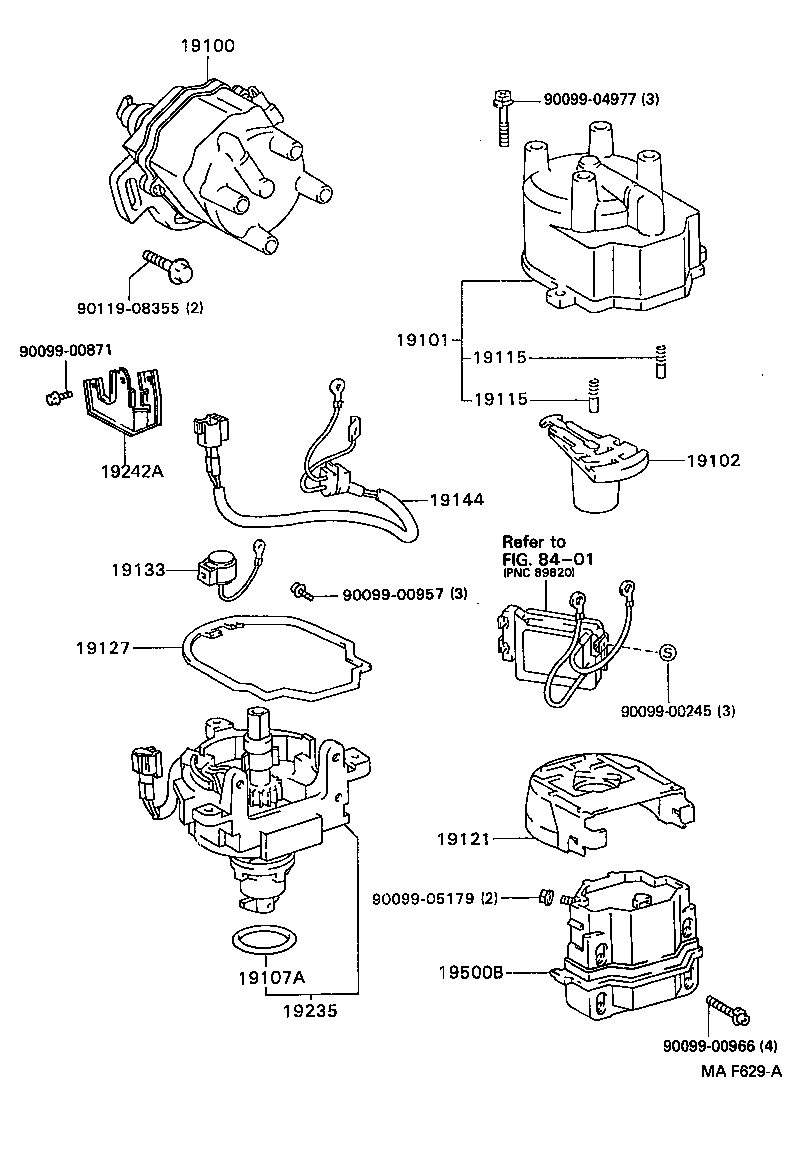

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100 | Distributor Assy |
| 19101 | Cap Sub-assy, Distributor |
| 19102 | Rotor Sub-assy, Distributor |
| 19107A | Ring, O, Distributor Housing |
| 19115 | Piece, Distributor Cap, Center |
| 19121 | Cover, Dust Proof |
| 19127 | Packing, Dust Proof |
| 19133 | Condenser, Distributor |
| 19144 | Lead, Distributor Breaker |
| 19235 | Housing, Distributor |
| 19242A | Clamp, Cord, NO.2 |
| 19500B | Coil Assy, Ignition |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
