Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 4 illustrations

Illustrations

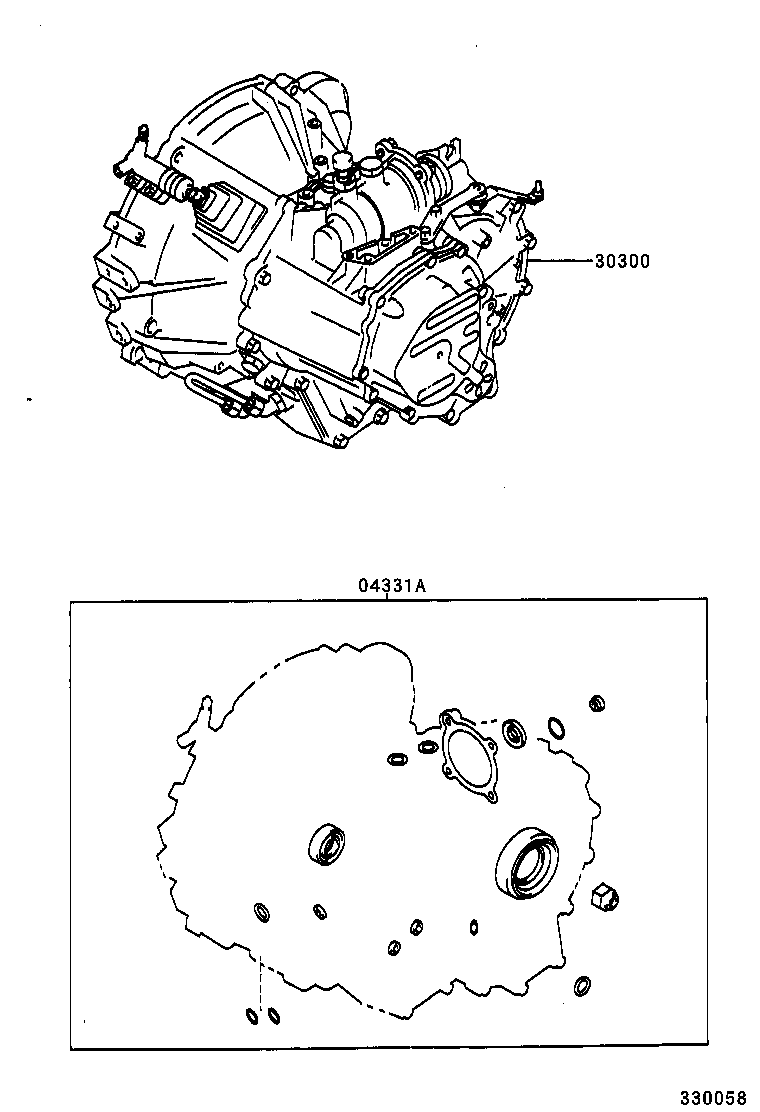

Figure 330057 330057 1996-08 → — Figure 330058 330058 1996-08 → 1998-08 Figure 330059 330059 1996-08 → — Figure 330059 330059 1998-08 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
