Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

5 part groups · 3 illustrations

Illustrations

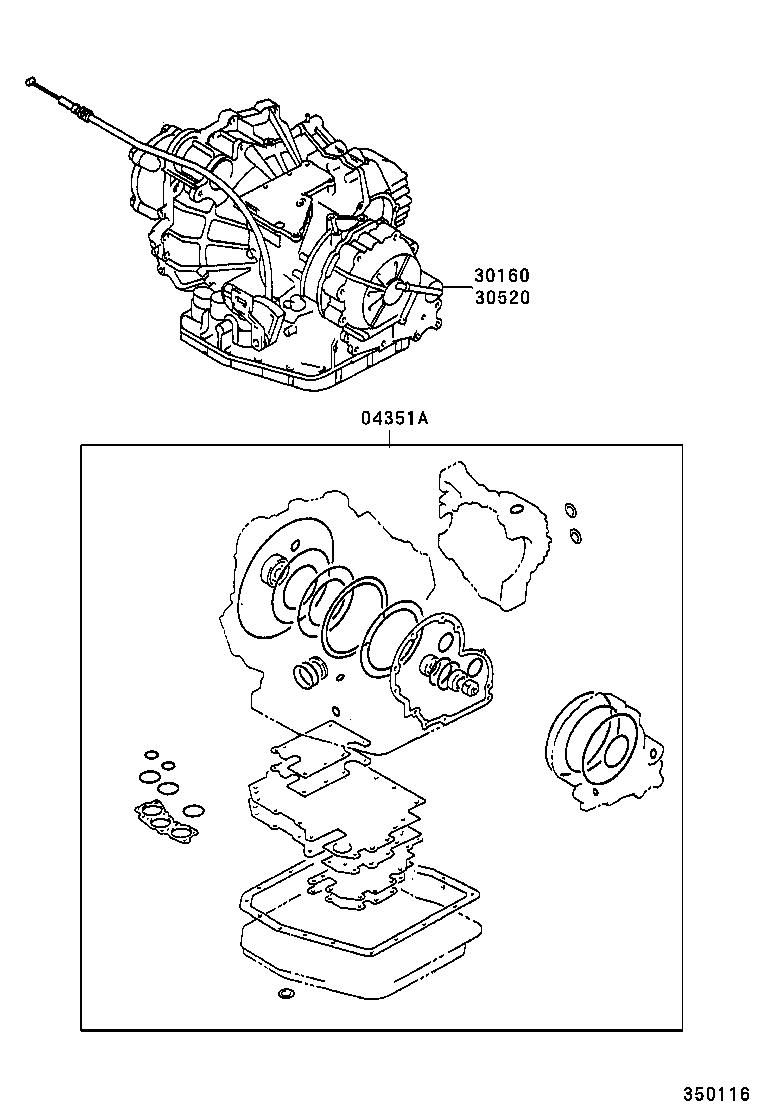

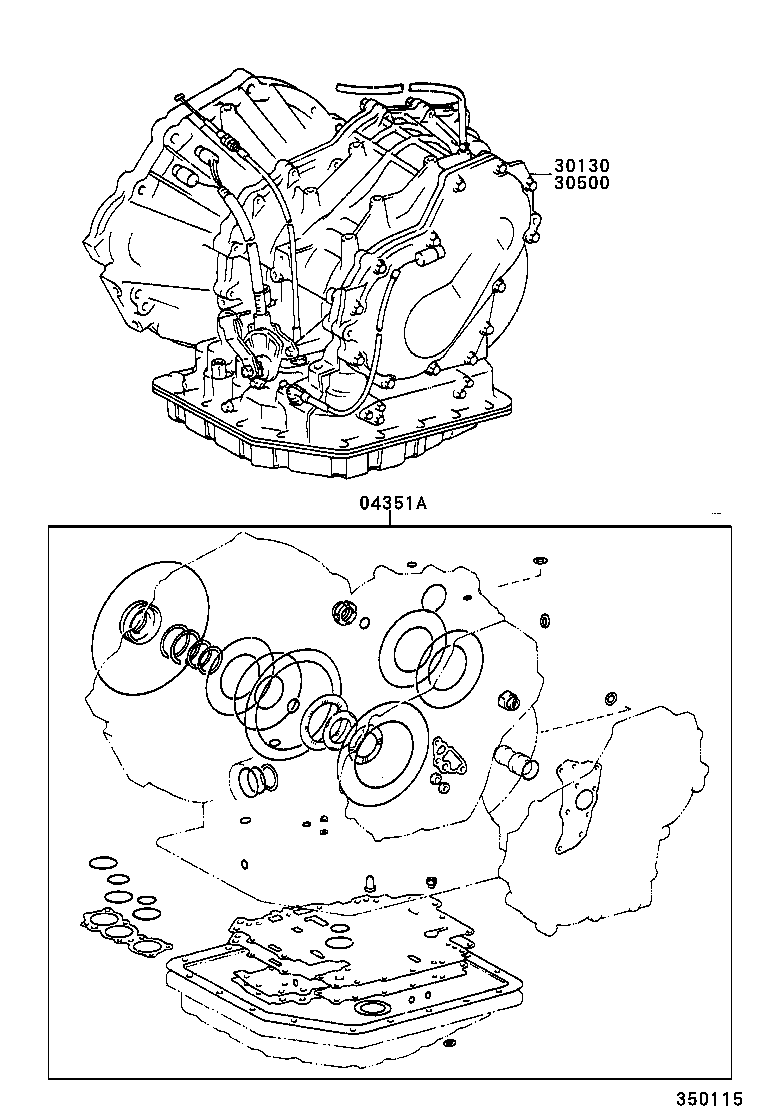

Figure 350114 350114 1996-08 → — Figure 350115 350115 1996-08 → — Figure 350116 350116 1996-08 → 1998-08

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30160 Transaxle Assy, Automatic W/Transfer, Rebuilt
30500 Transaxle Assy, Automatic
30520 Transaxle Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
