Toyota Carina FF
1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan
Discontinued model
Data version 2002-04
Transfer Case & Extension Housing

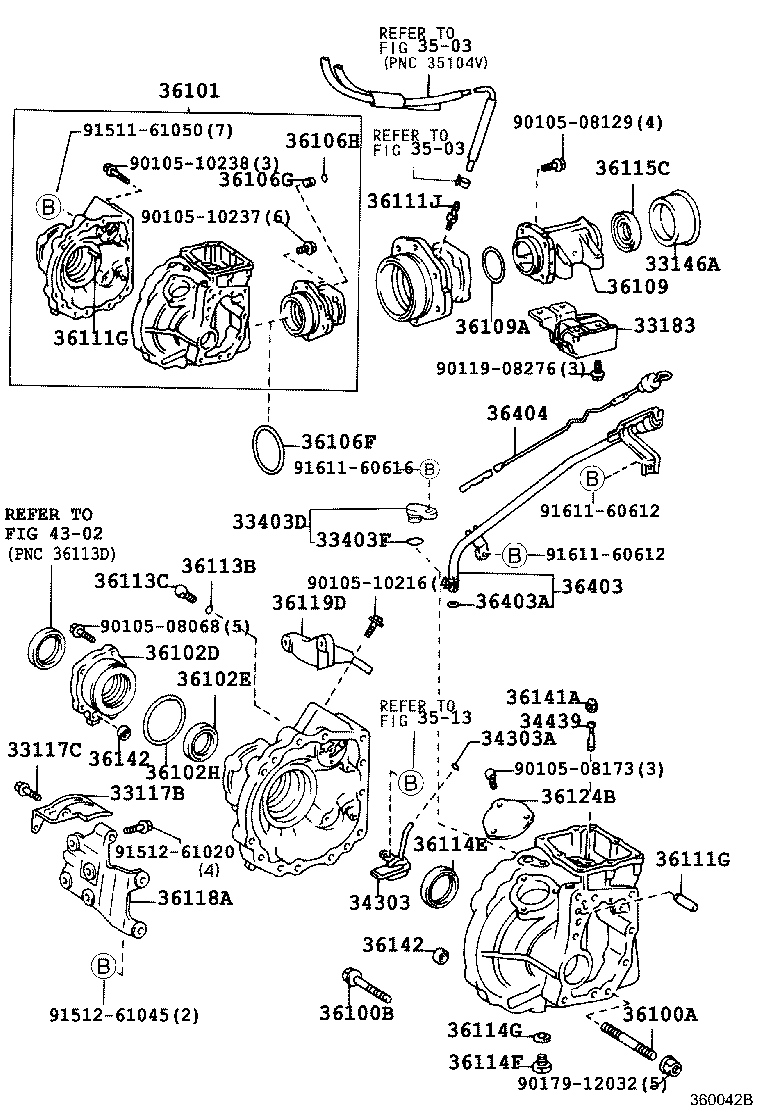

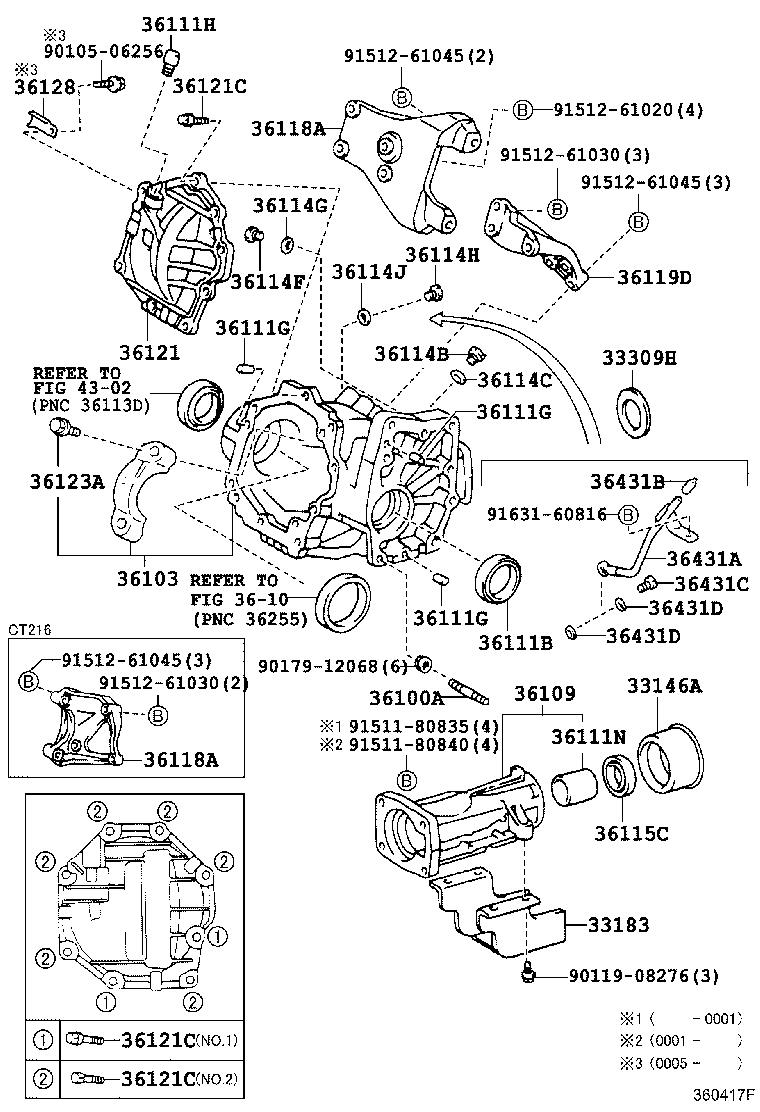

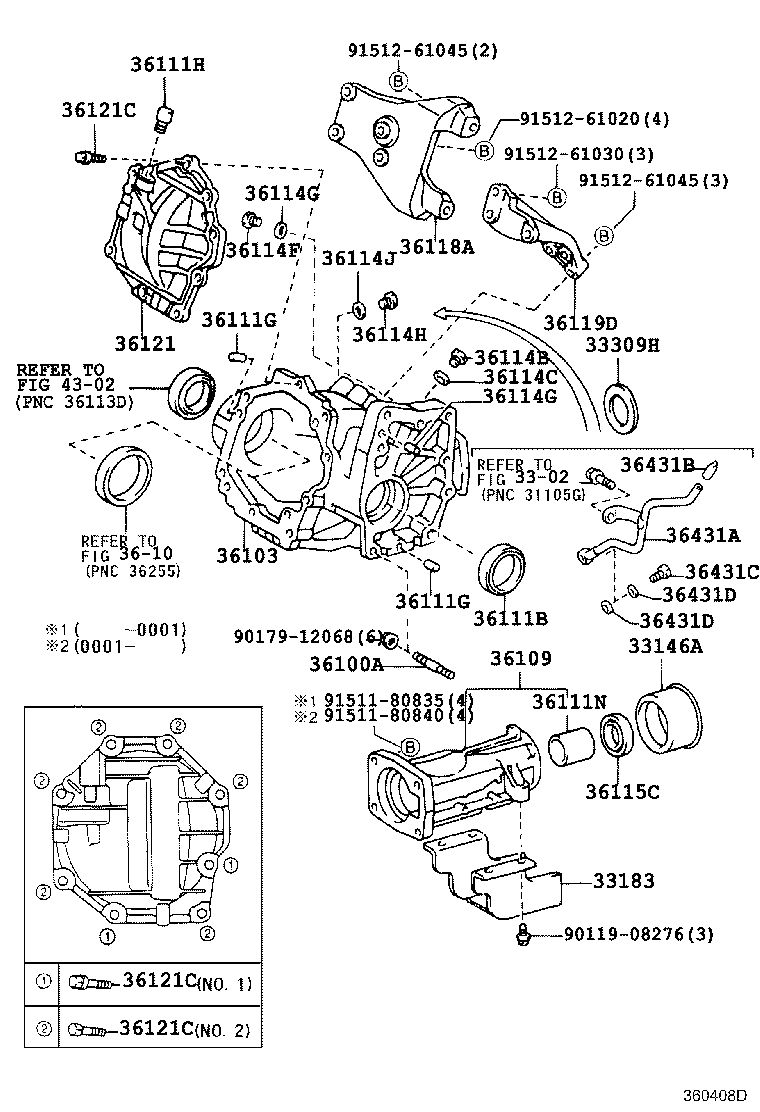

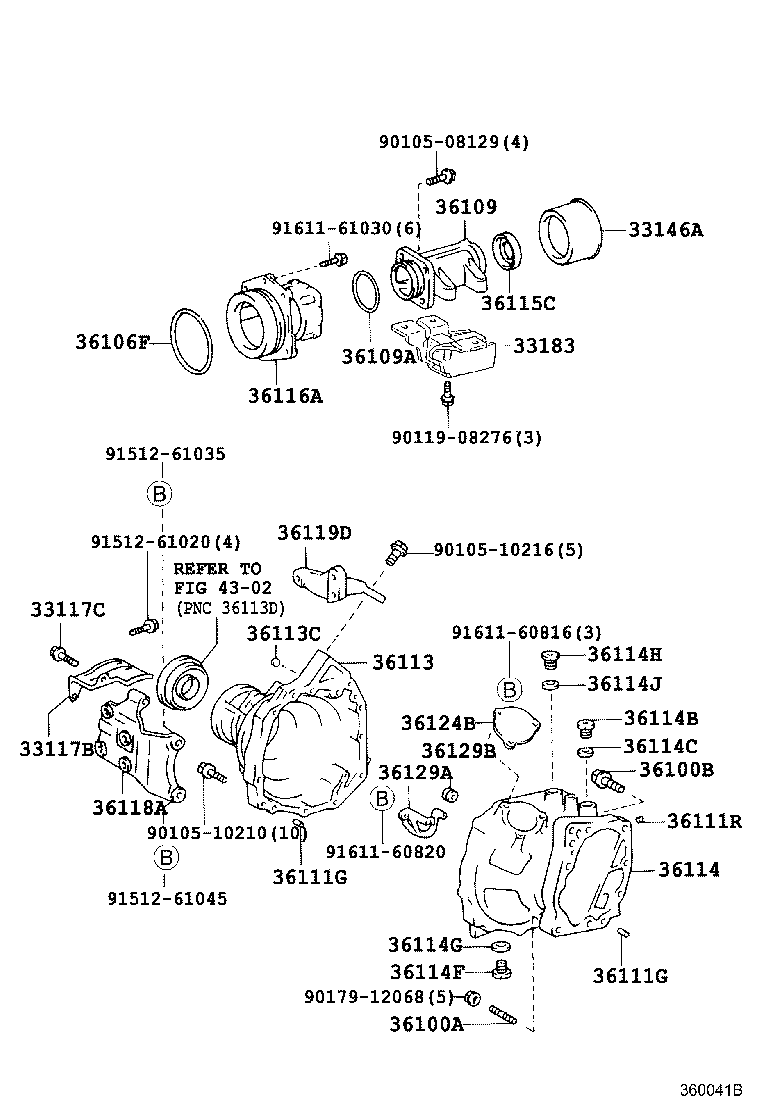

60 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33117B | Protector, Transfer Case |
| 33117C | Bolt(FOR TRANSFER CASE PROTECTOR) |
| 33146A | Deflector, Transfer Extension Housing Dust |
| 33183 | Damper, Transfer Dynamic |
| 33309H | Washer, Transfer Output Shaft |
| 33403D | Cover Sub-assy, Speedometer Driven Hole |
| 33403F | Ring,O (FOR SPEEDOMETER DRIVEN HOLE COVER) |
| 34303 | Strainer Sub-assy, Transfer Oil |
| 34303A | Ring, O (FOR TRANSFER OIL STRAINER) |
| 34439 | Strainer, Transfer Valve Body |
| 36100A | Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING) |
| 36100B | Bolt (FOR TRANSFER & TRANSAXLE SETTING) |
| 36101 | Case Sub-assy, Transfer |
| 36102D | Retainer Sub-assy, Transfer RH Bearing |
| 36102E | Seal, Oil, NO.1 (FOR TRANSFER RH BEARING RETAINER) |
| 36102H | Ring, O (FOR TRANSFER RH BEARING RETAINER) |
| 36103 | Case Sub-assy, Transfer |
| 36106F | Ring, O (FOR TRANSFER PINION BEARING CAGE) |
| 36106G | Plug, Straight (FOR TRANSFER PINION BEARING CAGE) |
| 36106H | Plug, O (FOR TRANSFER PINION BEARING CAGE PLUG) |
| 36109 | Housing Sub-assy, Transfer Extension |
| 36109A | Ring, O (FOR TRANSFER EXTENSION HOUSING) |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 36111H | Plug, Breather (FOR TRANSFER CASE) |
| 36111J | Union, Breather, NO.1 (FOR TRANSFER) |
| 36111N | Bush (FOR TRANSFER CASE) |
| 36111R | Plug, Tight (FOR TRANSFER CASE) |
| 36113 | Case, Transfer, RH |
| 36113A | Seal, Oil (FOR TRANSFER CASE RH) |
| 36113B | Ring, O (FOR TRANSFER CASE PLUG) |
| 36113C | Plug (FOR TRANSFER CASE) |
| 36114 | Case, Transfer, LH |
| 36114B | Plug, NO.1 (FOR TRANSFER CASE) |
| 36114C | Gasket, NO.1 (FOR TRANSFER CASE) |
| 36114E | Seal, Oil (FOR TRANSFER CASE LH) |
| 36114F | Plug (FOR TRANSFER DRAIN) |
| 36114G | Gasket (FOR TRANSFER DRAIN PLUG) |
| 36114H | Plug, NO.2 (FOR TRANSFER CASE) |
| 36114J | Gasket, NO.2 (FOR TRANSFER CASE) |
| 36115C | Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) |
| 36116A | Cage, Transfer Pinion Bearing |
| 36118A | Plate, Transfer Stiffener, RH |
| 36119D | Plate, Transfer Stiffener, Center |
| 36121 | Cover, Transfer Case, NO.1 |
| 36121C | Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER) |
| 36123A | Bolt, Differential Bearing Cap |
| 36124B | Cover, Transfer Inspection Hole |
| 36128 | Deflector, Breather Oil |
| 36129A | Tube, Transfer Oil |
| 36129B | Cushion (FOR TRANSFER OIL TUBE) |
| 36141A | Gasket, Transfer Case |
| 36142 | Gasket, Transfer Cover |
| 36403 | Tube Sub-assy, Transfer Oil Filler |
| 36403A | Ring, O (FOR TRANSFER OIL FILLER TUBE) |
| 36404 | Gage Sub-assy, Transfer Oil Level |
| 36431A | Tube, Transfer Oil Filler |
| 36431B | Cap (TUBE,TRANSFER OIL FILLER) |
| 36431C | Bolt, Union (TUBE,TRANSFER OIL FILLER) |
| 36431D | Gasket (TUBE,TRANSFER OIL FILLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
