Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

7 part groups · 4 illustrations

Illustrations

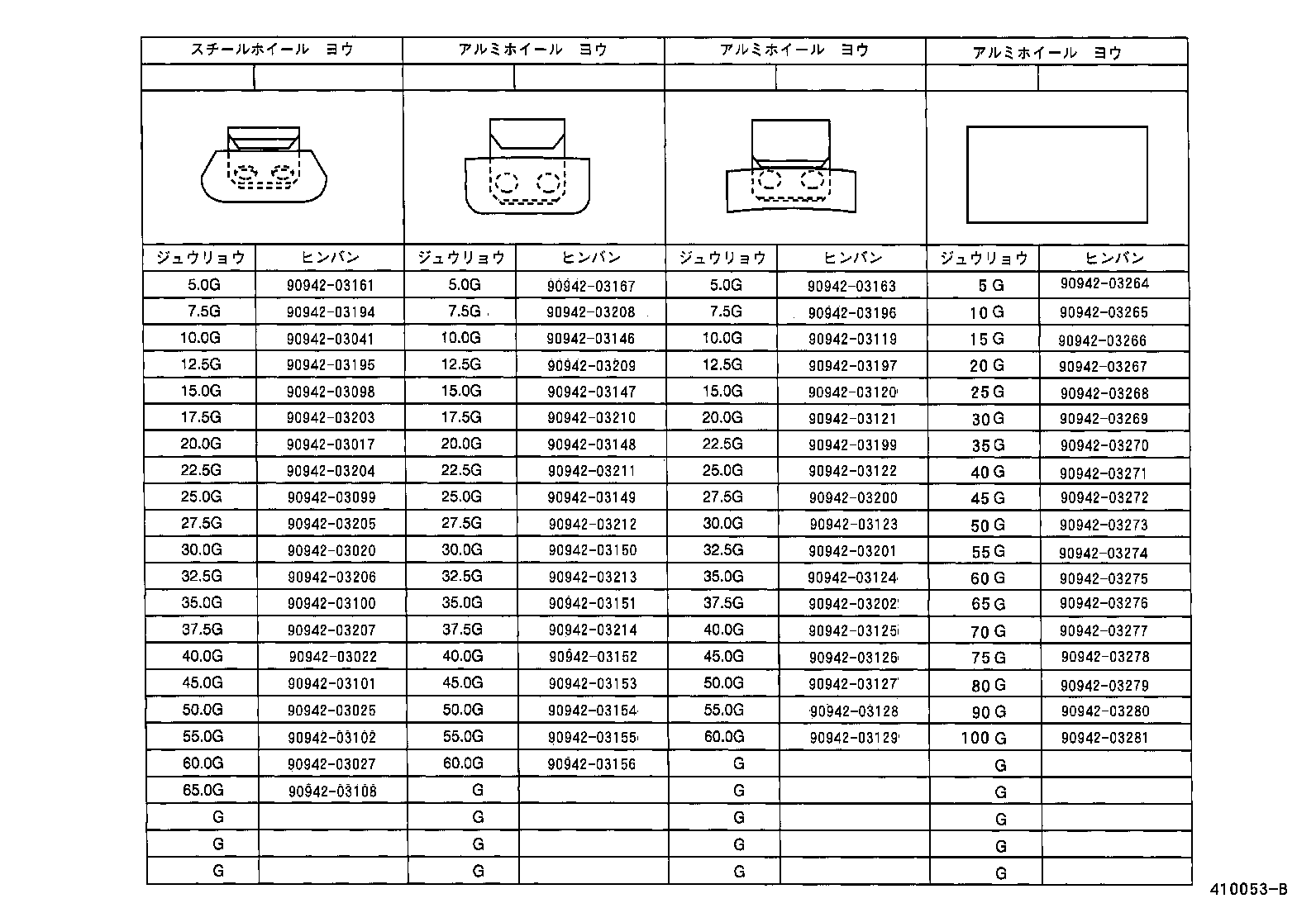

Figure 410051C 410051C 1996-08 → — Figure 410825B 410825B 1996-08 → — Figure 410052B 410052B 1996-08 → — Figure 410053B 410053B 1996-08 → —

Part groups

PNCDescription
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42621 Cap, Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
