Toyota Carina FF
1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan
Discontinued model
Data version 2002-04

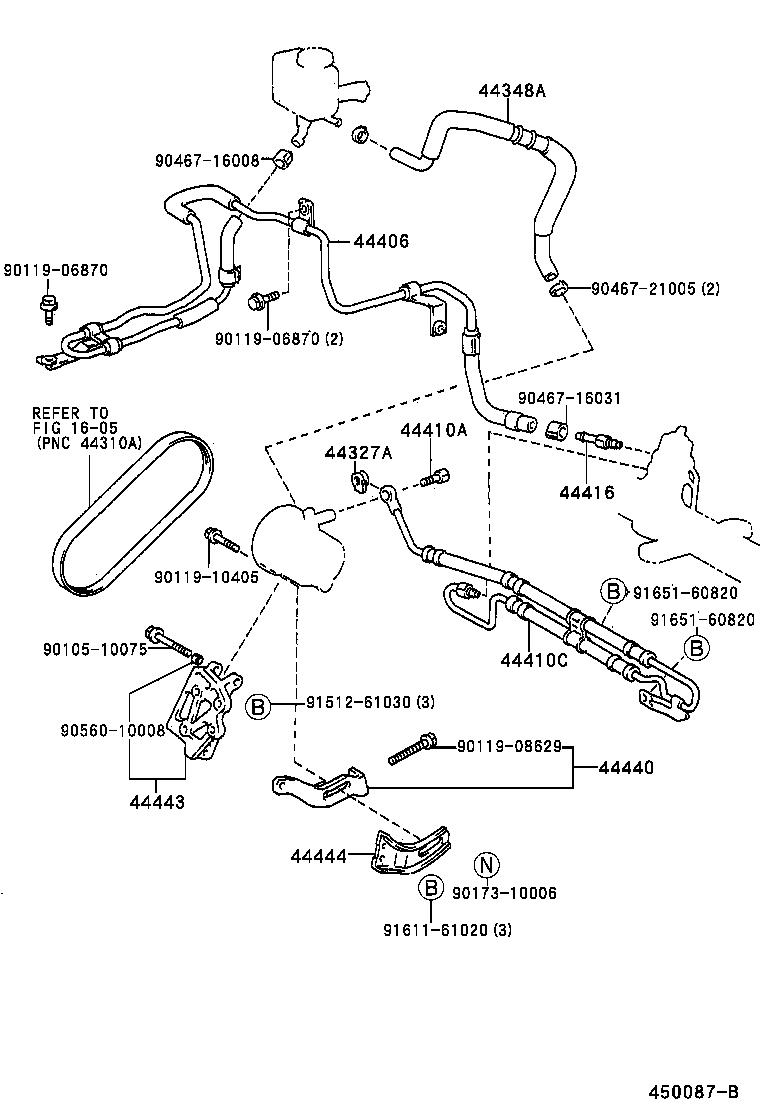

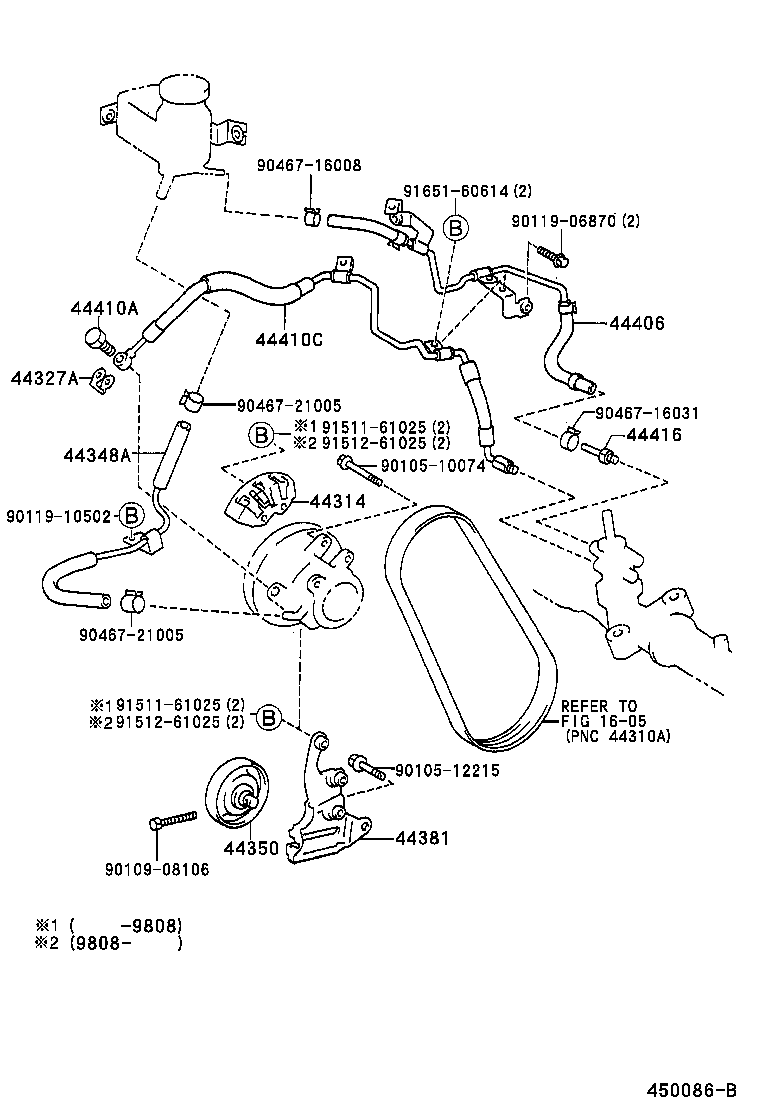

Power Steering Tube
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44314 | Cover, Pulley |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44381 | Bracket, Power Steering Idle Pulley |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410C | Tube Assy, Pressure Feed, NO.1 |
| 44412D | Hose, Return, NO.1 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44440 | Bracket Assy, Pump |
| 44443 | Bracket, Pump |
| 44444 | Stay, Pump, Rear |
| 44446 | Strut, Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
