Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

29 part groups · 3 illustrations

Illustrations

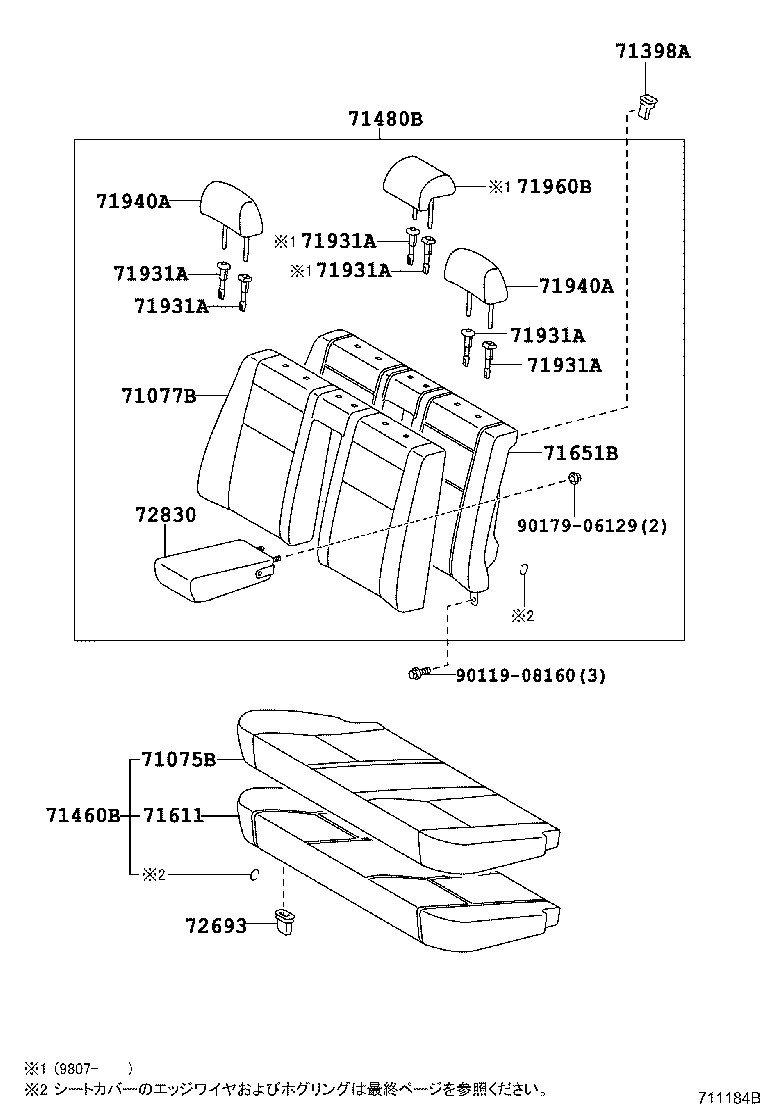

Figure 711185C 711185C 1996-08 → — Figure 711184B 711184B 1996-08 → — Figure 718165A 718165A 1996-08 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303 Hinge Sub-assy, Rear Seatback
71305A Hinge Sub-assy, Rear Seatback, Center
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480E Clip, Rear Seatback, RH
71490A Clip, Rear Seatback, LH
71540A Back Assy, Rear Side Seat, RH
71550A Back Assy, Rear Side Seat, LH
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71832A Clip, Rear Seatback Carpet OR Mat
71885C Clip(FOR REAR SEATBACK CARPET)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72868 Cover, Center Armrest Hinge, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
