Toyota Carina FF
1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan
Discontinued model
Data version 2002-04

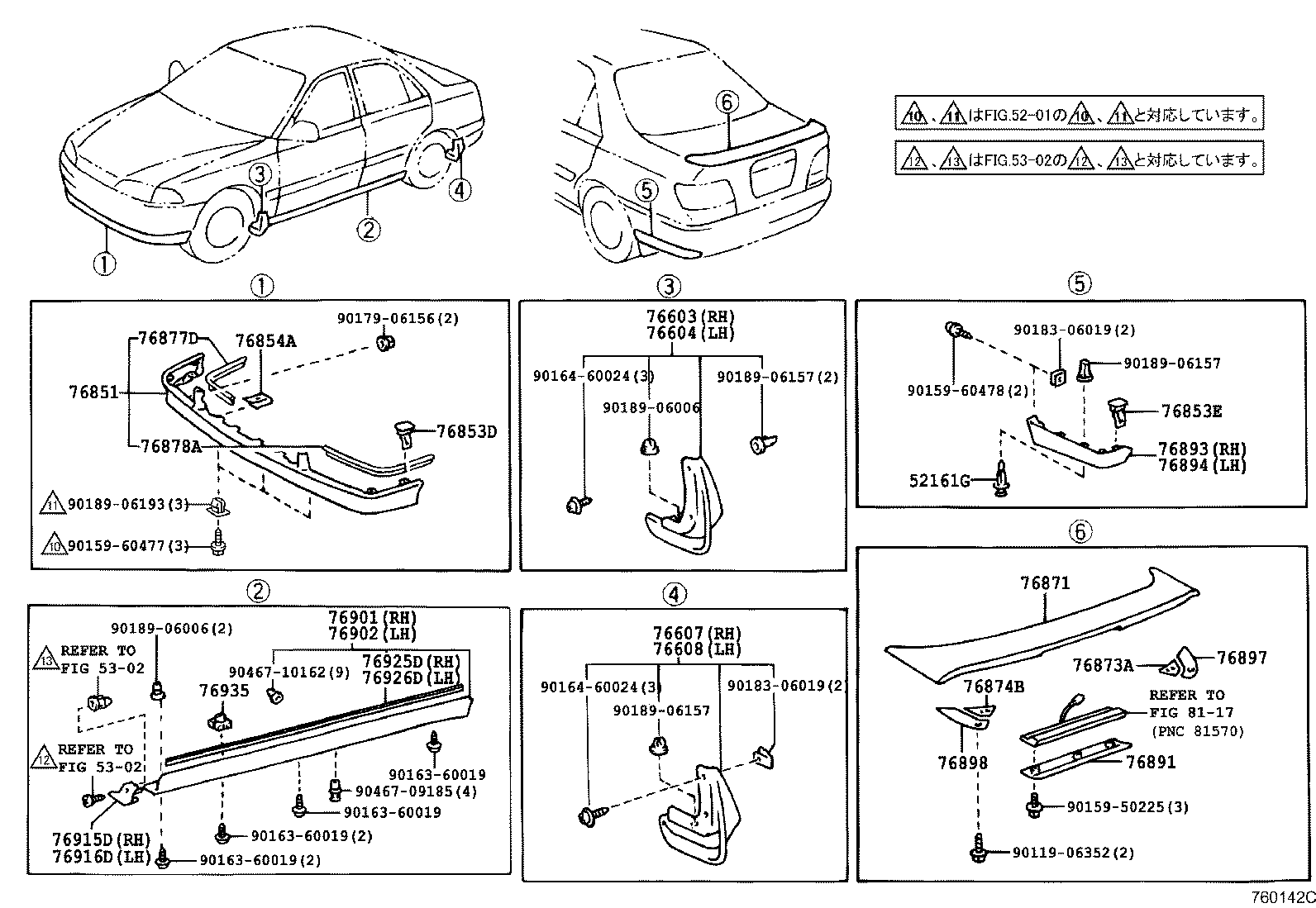

Mudguard & Spoiler
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161G | Piece, Rear Bumper |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
| 76851 | Cover, Front Spoiler |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853D | Retainer, Front Spoiler, NO.1 |
| 76853E | Retainer, Rear Spoiler, NO.1 |
| 76854A | Retainer, Front Spoiler, NO.2 |
| 76871 | Spoiler, Rear |
| 76873A | Protector, Rear Spoiler, RH |
| 76874B | Protector, Rear Spoiler, LH |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76891 | Spoiler, Rear NO.1 |
| 76893 | Cover, Rear Spoiler, NO.1 |
| 76894 | Cover, Rear Spoiler, LH |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76915D | Mudguard, Side, Front RH |
| 76916D | Mudguard, Side, Front LH |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
| 76935 | Retainer, Side Mudguard, NO.7 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
