Toyota Carina FF
1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan
Discontinued model
Data version 2002-04

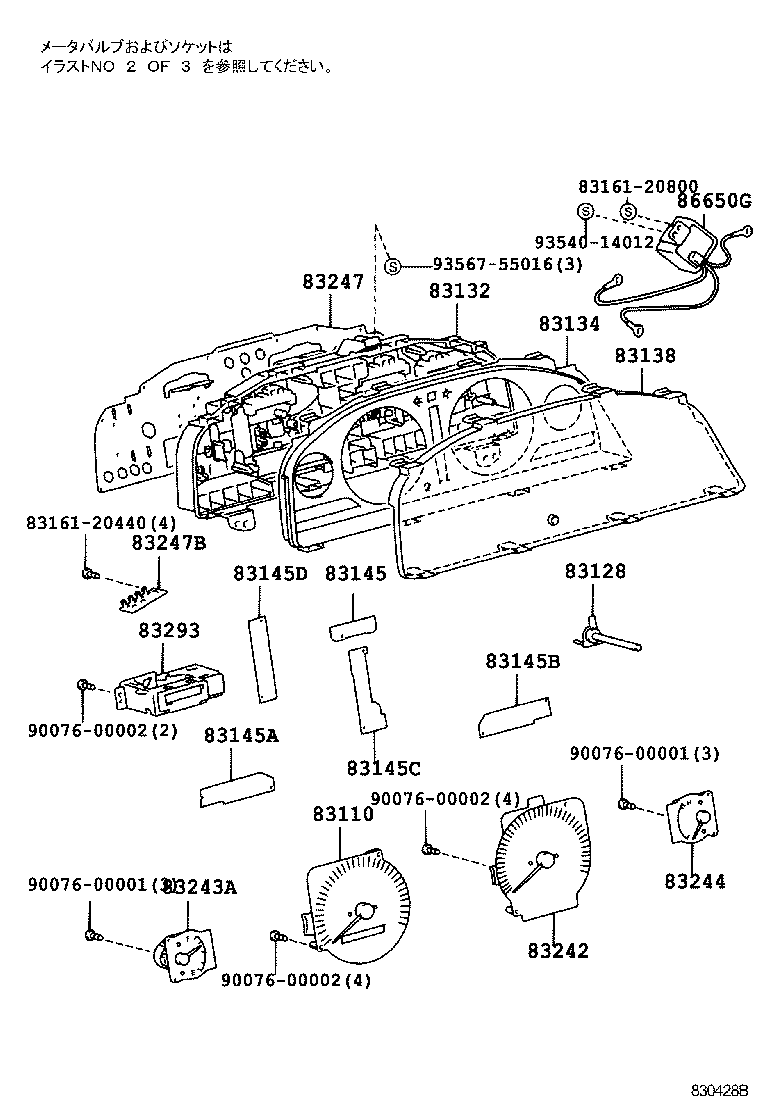

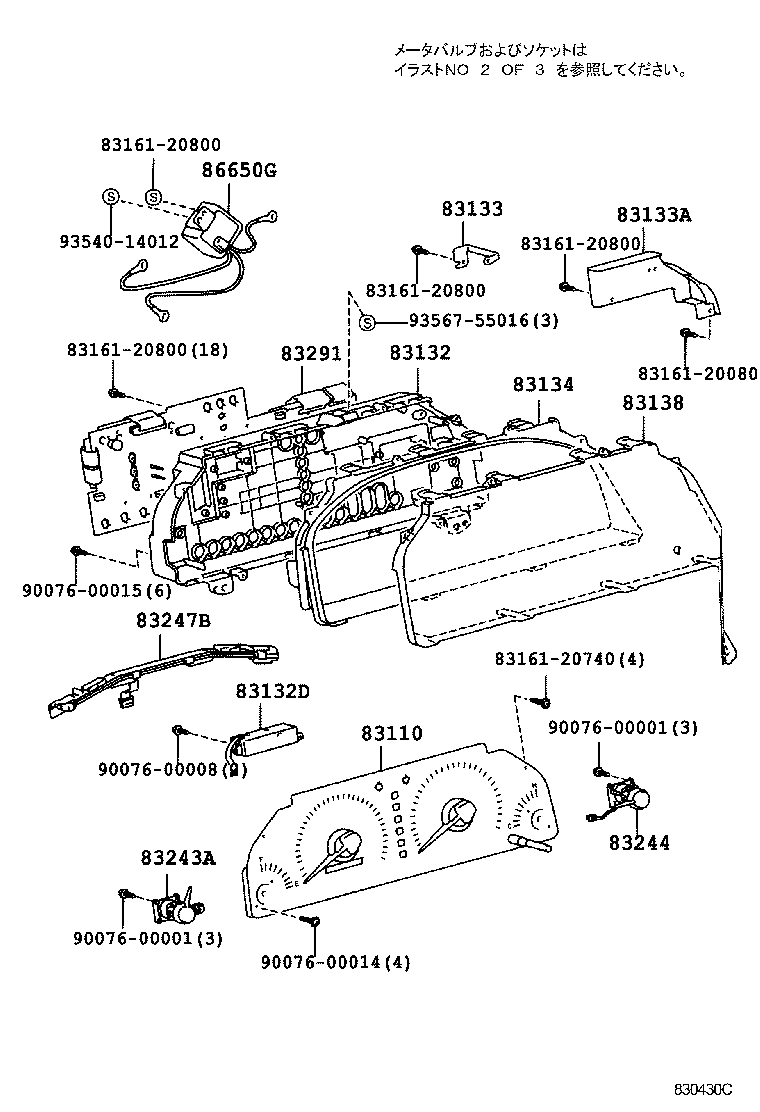

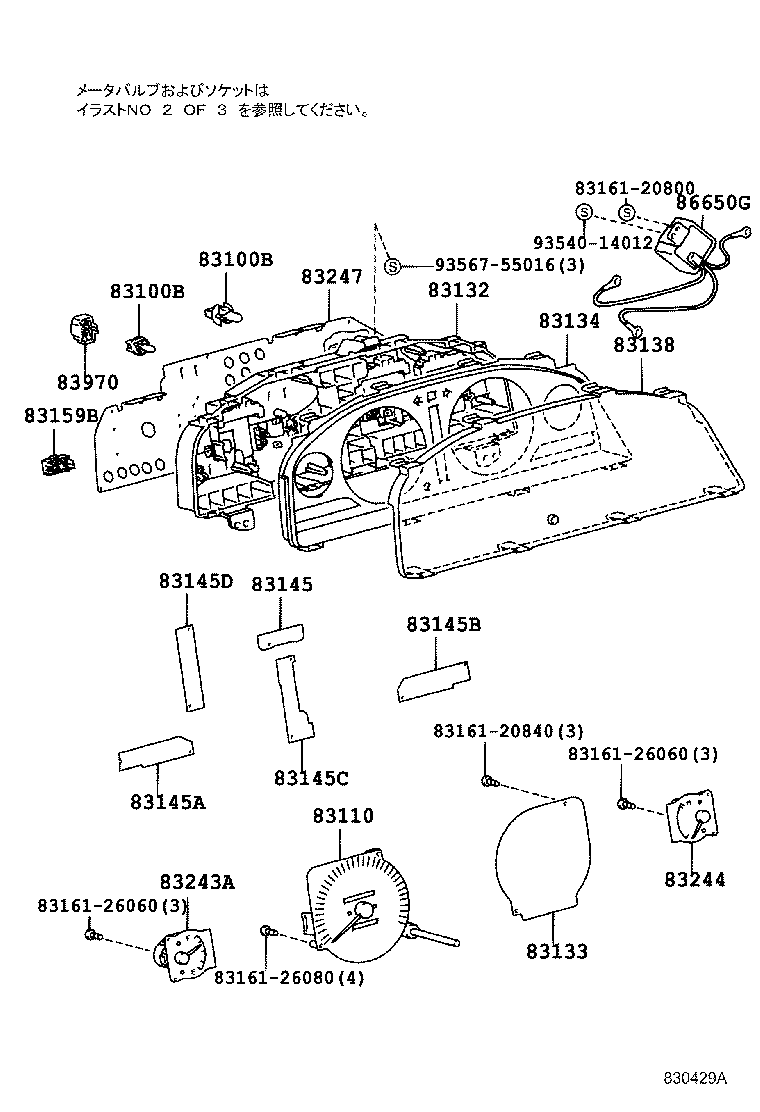

Meter
28 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|

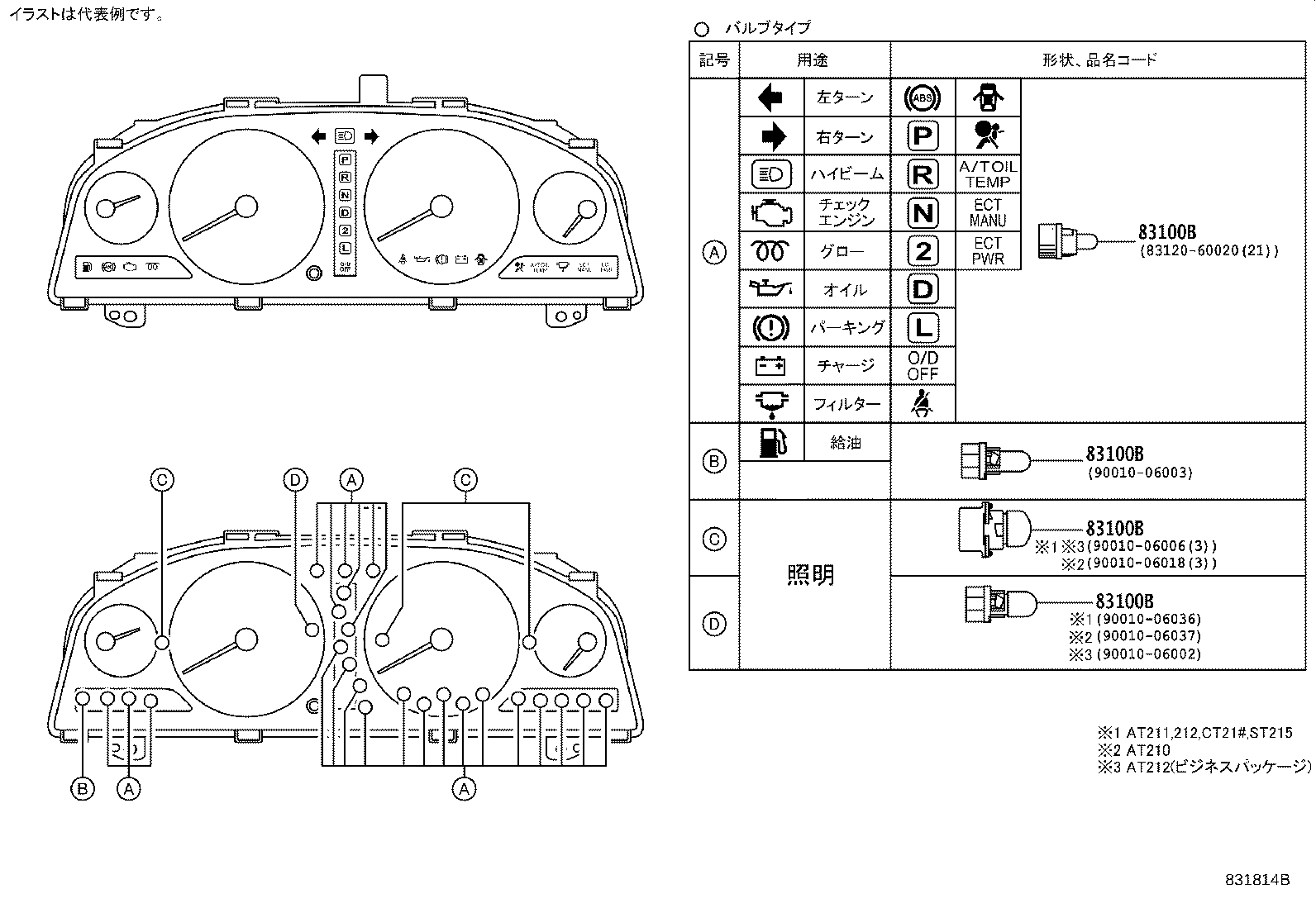

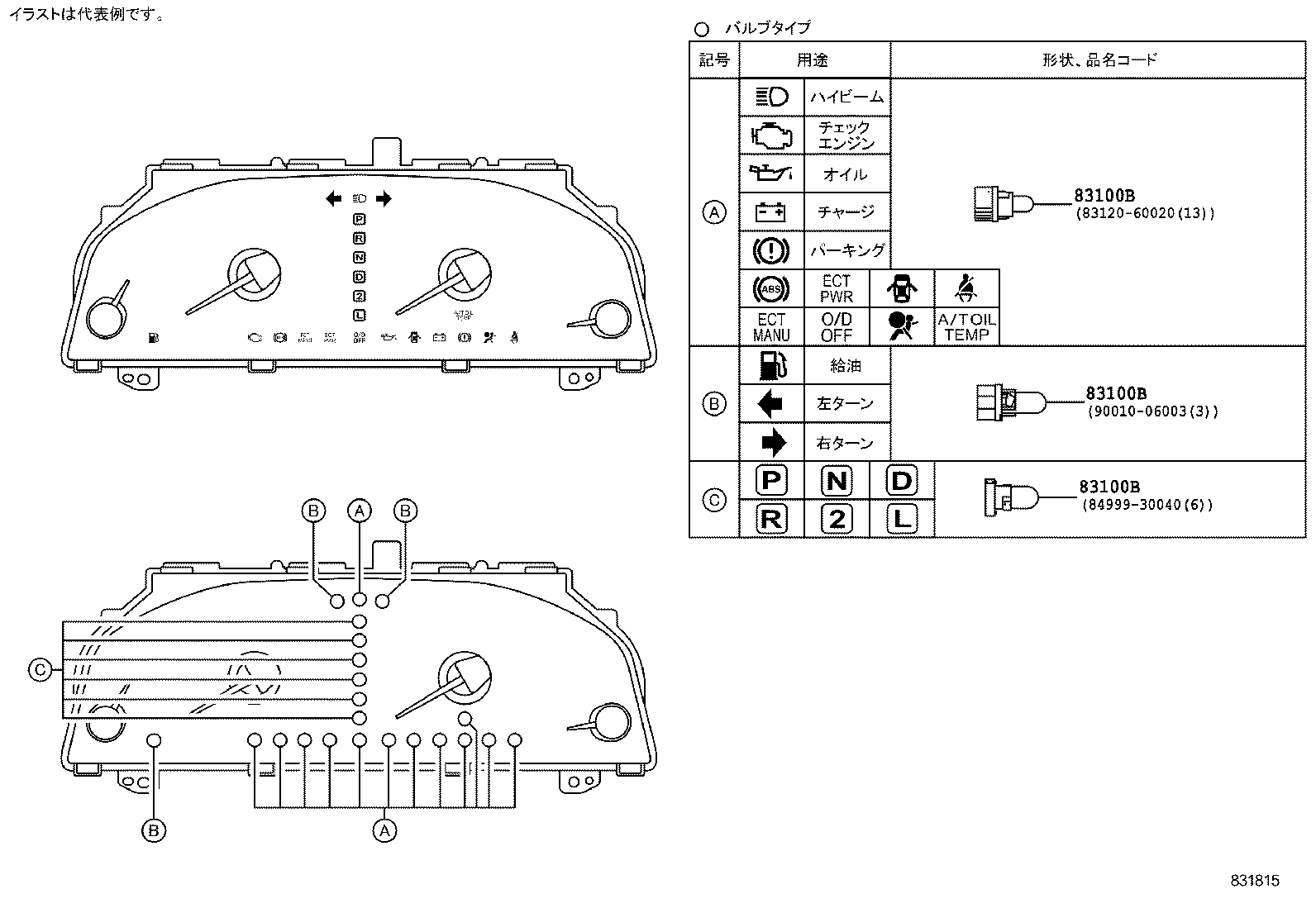

| 83100B | Bulb, Combination Meter, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83132D | Case, Combination Meter, NO.2 |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83159B | Relay Assy, Meter |
| 83180 | Detector Assy, Revolution |
| 83181A | Sensor, Speedometer |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83291 | Computer, Combination Meter |
| 83293 | Computer, Total Counter Module |

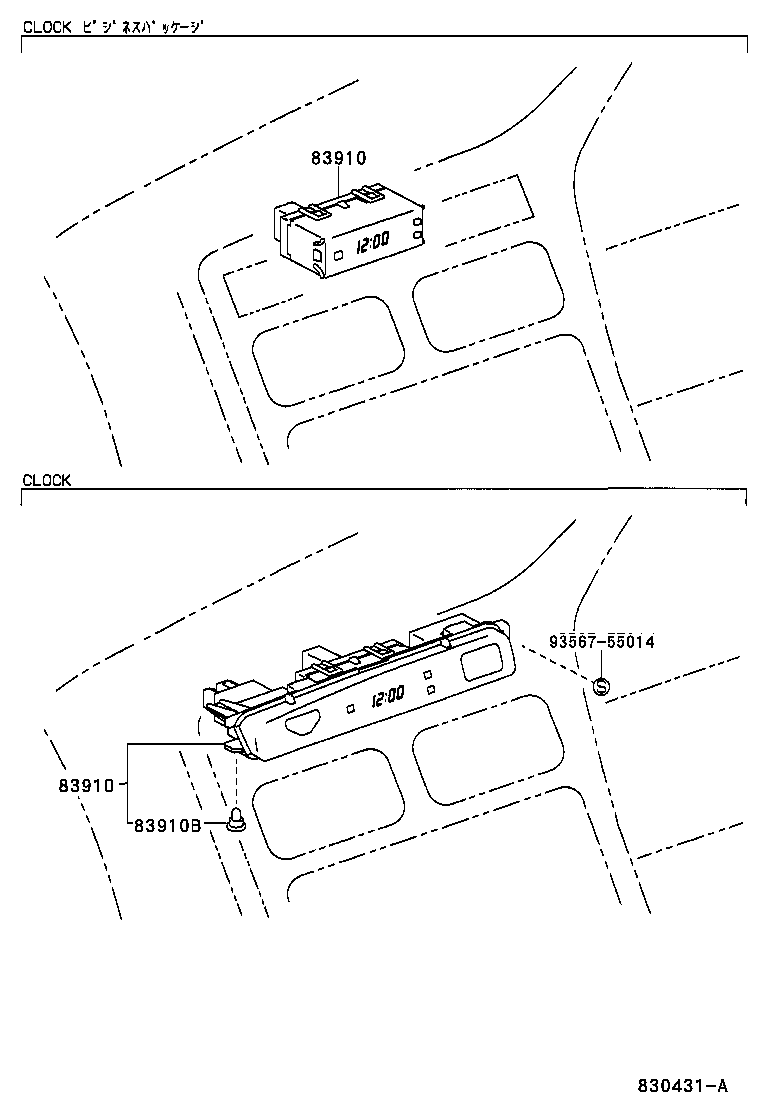

| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83970 | Buzzer Assy, Reverse Warning |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
