Toyota Carina FF
1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan
Discontinued model
Data version 2002-04

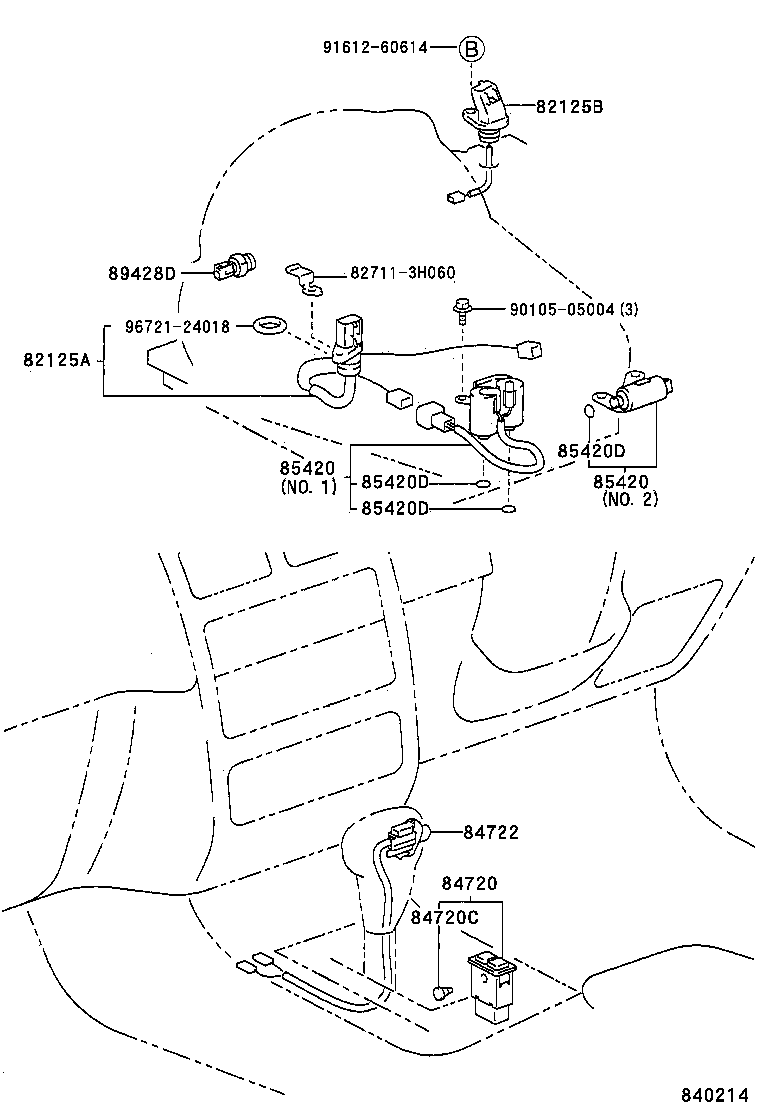

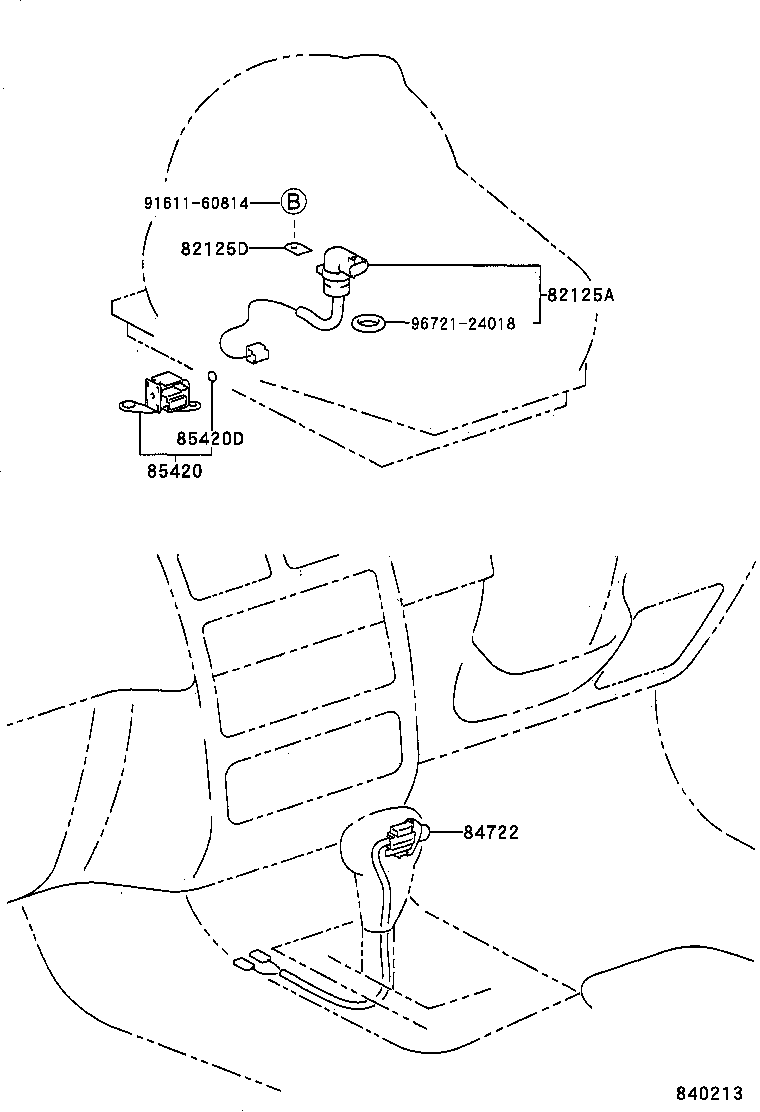

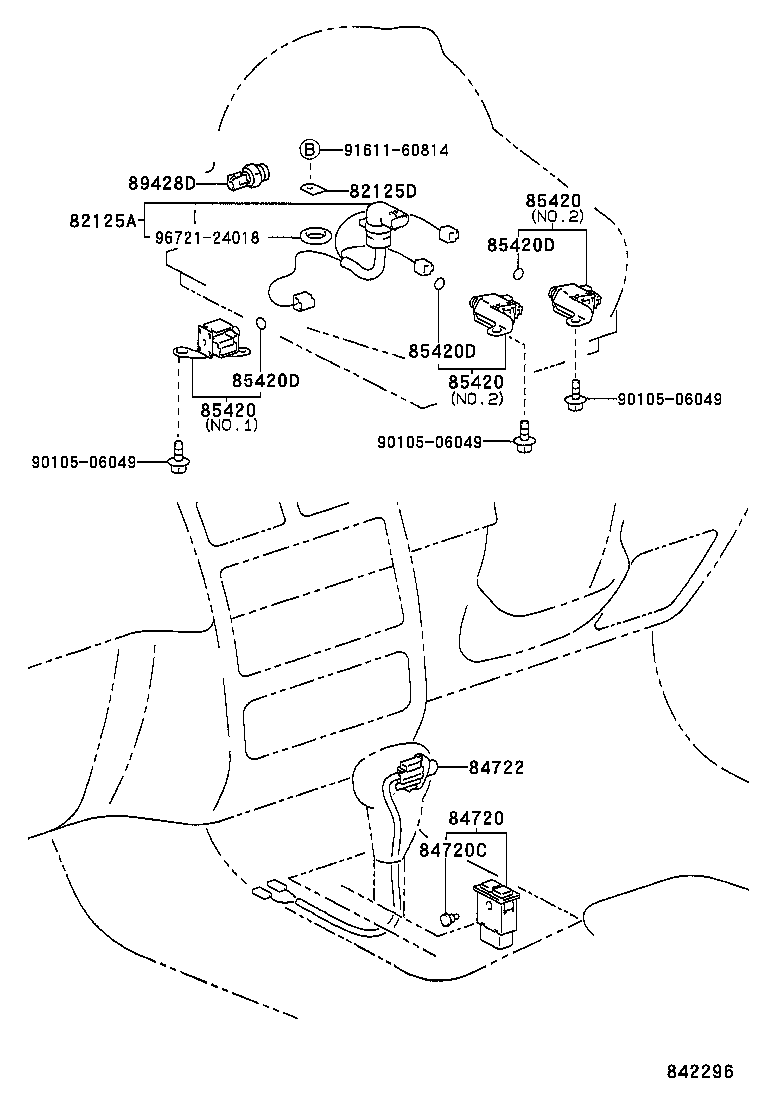

Overdrive & Electronic Controlled Transmission
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82125B | Wire, Transmission |
| 82125D | Plate, Transmission Wire Lock |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89413B | Sensor, Transmission Revolution |
| 89428D | Switch, Temperature, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
